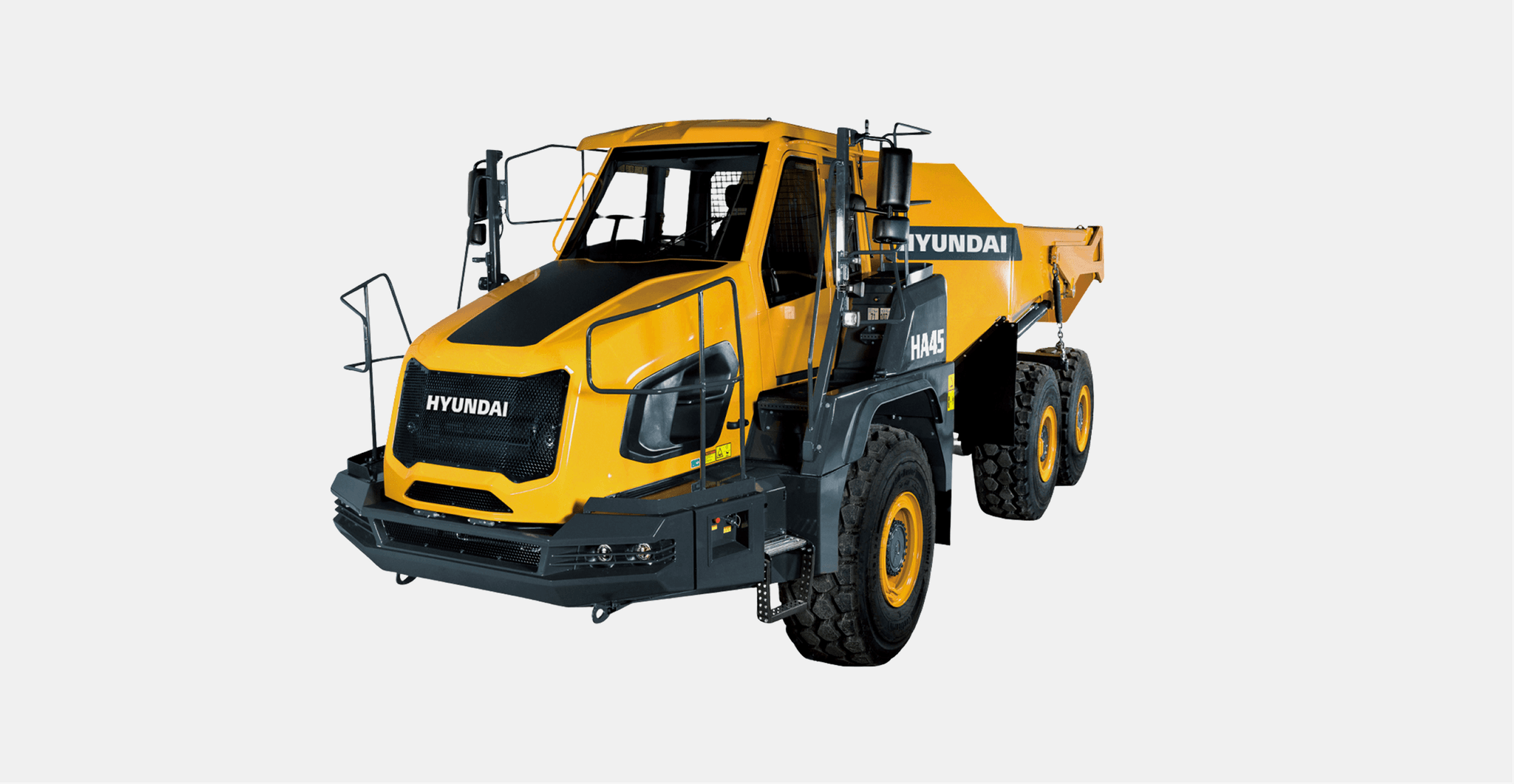

HA45
Operating Weight
30.1 ton
Rated Payload
41 ton
Emission
~TIER 2
Rated Power
500 hp / 2,100 rpm
Specifications
General
Heaped
24.4 m³
Rated Payload
41 ton
Operating Weight
30.1 ton
Rated Power
500 hp / 2100 rpm
Engine
Emission
~TIER 2
Max. Torque
2,373 kgf·m
Engine Model
Scania DC 13
Hydraulic System
Implement Circuit
285.3 ℓ/min
Main Pumps Rated Flow
294 ℓ/min
Tank Capacity
Fuel Tank
530 ℓ
Engine Oil
45 ℓ
Hydraulic Tank
100 ℓ
Performance
Travel Speed (forward, Maximum)
55 km/h
Travel Speed (reverse, Maximum)
17 km/h
Dimensions
Overall Width
3,990 mm
Overall Height
3,850 mm
Overall Length
10,700 mm
Inner Turning Radius
4,220 mm
Outer Turning Radius
8,920 mm
Outer Wheel Turning Radius
8,880 mm
- -These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog.
- -The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
