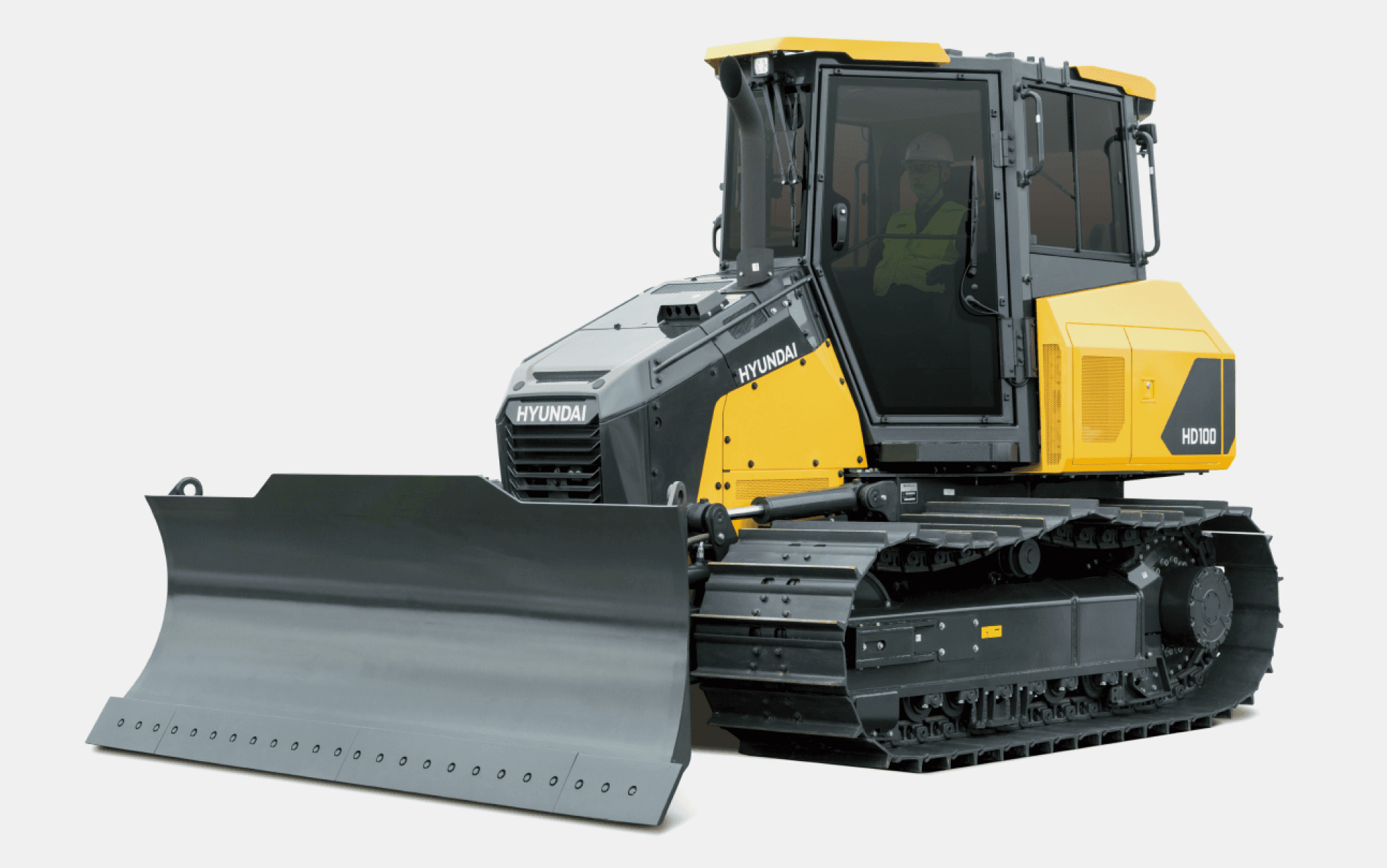

HD100
Operating Weight
10.7 ton
Emission
STAGE V
Rated Power
122 hp / 2,200 rpm
Blade Width
2,770 mm
Specifications
General
Bucket Capacity
2.58 m³
Operating Weight
10.7 ton
Rated Power
122 hp / 2200 rpm
Engine
Emission
STAGE V
Max. Torque
54.045 kgf·m / 1,400 rpm
Engine Model
G2 DM03-LED00
Hydraulic System
Type
VARIABLE DISPLACEMENT
System Pressure
265 kgf/cm²
Implement Maximum Flow Rate
104 ℓ/min
Tank Capacity
Fuel Tank
190 ℓ
Engine Oil
14.6 ℓ
Hydraulic Tank
74 ℓ
Dimensions
Blade Width
2,770 mm
Track Gauge
1,890 mm
Digging Depth
466 mm
Overall Height
2,900 mm
Overall Length
5,620 mm
Ground Clearance
200 mm
Maximum Blade Angle
25 deg
Overall Track Length
3,570 mm
- -These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog.
- -The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
