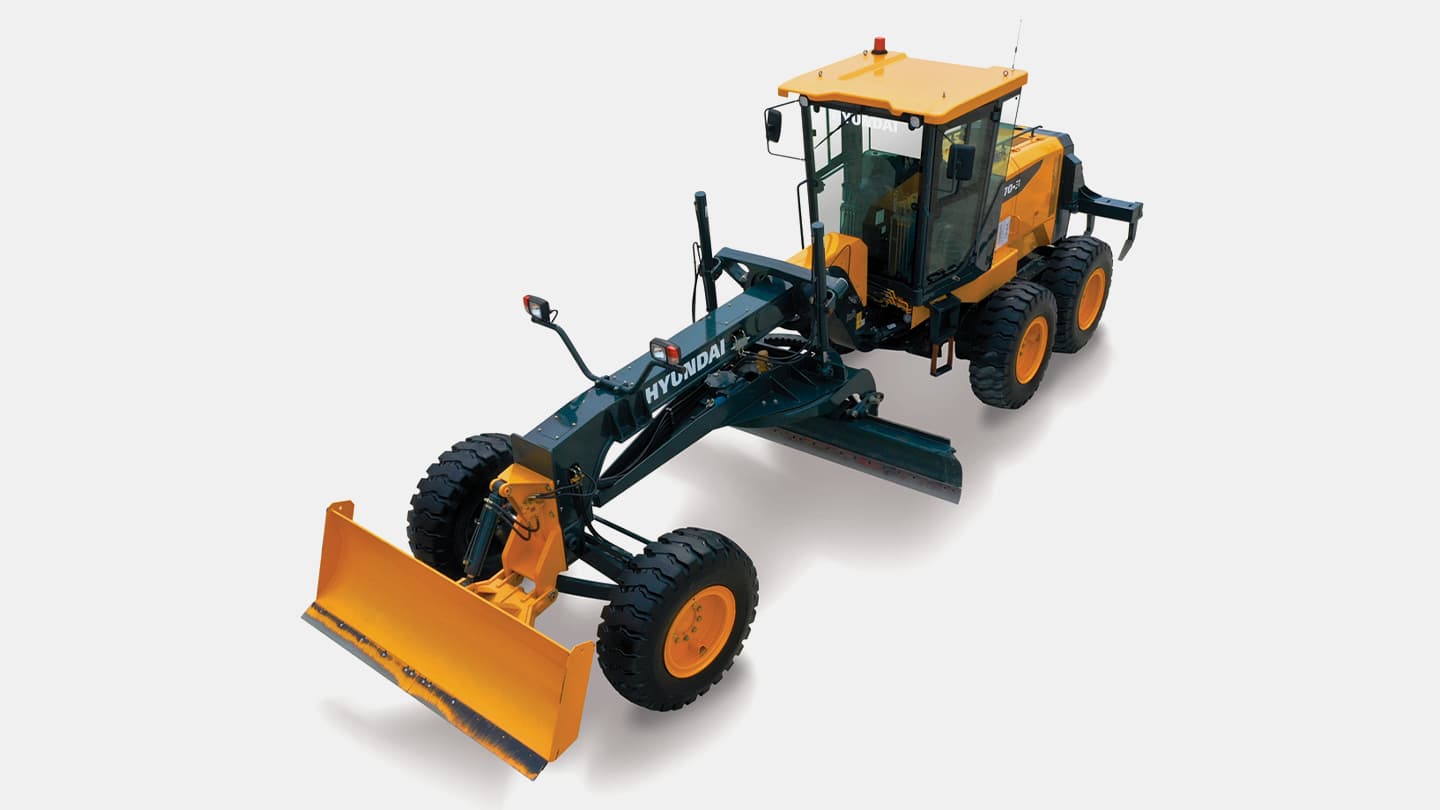

HG170
Operating Weight
14.5 ton
Emission
~TIER 2
Moldboard
3,660 mm
Rated Power
177 hp / 2,200 rpm
Specifications
General
Blade Length
3,660 mm
Operating Weight
14.5 ton
Rated Power
177 hp / 2200 rpm
Engine
Emission
~TIER 2
Max. Torque
750 Nm / 1,300 rpm
Engine Model
Cummins 6BTA5.9-C180
Hydraulic System
Implement Circuit
178.45 kgf/cm²
Main Pumps Rated Flow
99 ℓ/min
Tank Capacity
Fuel Tank
370 ℓ
Hydraulic Tank
65 ℓ
Performance
Travel Speed Forward
49.2 km/h
Travel Speed Reverse
30 km/h
Dimensions
Moldboard
3,660 mm
Overall Width
3,660 mm
Overall Height
3,420 mm
Overall Length
8,820 mm
Ground Clearance
339 mm
Tire
Rear Tires STD
17.5/25-12
Front Tires STD
17.5/25-12
- -These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog.
- -The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
