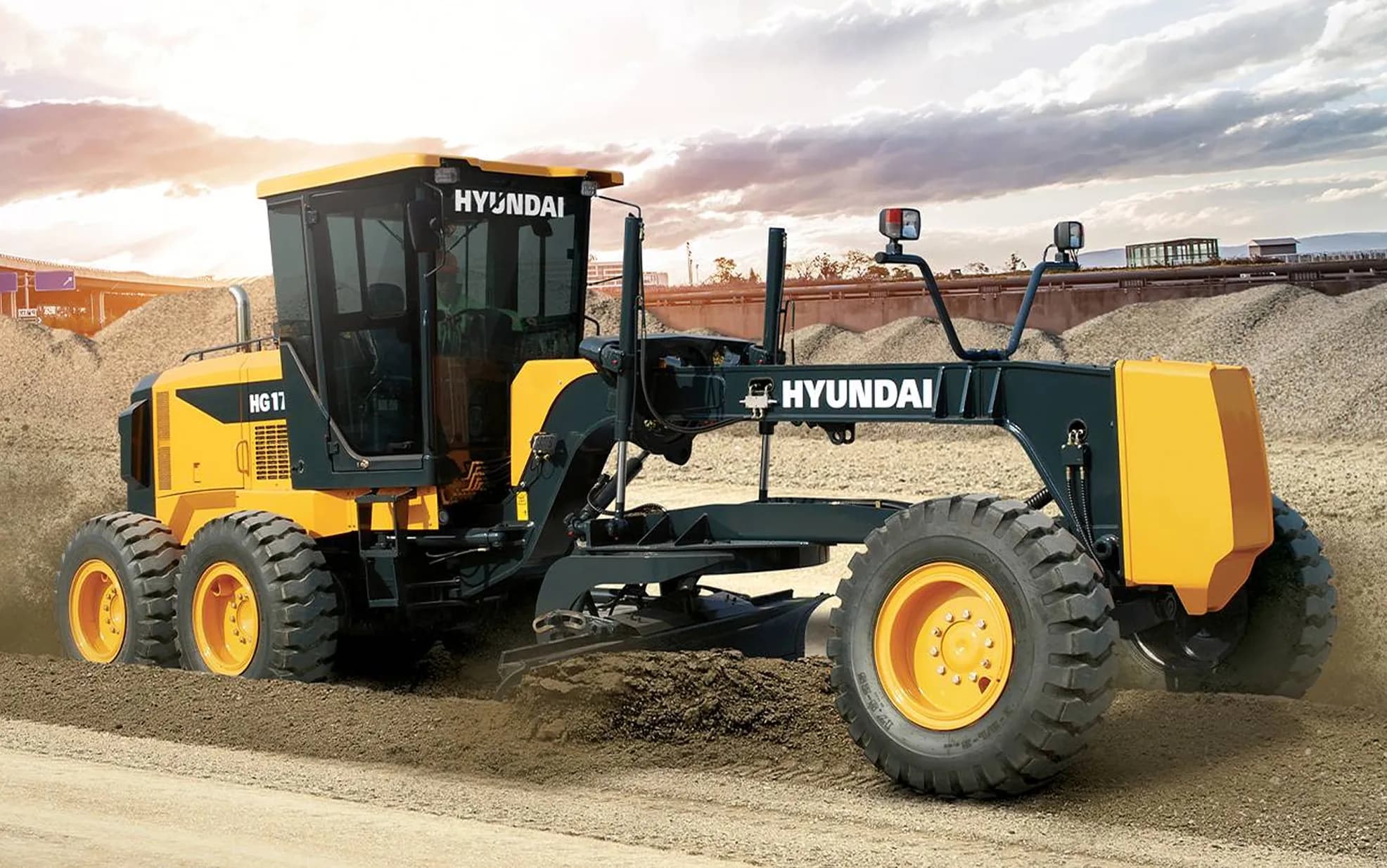

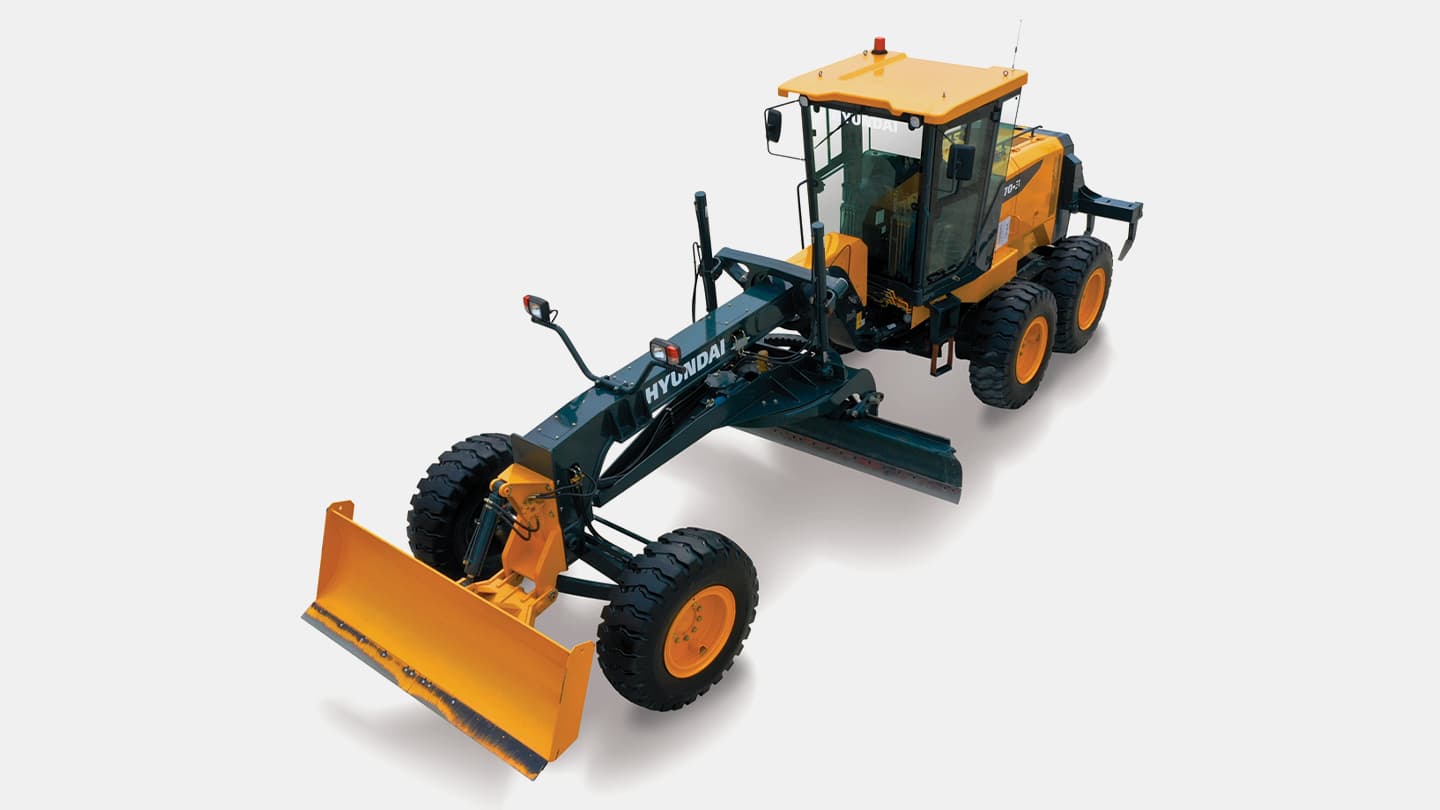

HG220
Operating Weight
15.3 ton
Emission
~TIER 2
Moldboard
4,320 mm
Rated Power
214 hp / 2,200 rpm
Specifications
General
Blade Length
4,320 mm
Operating Weight
15.3 ton
Rated Power
214 hp / 2200 rpm
Engine
Emission
~TIER 2
Max. Torque
908 Nm / 1,500 rpm
Engine Model
Cummins 6CTA8.3-C215
Hydraulic System
Implement Circuit
178.45 kgf/cm²
Main Pumps Rated Flow
99 ℓ/min
Tank Capacity
Fuel Tank
370 ℓ
Hydraulic Tank
65 ℓ
Performance
Travel Speed Forward
52.7 km/h
Travel Speed Reverse
33.5 km/h
Dimensions
Moldboard
4,320 mm
Overall Width
4,320 mm
Overall Height
3,420 mm
Overall Length
8,950 mm
Ground Clearance
339 mm
Tire
Rear Tires STD
17.5/25-12
Front Tires STD
17.5/25-12
- -These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog.
- -The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
