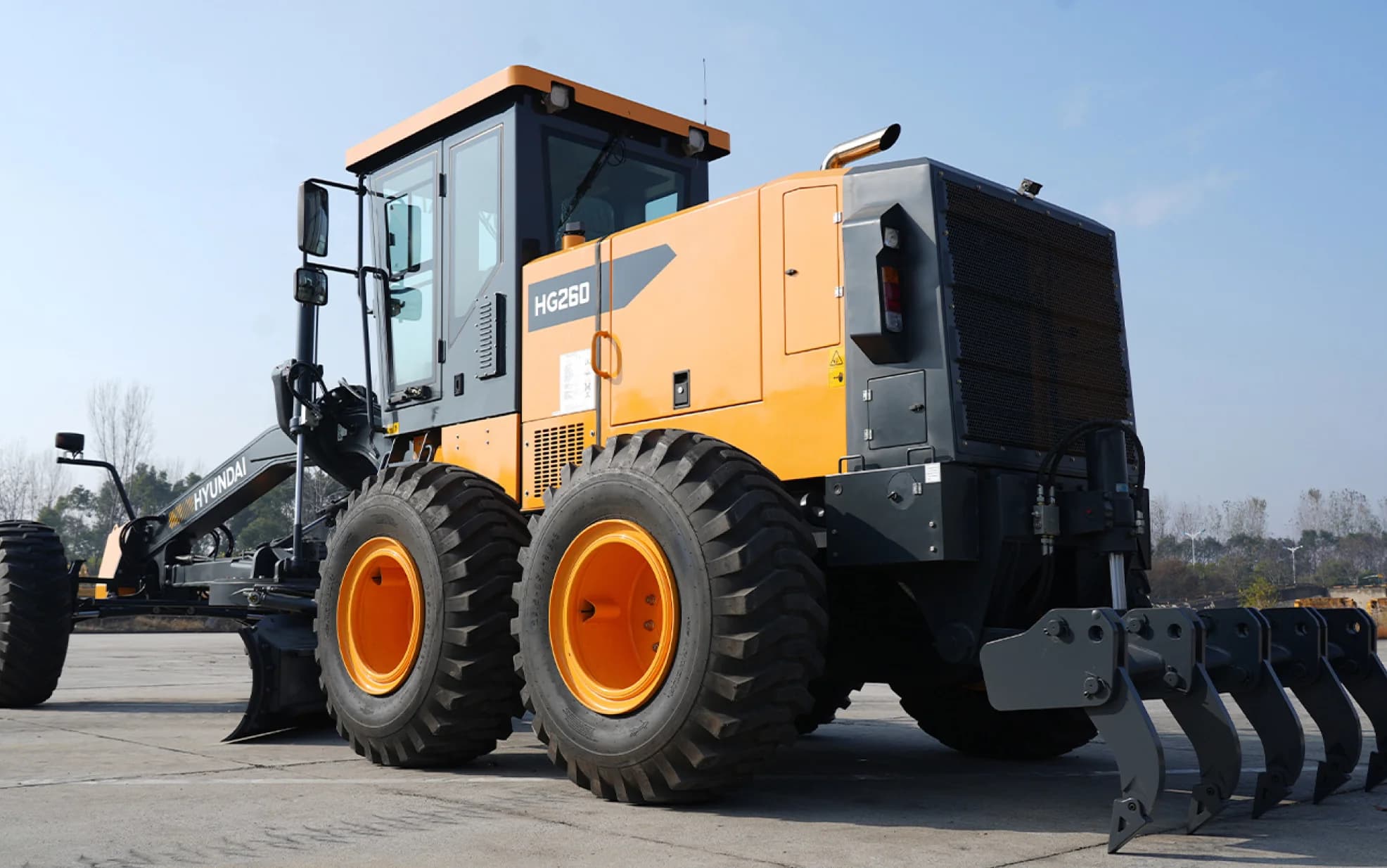

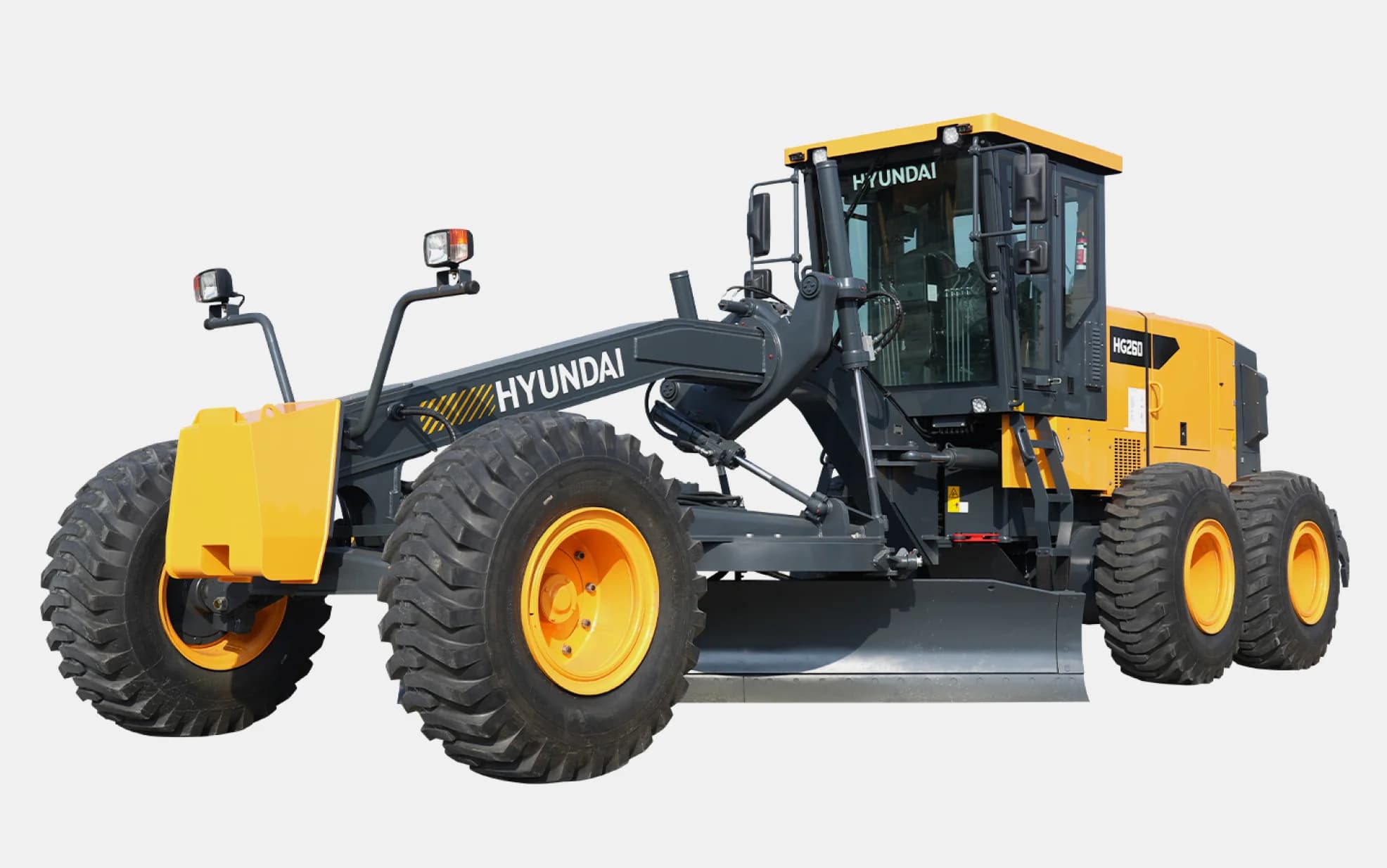

HG260
Operating Weight
19.5 ton
Emission
TIER 3
Moldboard
4,420 mm
Rated Power
260 hp / 2,200 rpm
Specifications
General
Blade Length
4,420 mm
Operating Weight
19.5 ton
Rated Power
260 hp / 2200 rpm
Engine
Emission
TIER 3
Max. Torque
1,200 Nm / 1,500 rpm
Engine Model
QSL8.9
Hydraulic System
Implement Circuit
235 kgf/cm²
Main Pumps Rated Flow
167 ℓ/min
Tank Capacity
Fuel Tank
475 ℓ
Engine Oil
20 ℓ
Hydraulic Tank
100 ℓ
Performance
Travel Speed (forward, Maximum)
48.9 km/h
Travel Speed (reverse, Maximum)
34.9 km/h
Dimensions
Moldboard
4,420 mm
Overall Width
3,970 mm
Overall Height
3,650 mm
Overall Length
9,850 mm
Ground Clearance
540 mm
Height to Top of ROPS Frame
3,650 mm
Length of Between Counterweight to Ripper
10,300 mm
- -These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog.
- -The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
