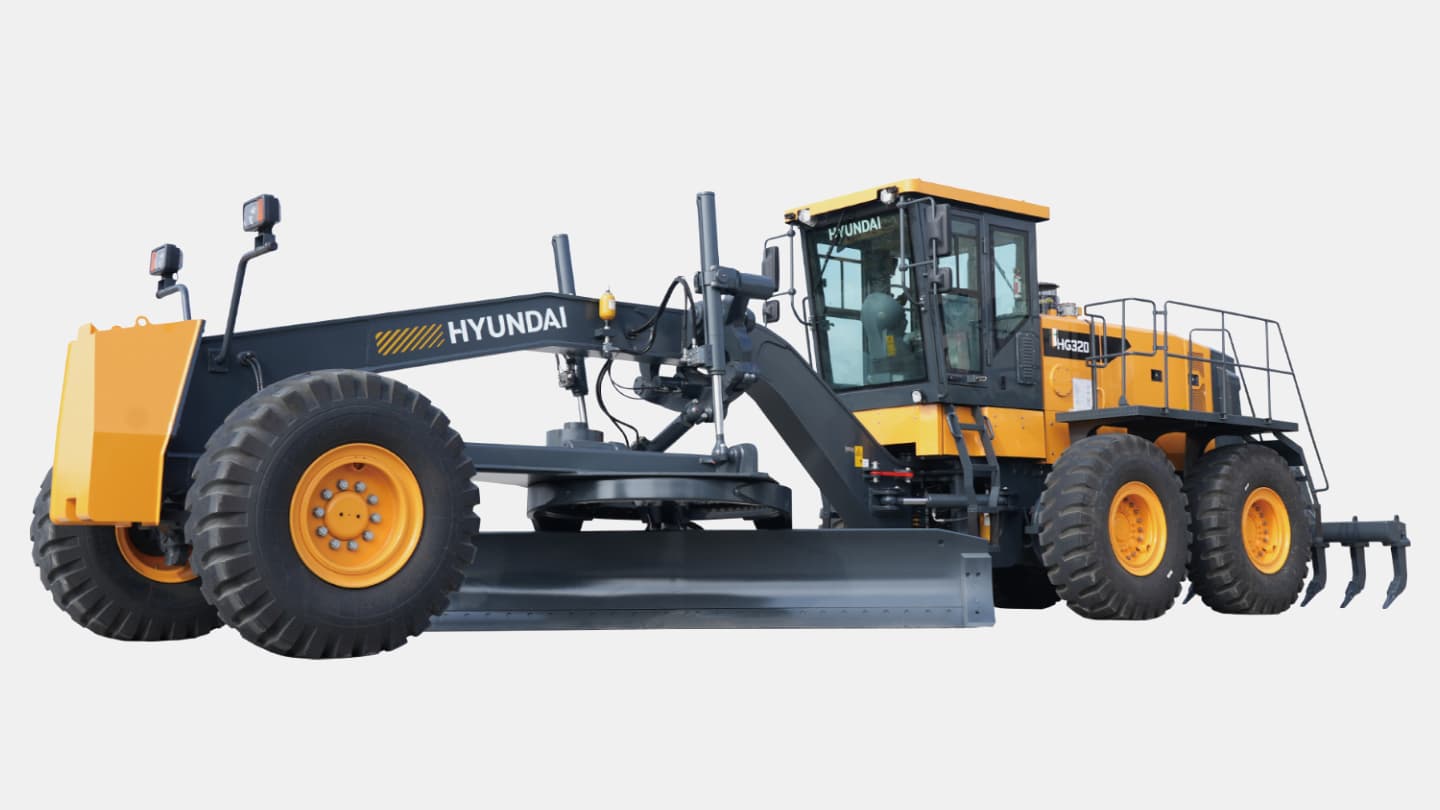

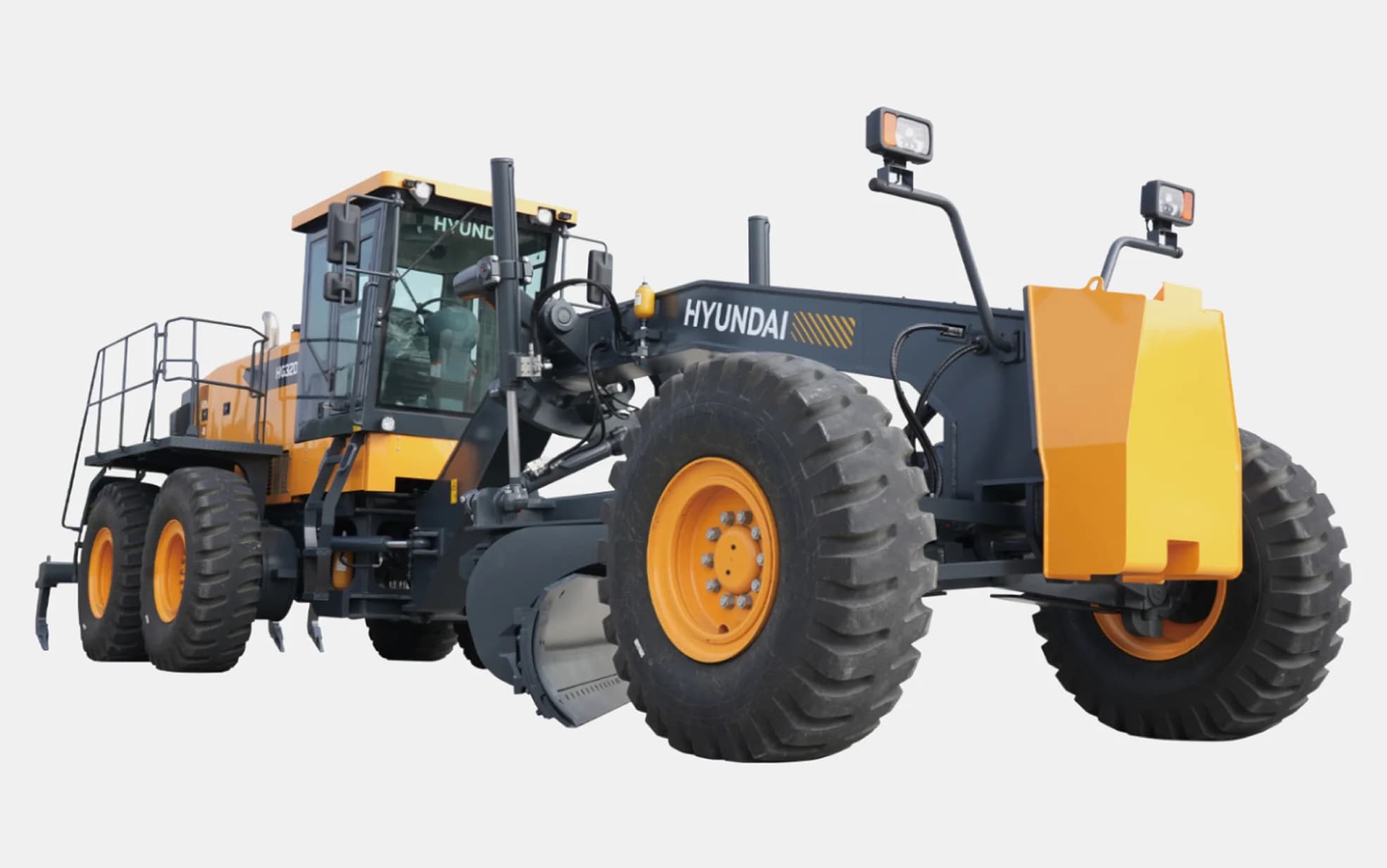

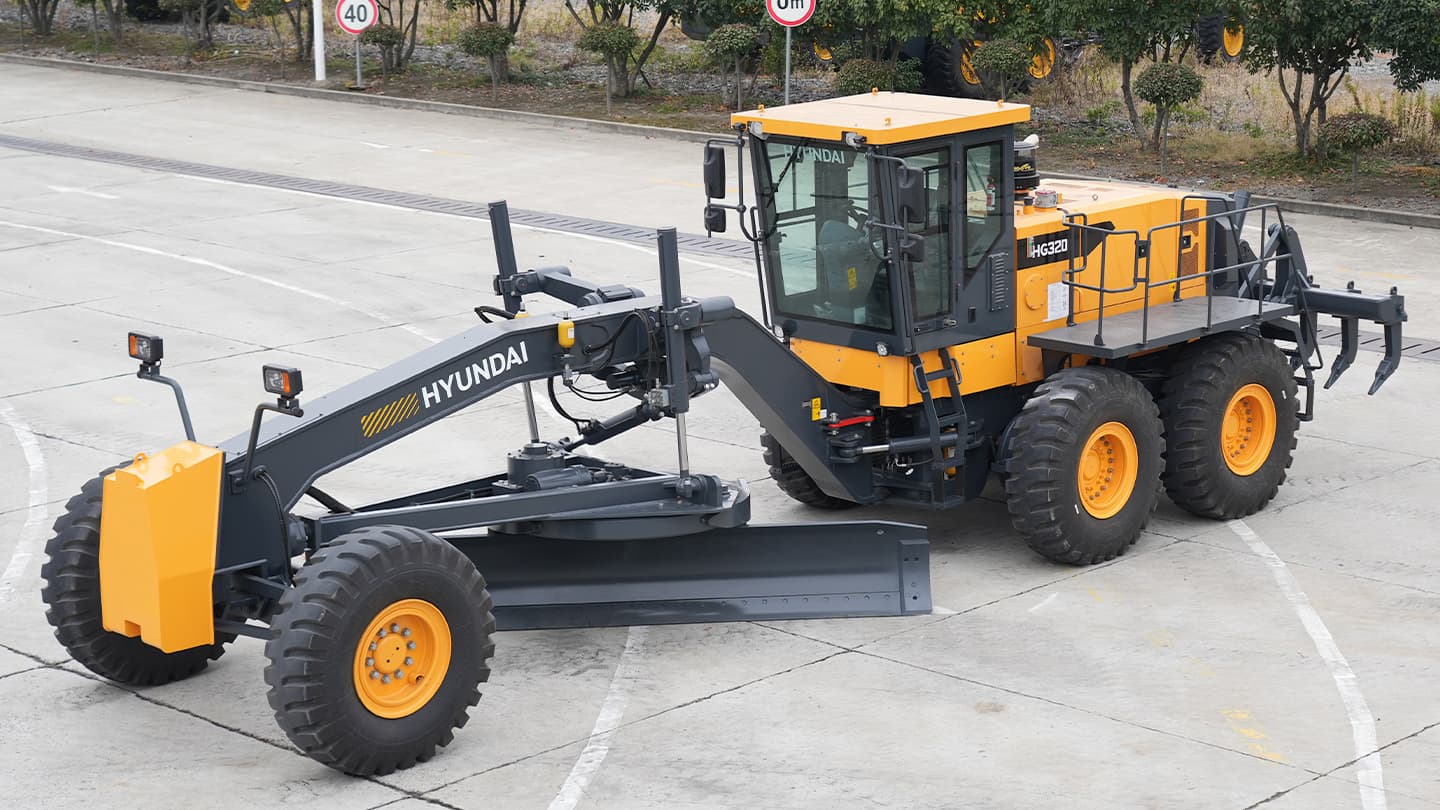

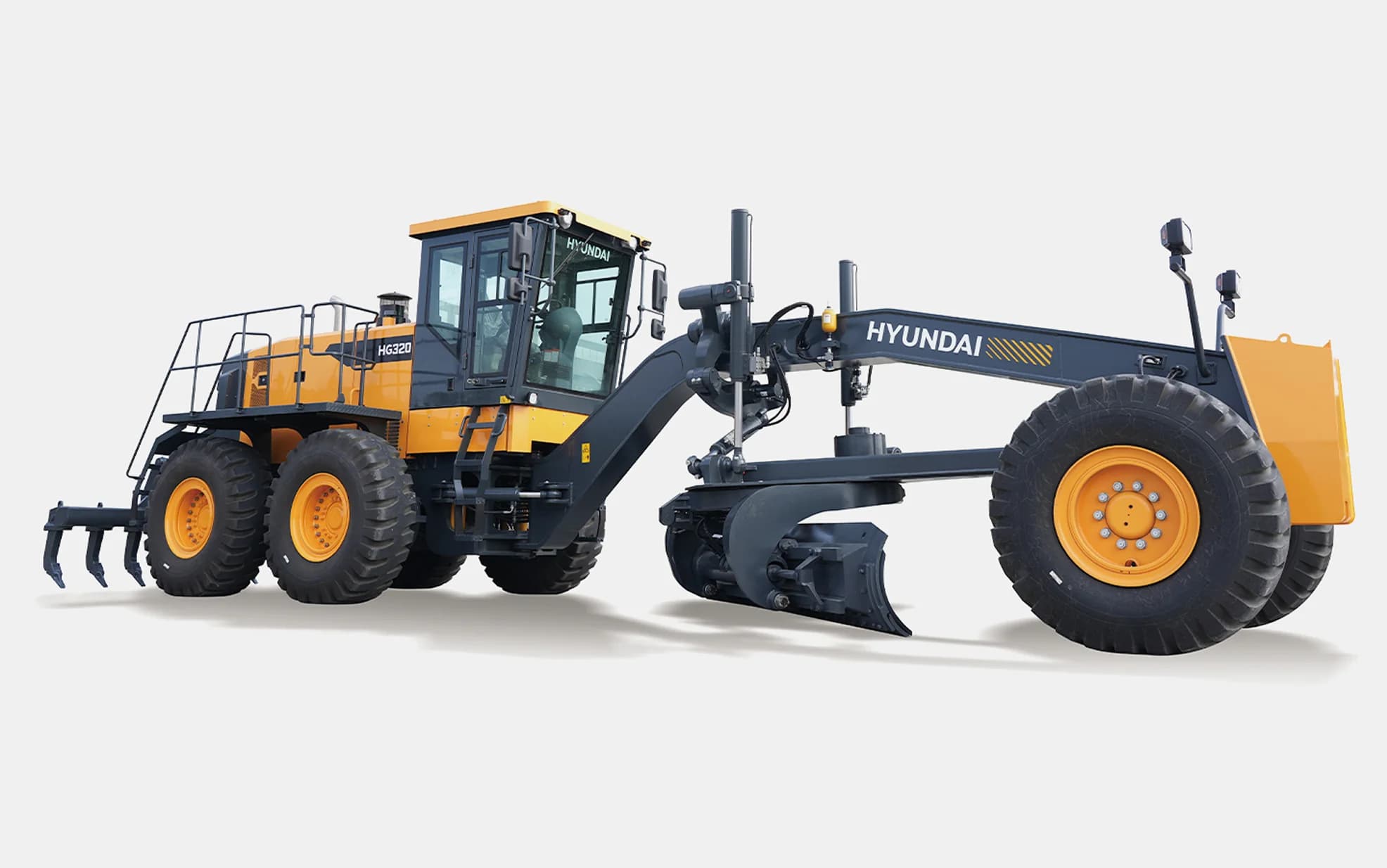

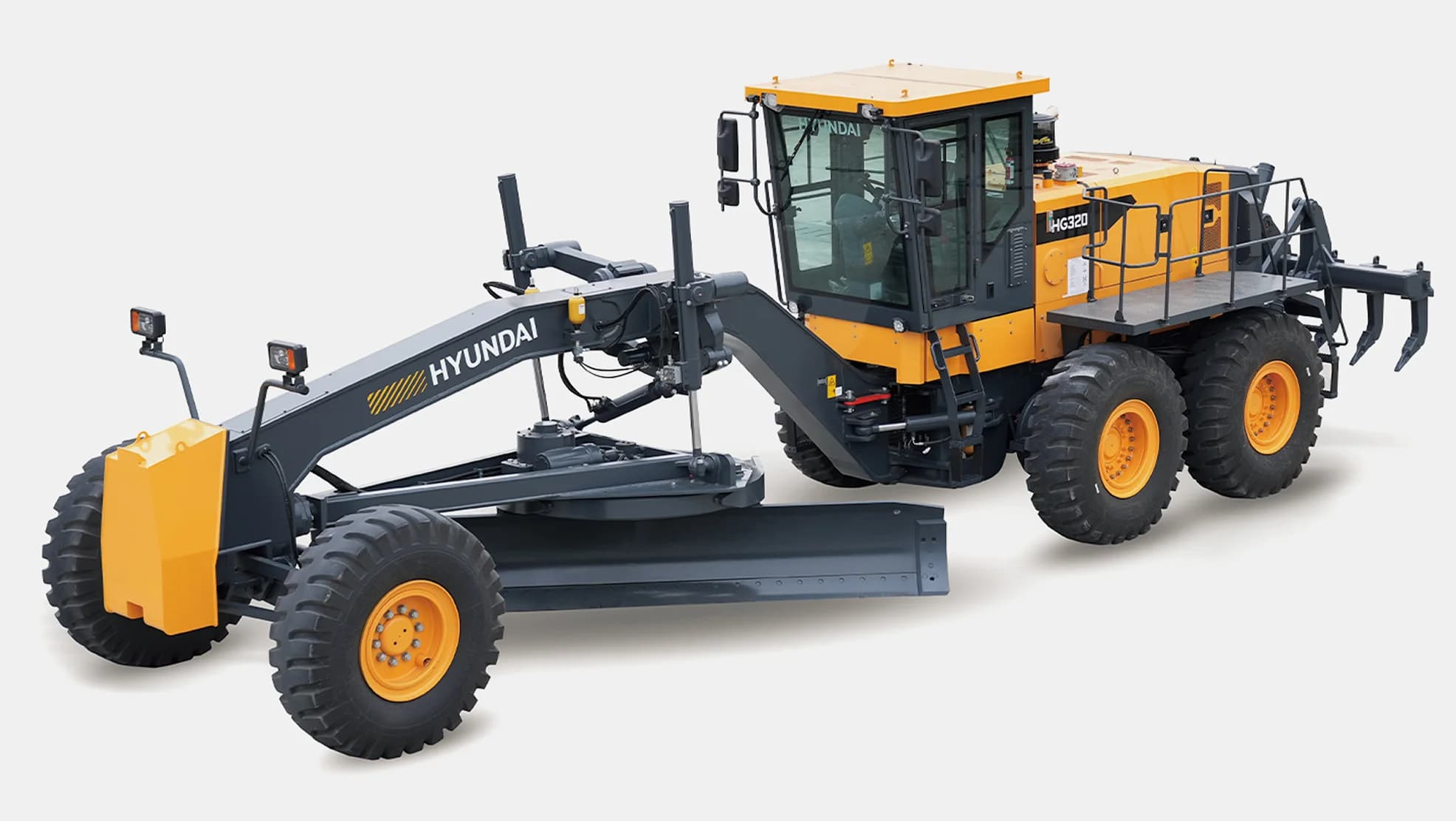

HG320
Operating Weight
28 ton
Emission
TIER 3
Moldboard
4,920 mm
Rated Power
329 hp / 2,100 rpm
Specifications
General
Blade Length
4,920 mm
Operating Weight
28 ton
Rated Power
329 hp / 2100 rpm
Engine
Emission
TIER 3
Max. Torque
1,674Nm/1,400rpm
Engine Model
QSM11
Hydraulic System
Implement Circuit
255 kgf/cm²
Main Pumps Rated Flow
155 ℓ/min
Tank Capacity
Fuel Tank
541 ℓ
Engine Oil
30 ℓ
Hydraulic Tank
200 ℓ
Performance
Travel Speed Forward
43 km/h
Travel Speed Reverse
29 km/h
Dimensions
Moldboard
4,920 mm
Overall Width
4,620 mm
Overall Height
3,700 mm
Overall Length
10,800 mm
Ground Clearance
645 mm
Height to Top of ROPS Frame
3,700 mm
Length of Between Counterweight to Ripper
12,500 mm
- -These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog.
- -The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
