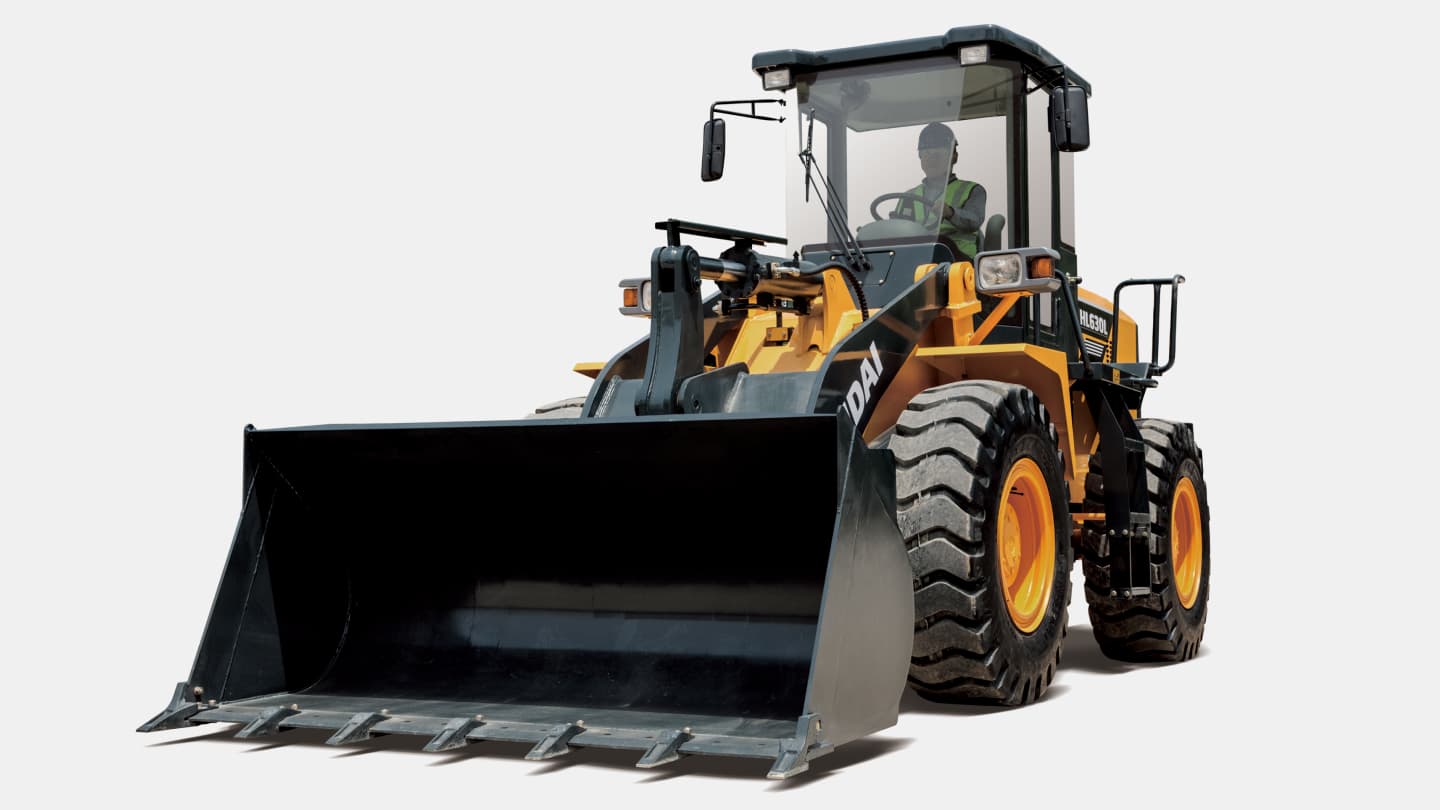

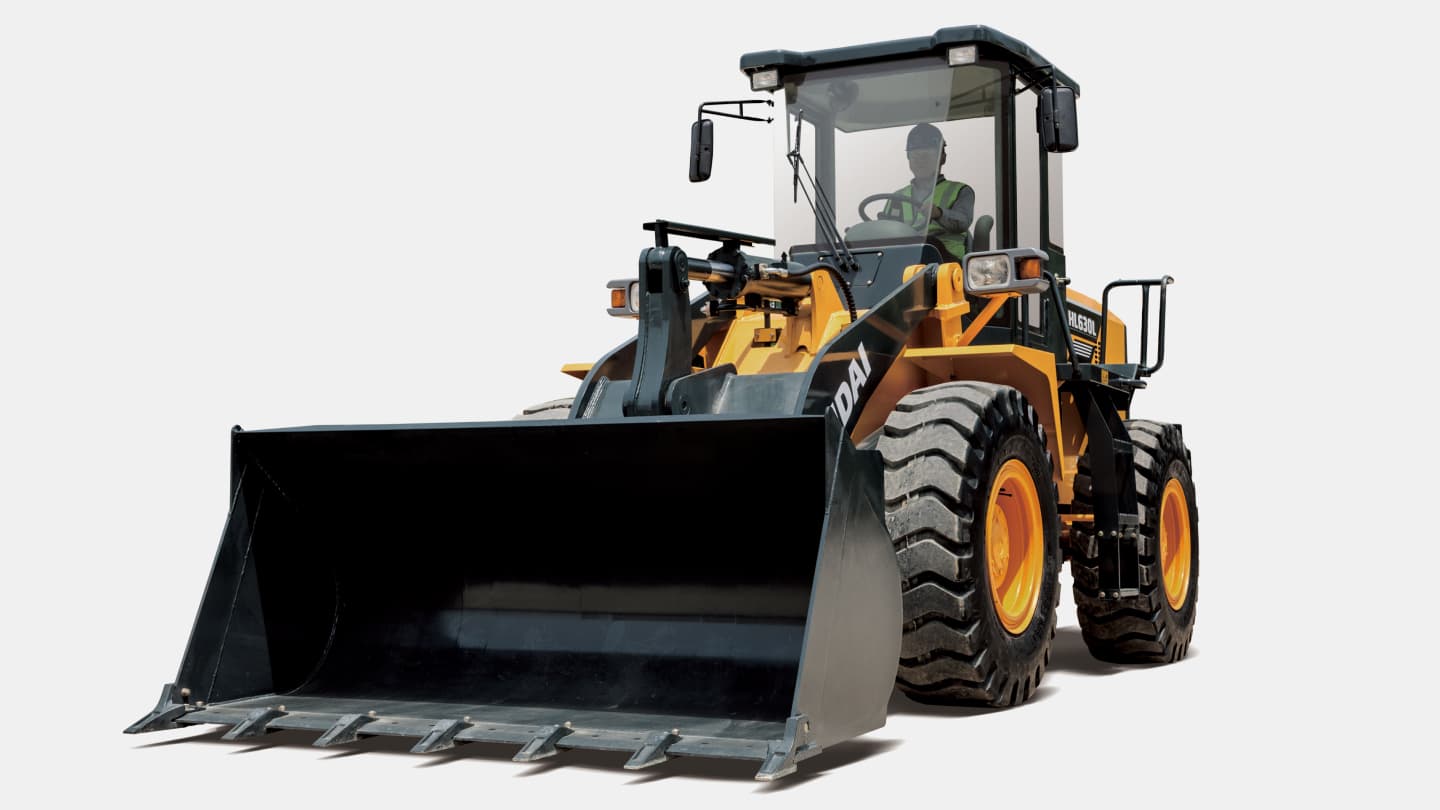

HL635L
Operating Weight
10.4 ton
Bucket Capacity
1.7 m³
Emission
~TIER 2
Rated Power
123 hp / 2,000 rpm
Specifications
General
Bucket Capacity
1.7 m³
Operating Weight
10.4 ton
Rated Power
123 hp / 2000 rpm
Engine
Emission
~TIER 2
Max. Torque
50 kgf·m / 1,700 rpm
Engine Model
Weichai WP6G125E23
Hydraulic System
Type
Fixed gear pump
Tank Capacity
Fuel Tank
200 ℓ
Hydraulic Tank
180 ℓ
Performance
Travel Speed Forward
36 km/h
Travel Speed Reverse
29 km/h
Tipping Load Staight
6,800 kg
Tipping Load Full Turn
5,550 kg
Cycle Time Dump At Maximum Raise
1.4 sec
Cycle Time Lower Empty Float Down
2.6 sec
Cycle Time Raise From Carry Position
5.1 sec
Dimensions
Wheelbase
2,750 mm
Overall Width
2,460 mm
Overall Height
3,200 mm
Overall Length
7,040 mm
Ground Clearance
345 mm
Operating Range
Hinge Pin Height At Maximum Lift
3,680 mm
Loader Dump Clearance At Maximum Lift And45 Discharge
2,850 mm
Tire
Rear Tires STD
17.5/25-12
Front Tires STD
17.5/25-12
- -These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog.
- -The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
