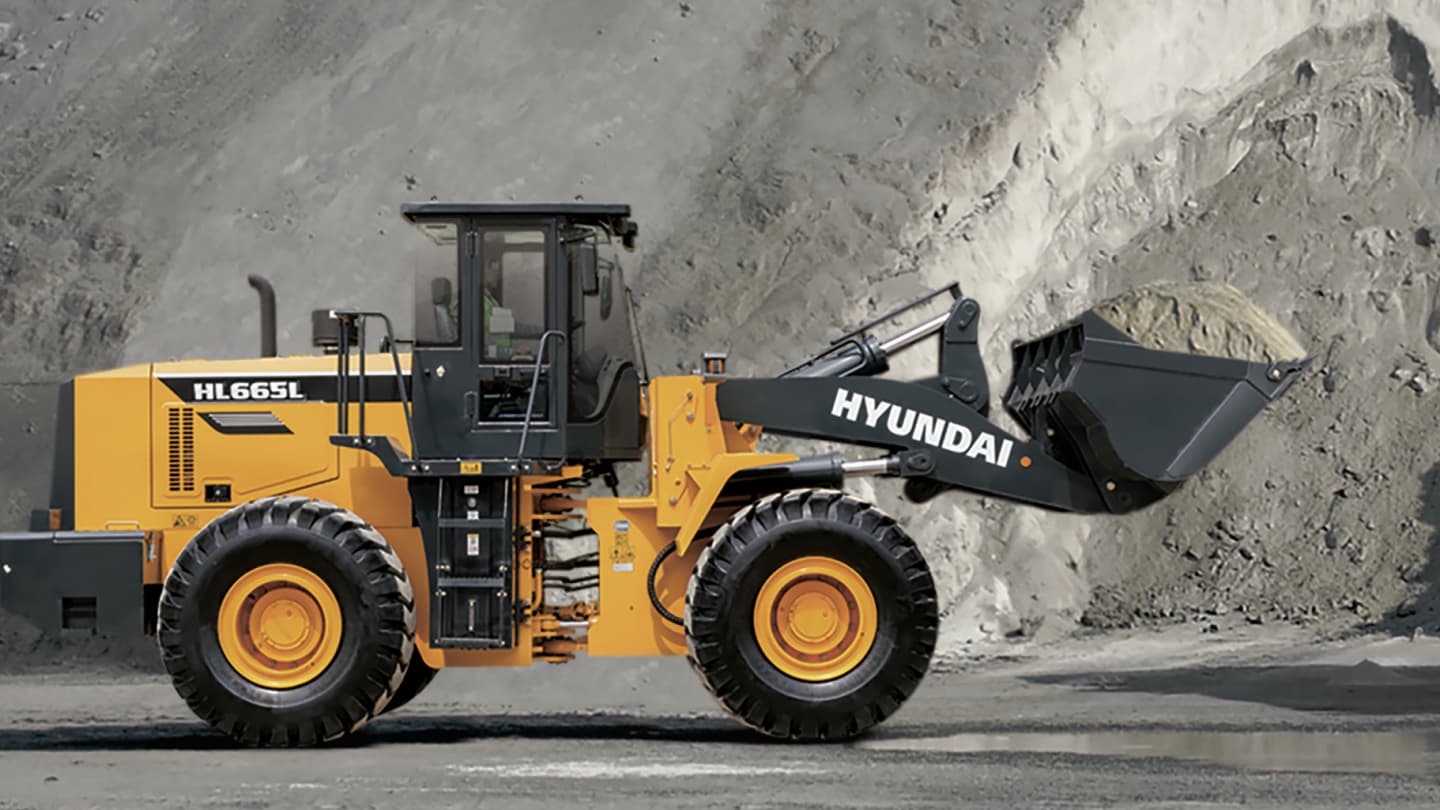

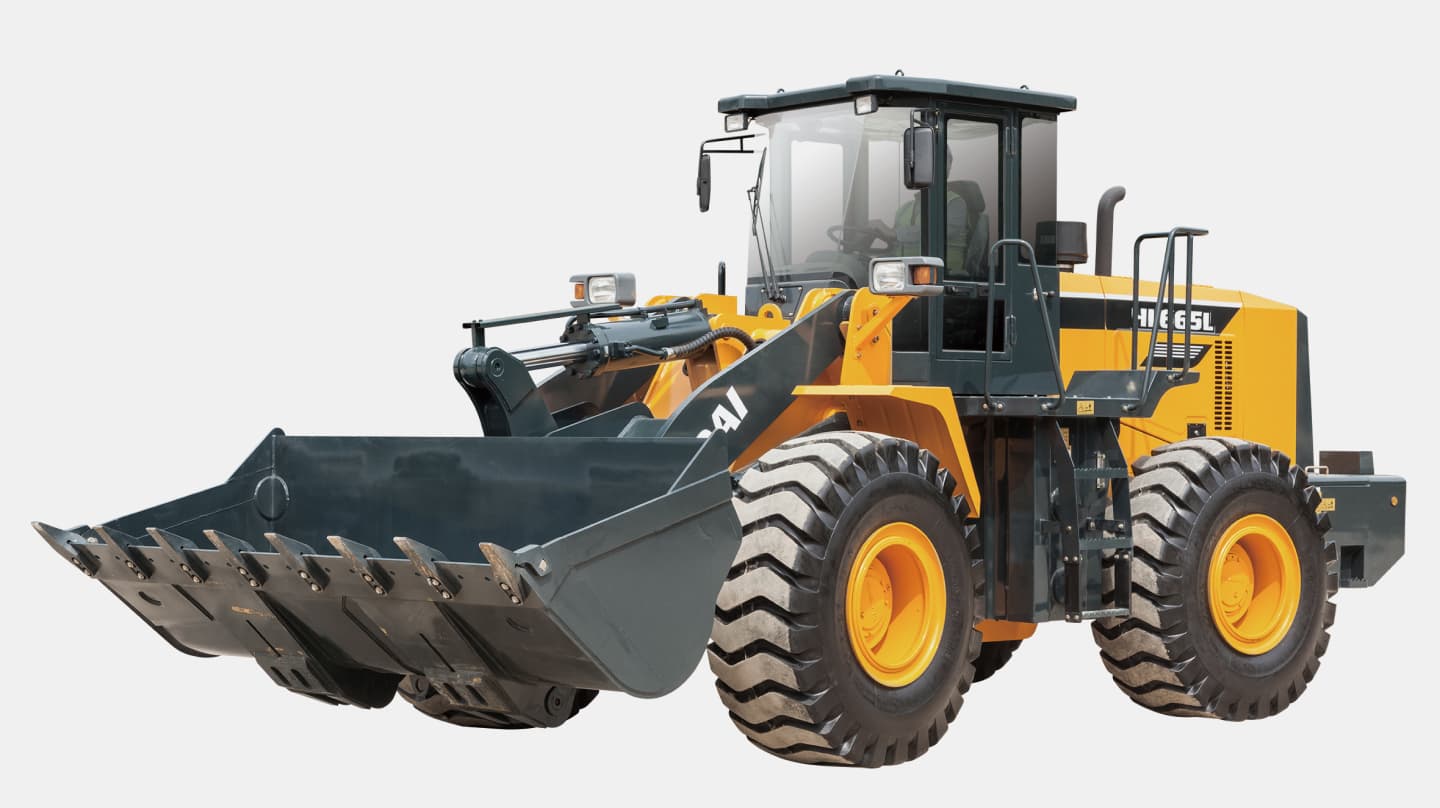

HL665L
Operating Weight
18 ton
Bucket Capacity
3 m³
Emission
~TIER 2
Rated Power
217 hp / 2,000 rpm
Specifications
General
Bucket Capacity
3 m³
Operating Weight
18 ton
Rated Power
217 hp / 2000 rpm
Engine
Emission
~TIER 2
Max. Torque
90 kgf·m / 1400 rpm
Engine Model
Weichai WD10G220E23
Hydraulic System
Type
Fixed gear pump
Tank Capacity
Fuel Tank
290 ℓ
Hydraulic Tank
210 ℓ
Performance
Travel Speed Forward
36 km/h
Travel Speed Reverse
16 km/h
Tipping Load Staight
11,300 kg
Tipping Load Full Turn
10,800 kg
Cycle Time Dump At Maximum Raise
1.6 sec
Cycle Time Lower Empty Float Down
3.3 sec
Cycle Time Raise From Carry Position
5.1 sec
Dimensions
Wheelbase
3,230 mm
Overall Width
2,990 mm
Overall Height
3,410 mm
Overall Length
7,780 mm
Ground Clearance
400 mm
Operating Range
Hinge Pin Height At Maximum Lift
4,150 mm
Loader Dump Clearance At Maximum Lift And45 Discharge
3,100 mm
Tire
Rear Tires STD
23.5/25-18
Front Tires STD
23.5/25-18
- -These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog.
- -The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
