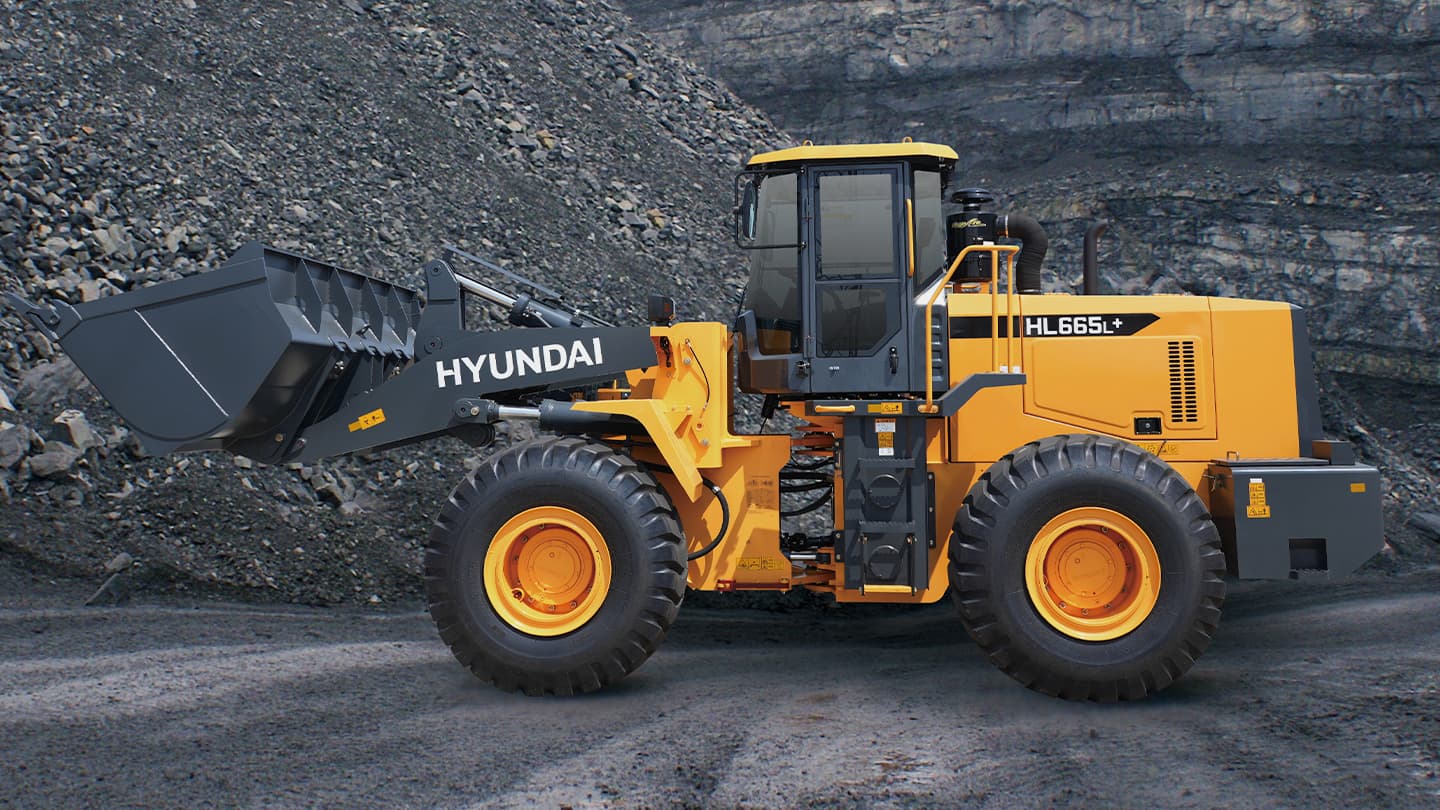

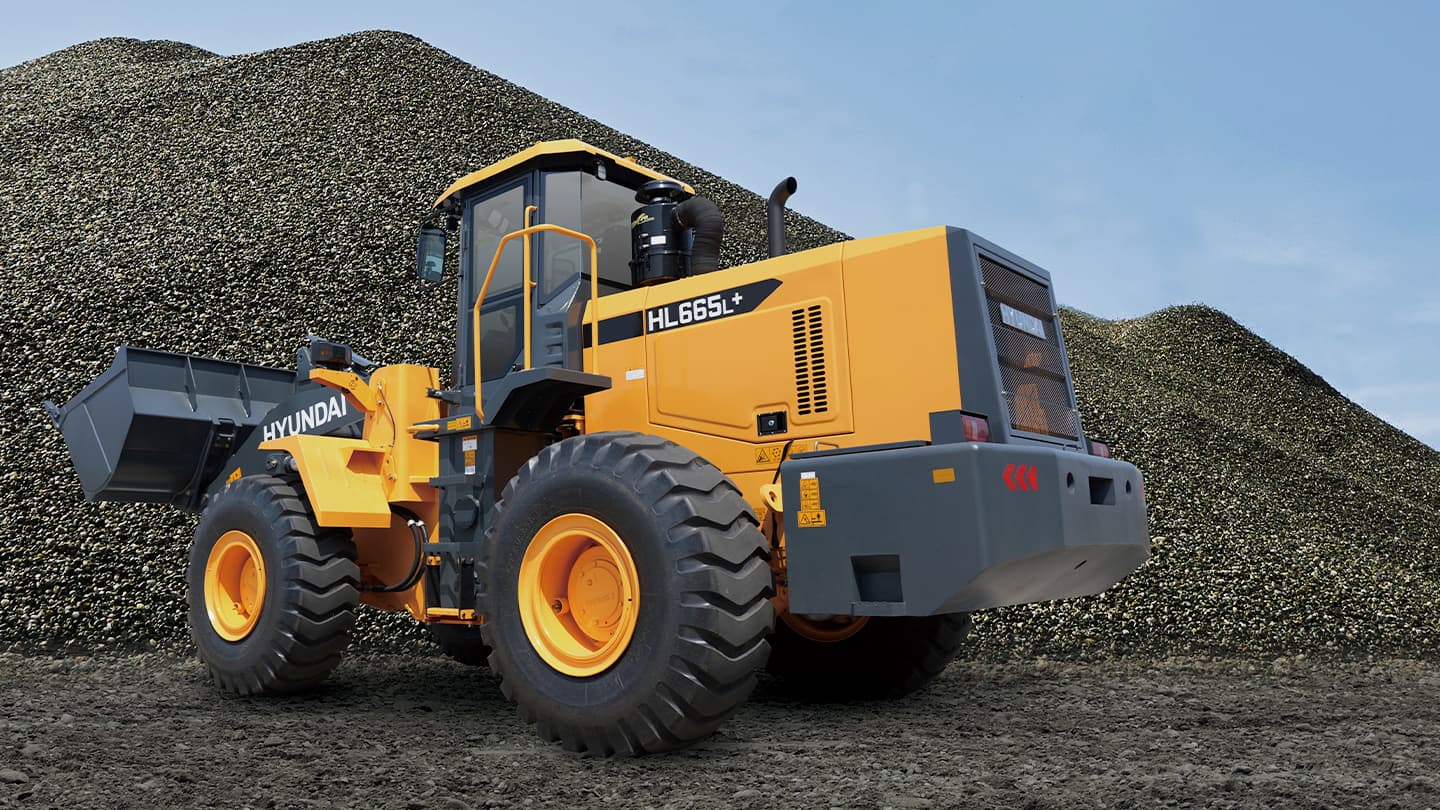

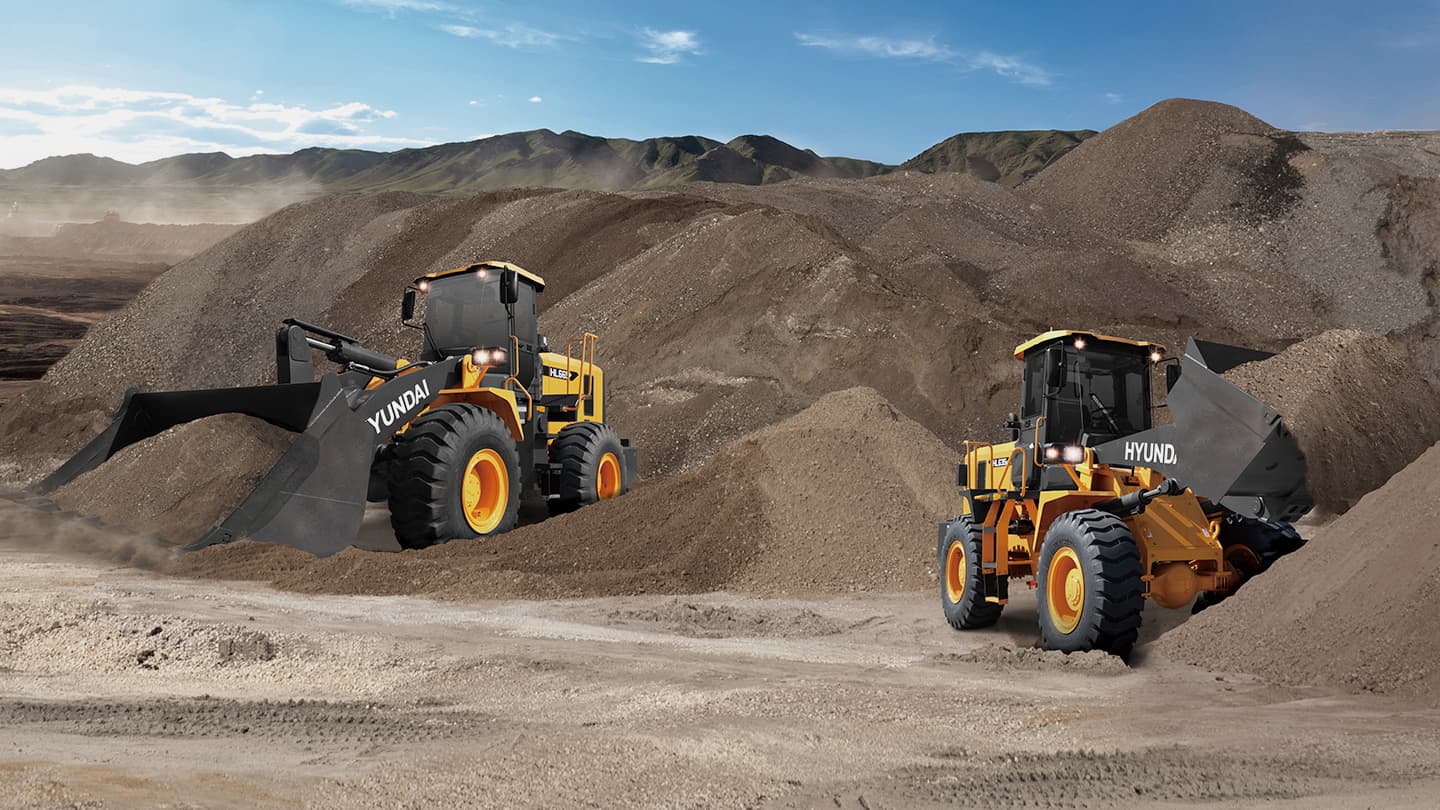

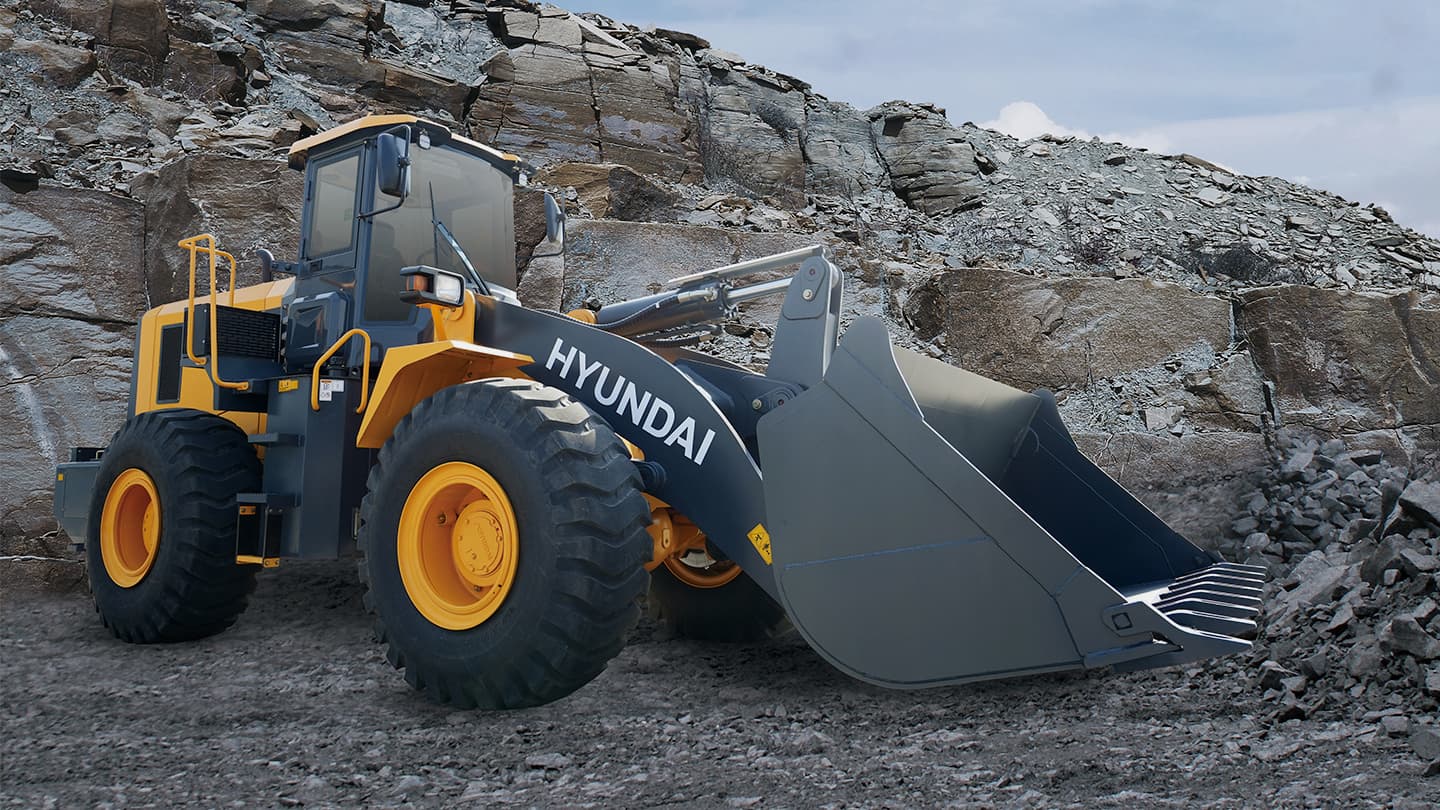

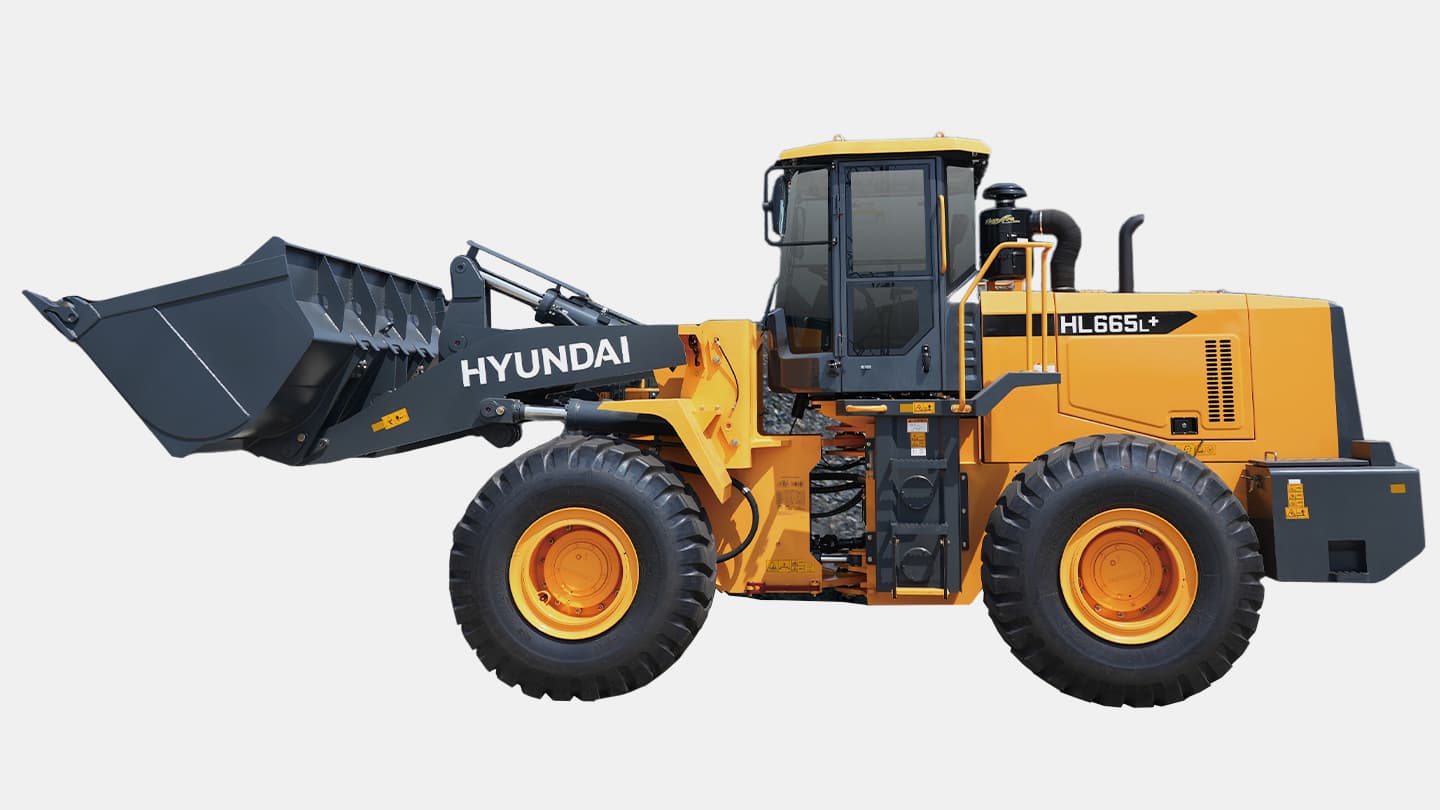

HL665L+
Operating Weight
17.7 ton
Bucket Capacity
3 m³
Emission
~TIER 2
Rated Power
161 hp / 1,400 rpm
Specifications
General
Bucket Capacity
3 m³
Operating Weight
17.7 ton
Rated Power
161 hp / 1400 rpm
Engine
Emission
~TIER 2
Max. Torque
92 kgf·m / - rpm
Engine Model
WEICHAI
Hydraulic System
Type
Fixed gear pump
Tank Capacity
Fuel Tank
290 ℓ
Hydraulic Tank
210 ℓ
Performance
Tipping Load Staight
11,100 kg
Tipping Load Full Turn
10,500 kg
Travel Speed (forward, Maximum)
36 km/h
Travel Speed (reverse, Maximum)
16 km/h
Cycle Time Dump At Maximum Raise
1.6 sec
Cycle Time Lower Empty Float Down
3.3 sec
Cycle Time Raise From Carry Position
5.1 sec
Dimensions
Wheelbase
3,230 mm
Overall Width
3,100 mm
Overall Height
3,540 mm
Overall Length
7,980 mm
Ground Clearance
400 mm
Operating Range
Loader Dump Clearance At Maximum Lift And45 Discharge
3,100 mm
Tire
Tires S T D
23.5-25 L3
- -These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog.
- -The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
