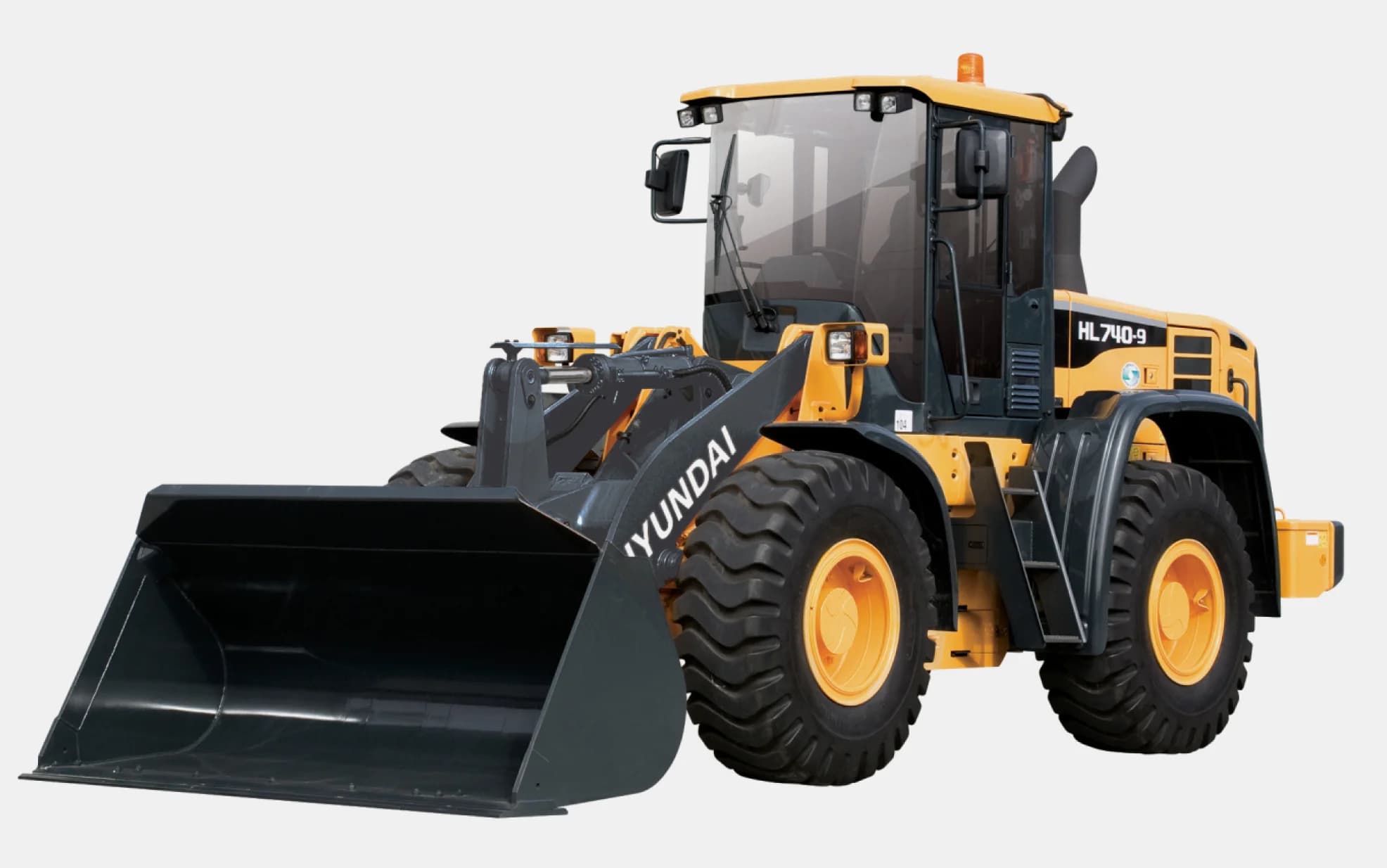

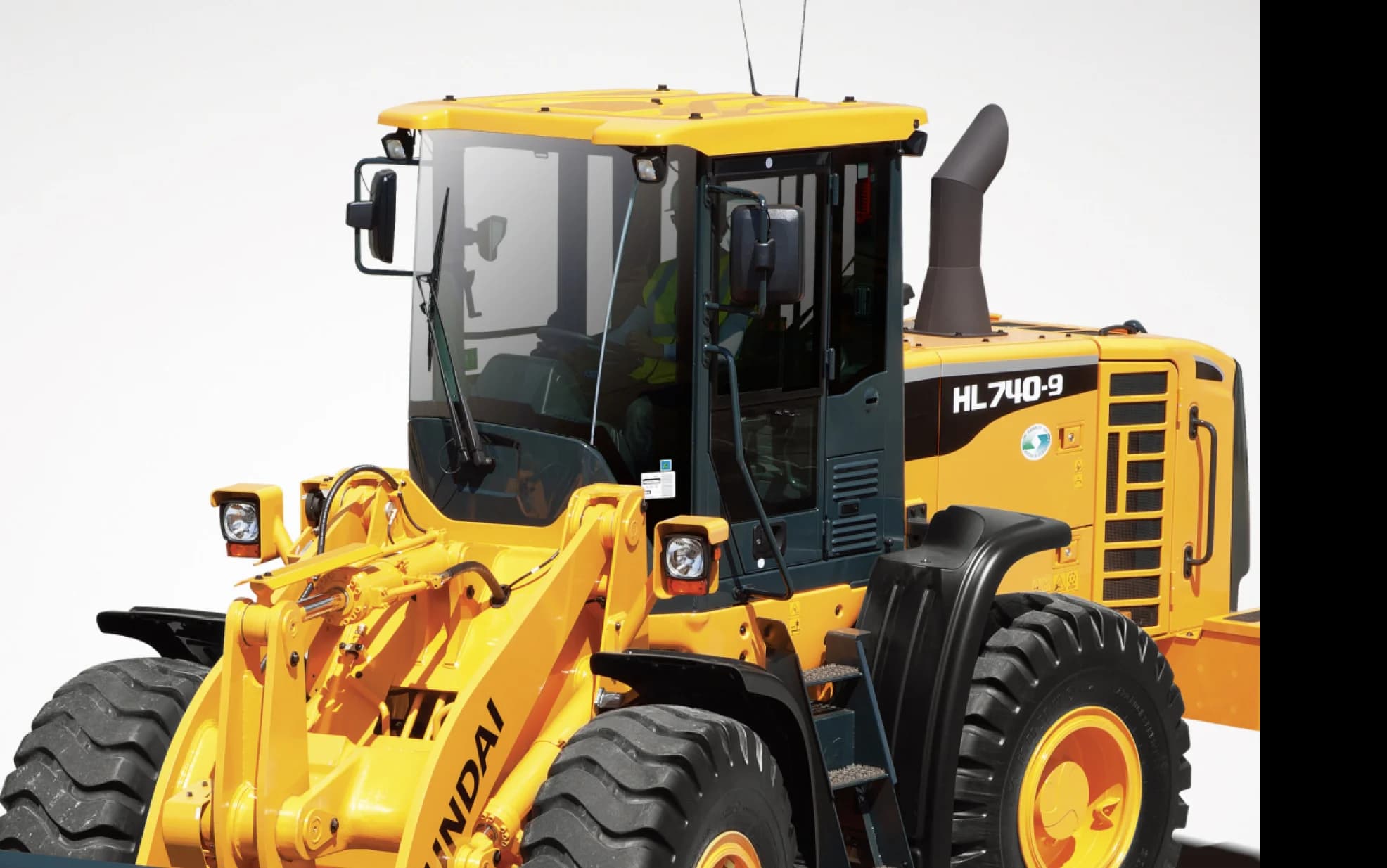

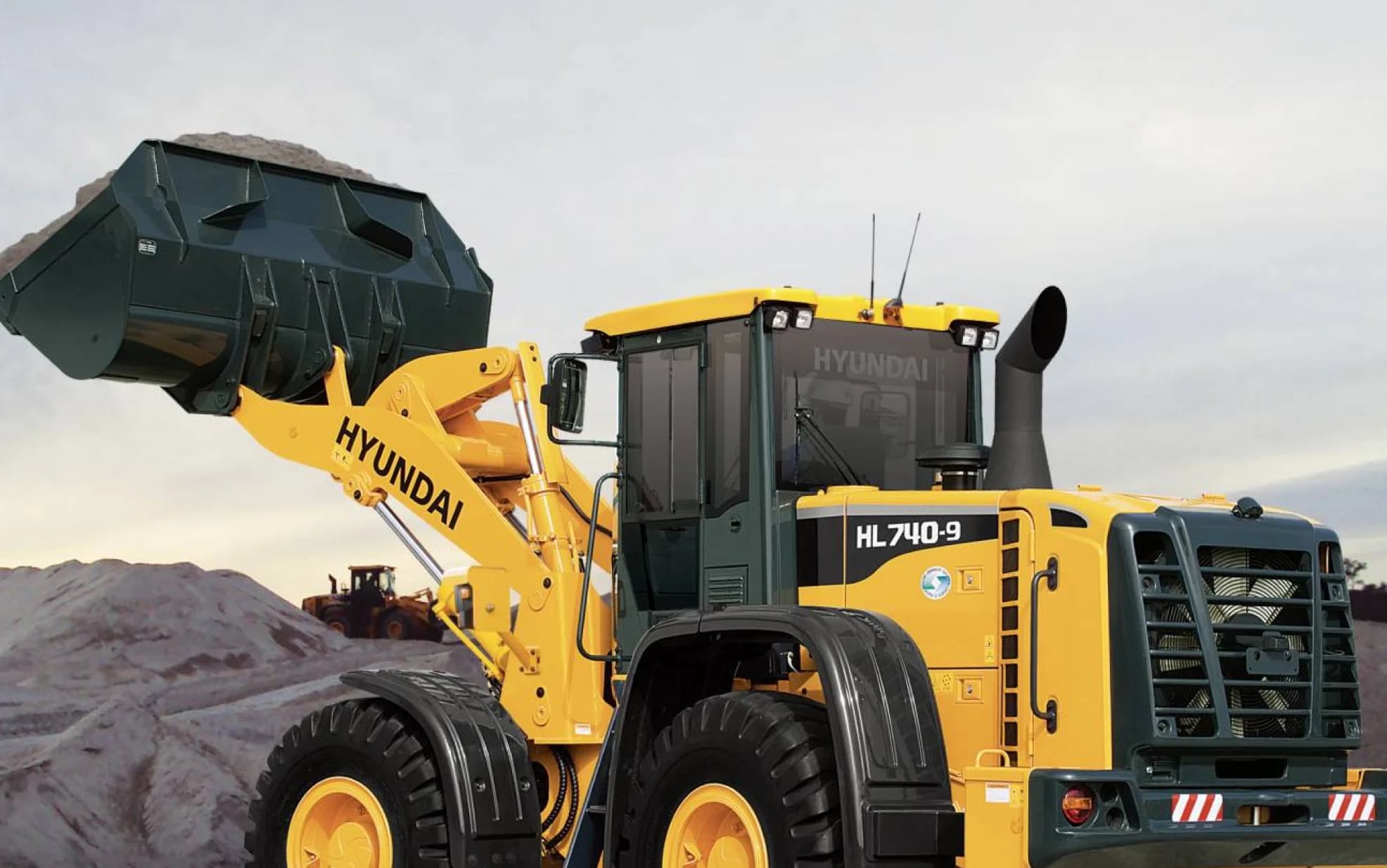

HL740-9
Operating Weight
12 ton
Bucket Capacity
2.3 m³
Emission
TIER 3
Rated Power
145 hp / 2,100 rpm
.webpc3fba9d2-3983-42df-8b9a-a1601e996902.webp&w=2048&q=75)
.webpa31332f3-1f40-49e8-8b16-9f1bf81ed716.webp&w=2048&q=75)
.webp408e9215-e74a-4886-b08d-967d1428d39b.webp&w=2048&q=75)
Specifications
General
Bucket Capacity
2.3 m³
Operating Weight
12 ton
Rated Power
145 hp / 2100 rpm
Engine
Emission
TIER 3
Max. Torque
69 kgf·m / 1,400 rpm
Engine Model
Hyundai HE6.7
Hydraulic System
Type
Load-sensing hydraulic system
Tank Capacity
Fuel Tank
220 ℓ
Hydraulic Tank
152 ℓ
Performance
Travel Speed Forward
39 km/h
Travel Speed Reverse
25.1 km/h
Tipping Load Staight
9,600 kg
Tipping Load Full Turn
8,300 kg
Cycle Time Dump At Maximum Raise
1.1 sec
Cycle Time Lower Empty Float Down
3 sec
Cycle Time Raise From Carry Position
5.5 sec
Dimensions
Wheelbase
2,900 mm
Overall Width
2,600 mm
Overall Height
3,260 mm
Overall Length
7,380 mm
Ground Clearance
417 mm
Operating Range
Hinge Pin Height At Maximum Lift
3,820 mm
Loader Dump Clearance At Maximum Lift And45 Discharge
2,790 mm
Tire
Rear Tires STD
20.5/25-16
Front Tires STD
20.5/25-16
- -These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog.
- -The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
