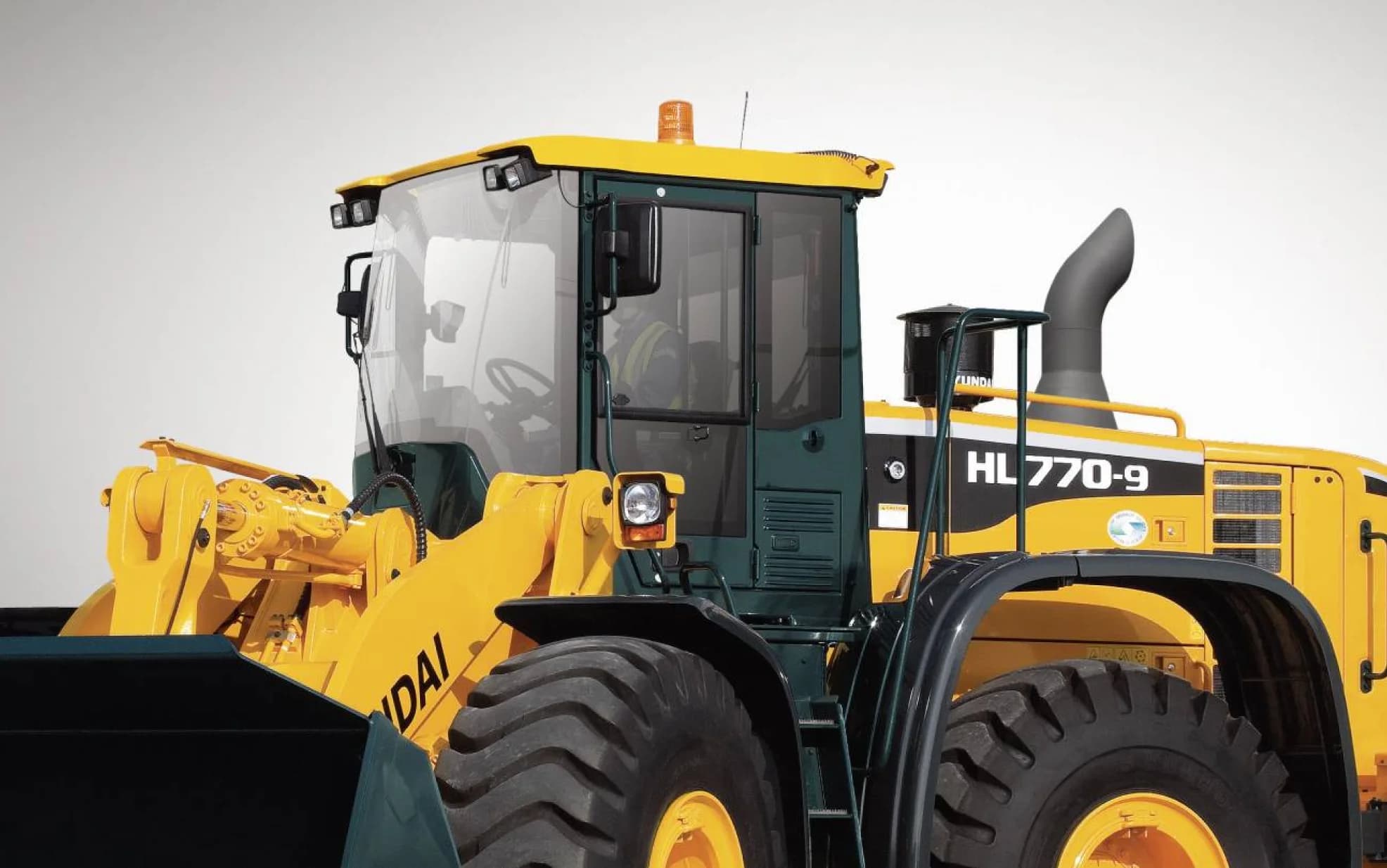

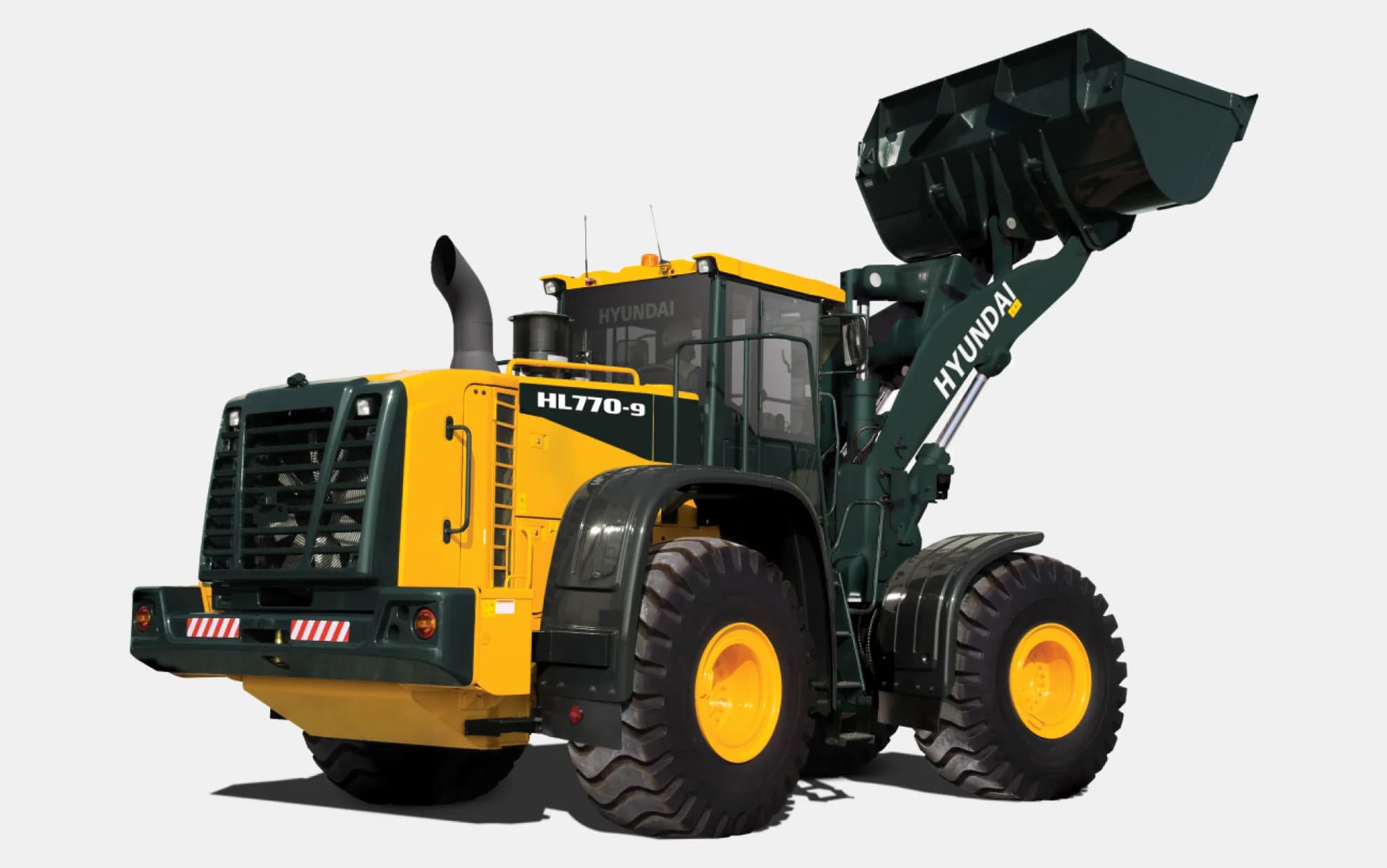

HL770-9
Operating Weight
23.1 ton
Bucket Capacity
4.2 m³
Emission
TIER 3
Rated Power
280 hp / 2,000 rpm
.webpc3ac575f-7ea7-48e6-a2fd-3d93462c115d.webp&w=2048&q=75)
.webp415c361a-f653-44d4-8d60-1ed4f1377ebc.webp&w=2048&q=75)
.webp4da41134-7cb3-4a0c-9ba1-3f5b9c022d5a.webp&w=2048&q=75)
Specifications
General
Bucket Capacity
4.2 m³
Operating Weight
23.1 ton
Rated Power
280 hp / 2000 rpm
Engine
Emission
TIER 3
Max. Torque
148 kgf·m / 1,400 rpm
Engine Model
HE 8.9
Hydraulic System
Type
Load sensing hydraulic system
Tank Capacity
Fuel Tank
390 ℓ
Engine Oil
23 ℓ
Hydraulic Tank
200 ℓ
Performance
Travel Speed Forward
41 km/h
Travel Speed Reverse
26.9 km/h
Tipping Load Staight
17,600 kg
Tipping Load Full Turn
15,300 kg
Cycle Time Dump At Maximum Raise
1.3 sec
Cycle Time Lower Empty Float Down
2.8 sec
Cycle Time Raise From Carry Position
5.4 sec
Dimensions
Wheelbase
3,500 mm
Overall Width
3,100 mm
Overall Height
3,560 mm
Overall Length
8,700 mm
Ground Clearance
480 mm
Operating Range
Hinge Pin Height At Maximum Lift
4,310 mm
Loader Dump Clearance At Maximum Lift And45 Discharge
3,090 mm
Tire
Type
Tubeless, loader design tires
Tires S T D
26.5-25, 20 PR, L3
Option Include
26.5 R25 XHA* / 26.5-25, 28 PR, L3 / 26.5-25, 32 PR, L3 / 23.5-25, 20 PR, L3 / 26.5-25, 20 PR, L5
- -These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog.
- -The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
