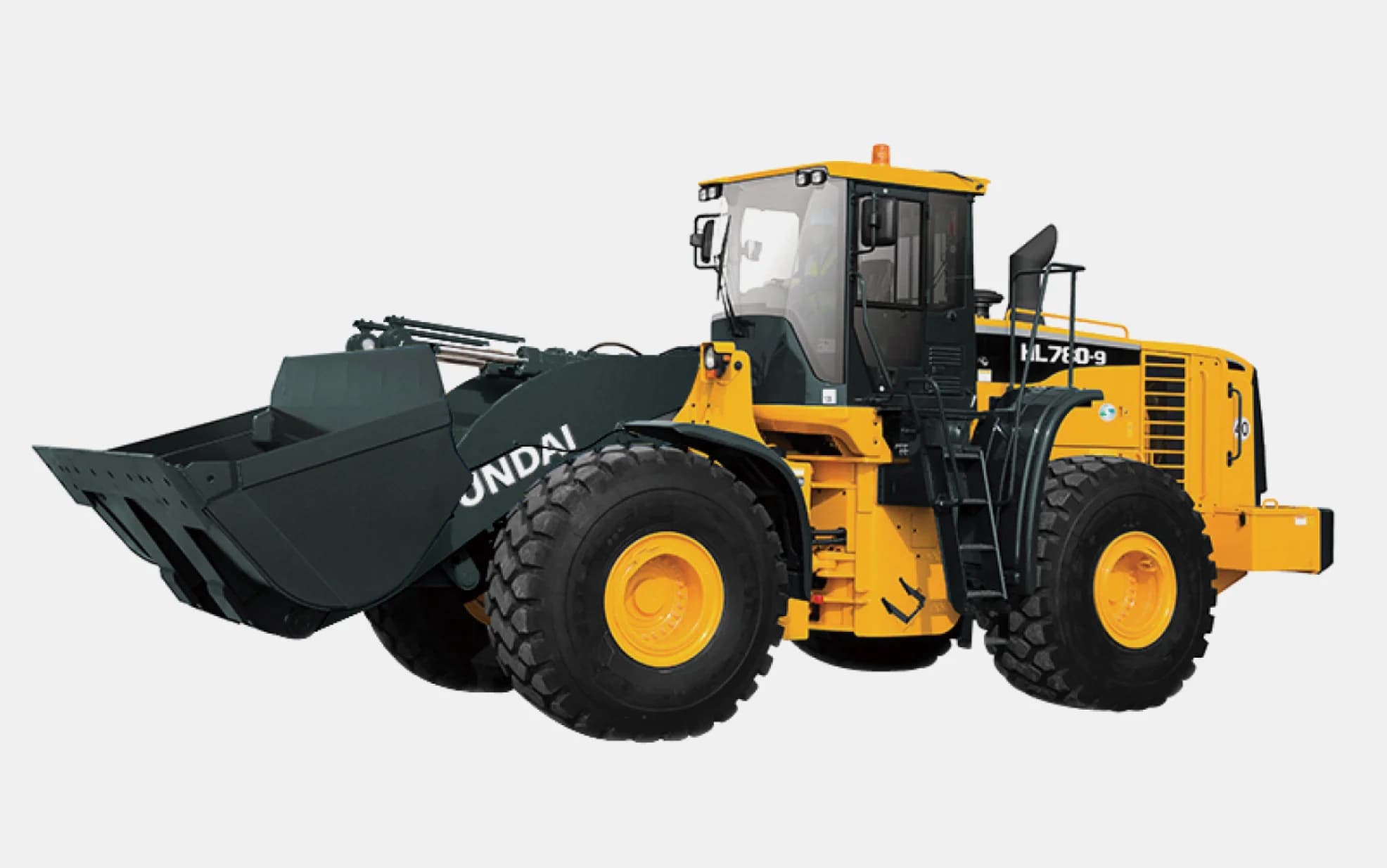

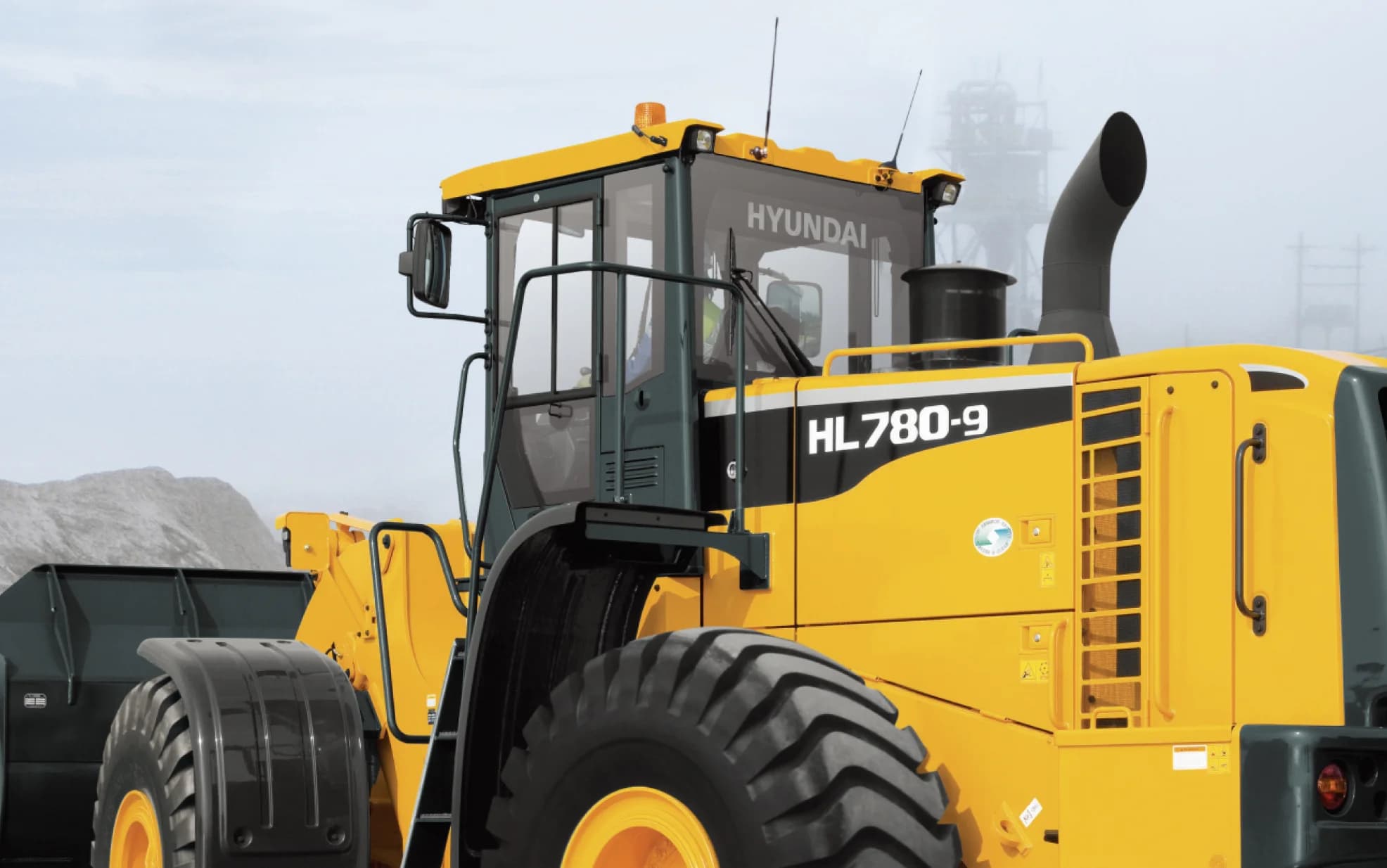

HL780-9

Operating Weight

30 ton

Bucket Capacity

5.4 m³

Emission

TIER 3

Rated Power

348 hp / 2,000 rpm

Catalog

1 / 3

Specifications

General

Bucket Capacity

5.4 m³

Operating Weight

30 ton

Rated Power

348 hp / 2000 rpm

Engine

Emission

TIER 3

Max. Torque

171 kgf·m / 1,400 rpm

Engine Model

QSM11

Hydraulic System

Type

Load sensing hydraulic system

Tank Capacity

Fuel Tank

450 ℓ

Engine Oil

38 ℓ

Hydraulic Tank

234 ℓ

Performance

Travel Speed Forward

36.5 km/h

Travel Speed Reverse

25 km/h

Tipping Load Staight

24,200 kg

Tipping Load Full Turn

21,000 kg

Cycle Time Dump At Maximum Raise

1.4 sec

Cycle Time Lower Empty Float Down

4.1 sec

Cycle Time Raise From Carry Position

6.1 sec

Dimensions

Wheelbase

3,700 mm

Overall Width

3,450 mm

Overall Height

3,870 mm

Overall Length

9,630 mm

Ground Clearance

495 mm

Operating Range

Hinge Pin Height At Maximum Lift

4,560 mm

Loader Dump Clearance At Maximum Lift And45 Discharge

3,300 mm

Tire

Type

Tubeless, loader design tires

Tires S T D

29.5-25, 22 PR, L3

Option Include

26.5-25, 32 PR, L3 / 29.5-25, 28 PR, L3 / 29.5-25, 28 PR, L5 / 29.5 R25 XHA*

-These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog.
-The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
