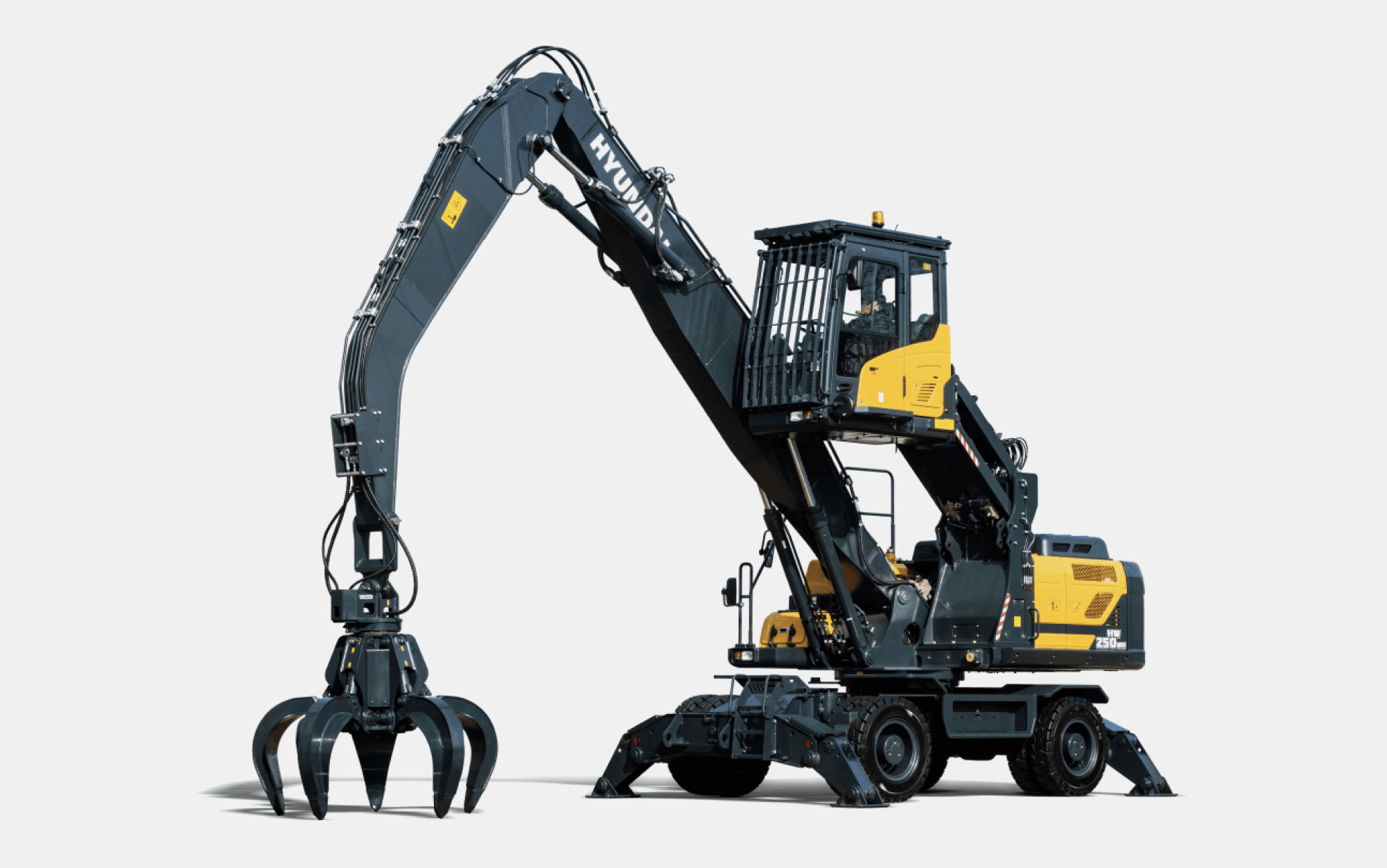

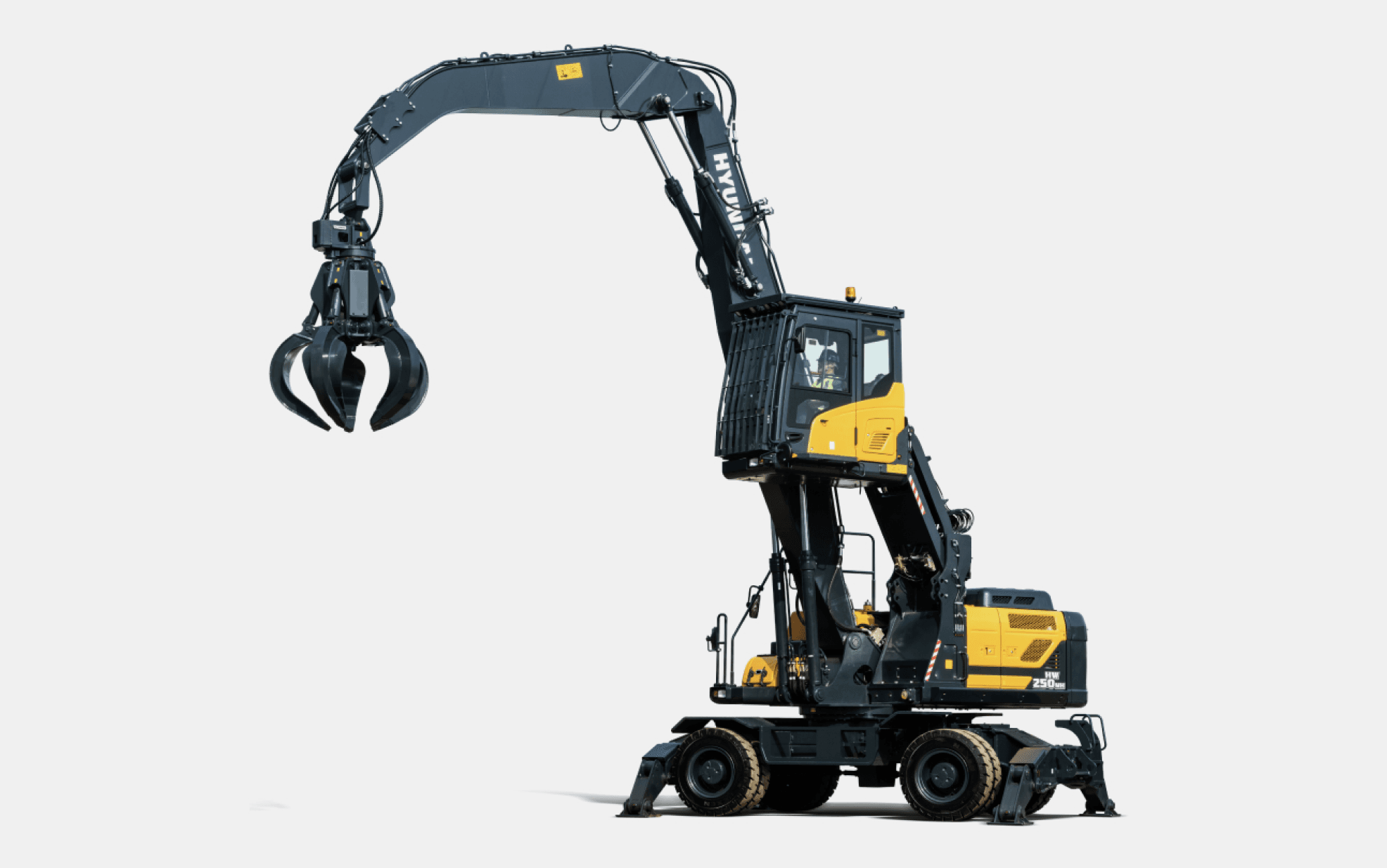

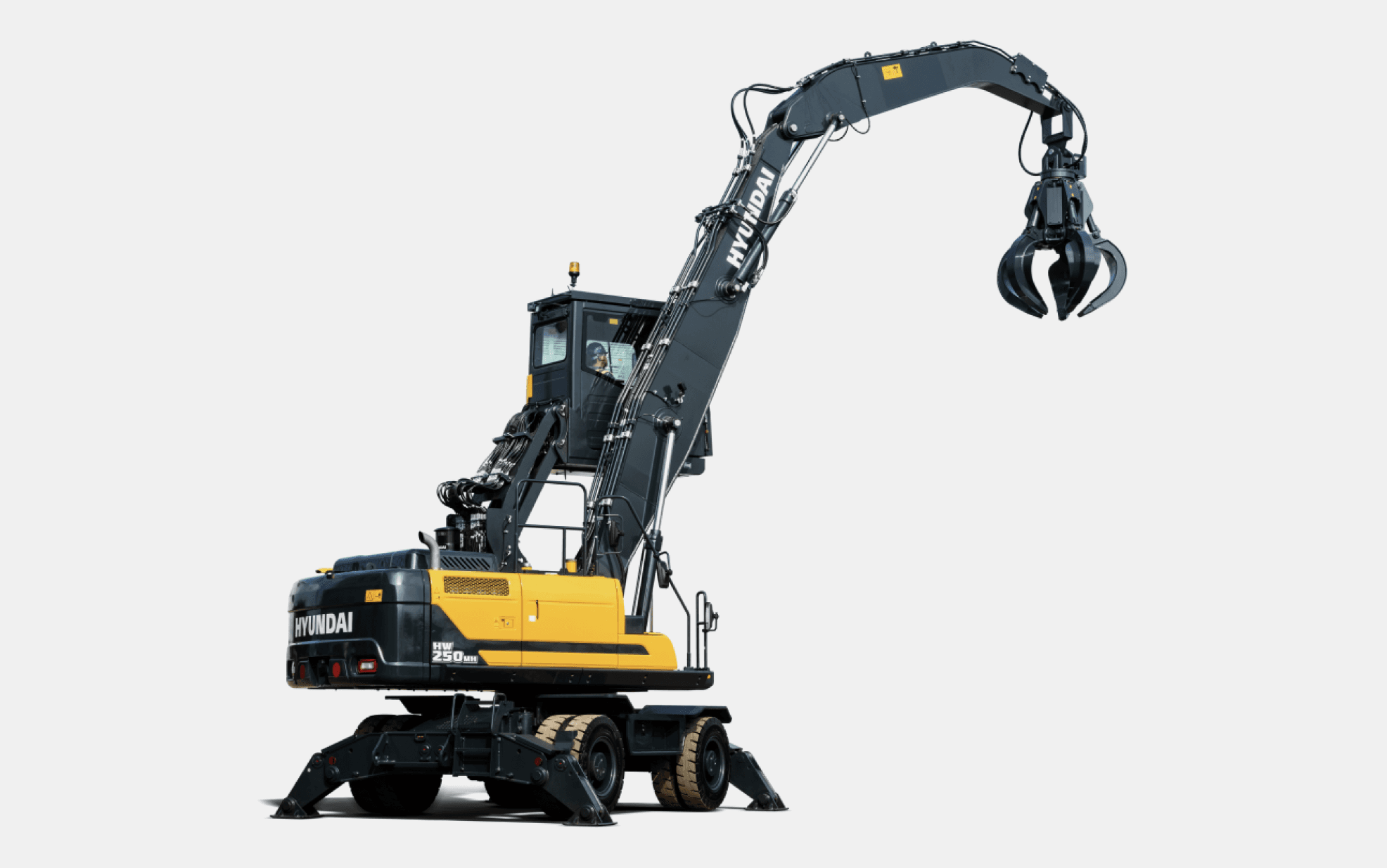

HW250MH
Type
Material Handlers
Operating Weight
26.1 ton
Emission
TIER 4f
Rated Power
183 hp / 2,000 rpm
Specifications
General
Operating Weight
26.1 ton
Rated Power
183 hp / 2000 rpm
Engine
Emission
TIER 4f
Max. Torque
85.7 kgf·m / 1,500 rpm
Engine Model
CUMMINS QSB6.7
Hydraulic System
Type
Material Handlers
Implement Circuit
350 kgf/cm²
Main Pumps Rated Flow
2x234 ℓ/min
Tank Capacity
Fuel Tank
310 ℓ
DEF/ ADBLUE Tank
27 ℓ
Hydraulic Tank
165 ℓ
Performance
Swing Speed
9.7 rpm
Travel Speed
35 km/h
Max. Gradeability
33 deg
Max. Traction Force
11,600 kgf
Dimensions
Overall Width
3,250 mm
Overall Height
2,530 mm
Overall Length
9,730 mm
Ground Clearance
353 mm
Tail Swing Radius
2,910 mm
Tumbler Distance
2,800 mm
Operating Range
Arm Length
4,500 mm
Boom Length
6,500 mm
Min. Swing Radius
3,000 mm
Max. Digging Depth
4,700 mm
Max. Digging Reach
10,700 mm
Max. Digging Height
12,000 mm
Max. Dumping Height
9,880 mm
- -These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog.
- -The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
