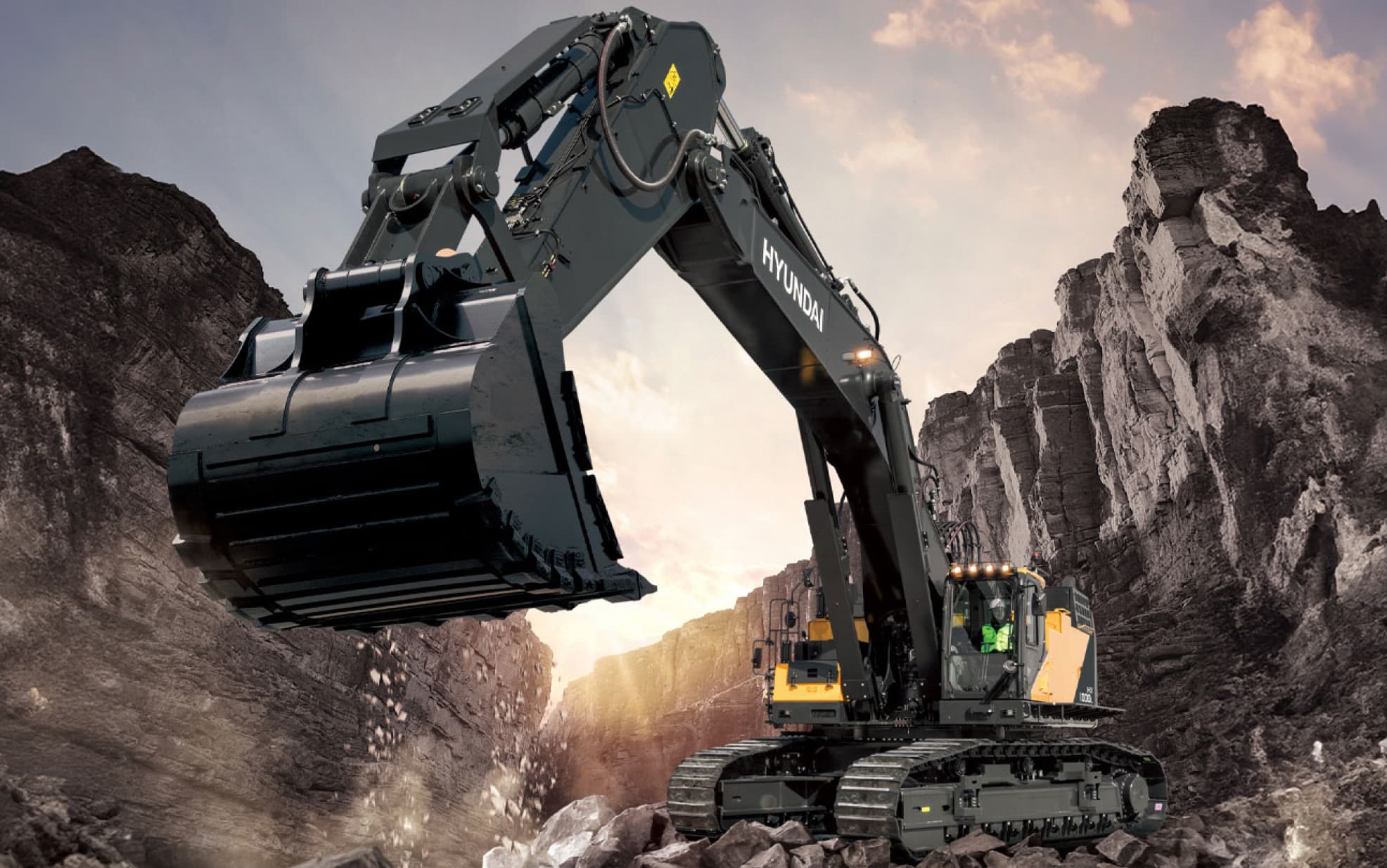

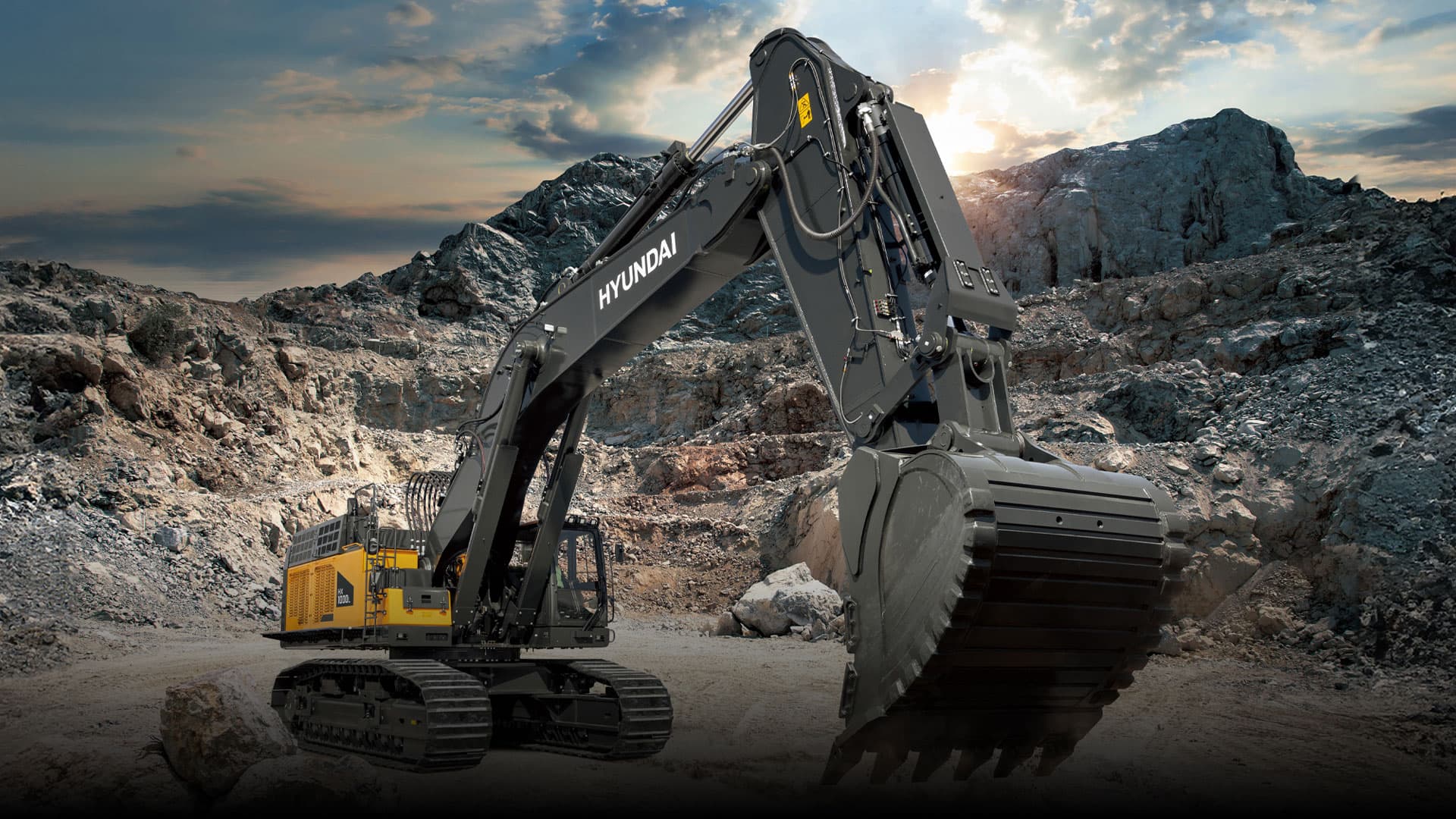

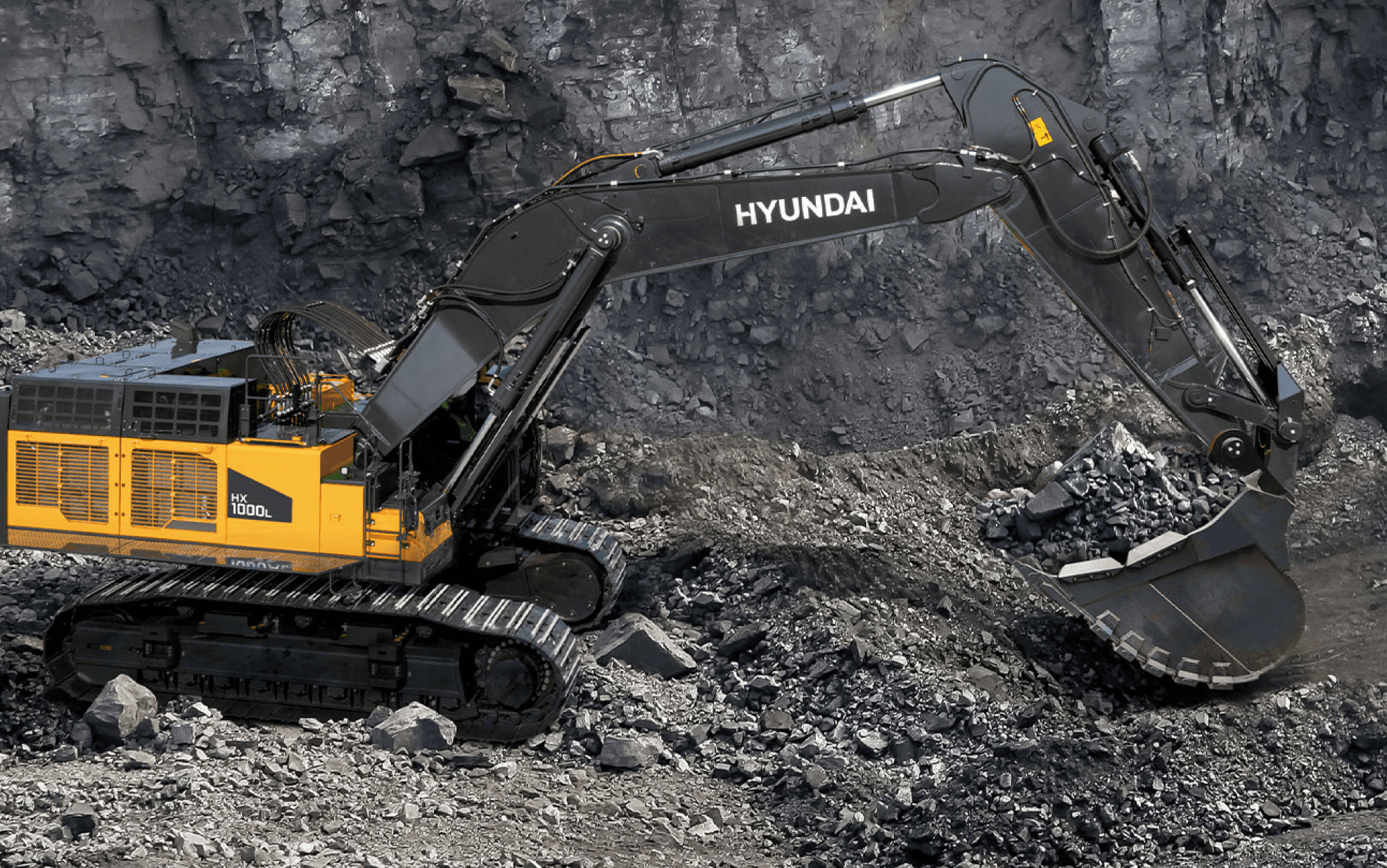

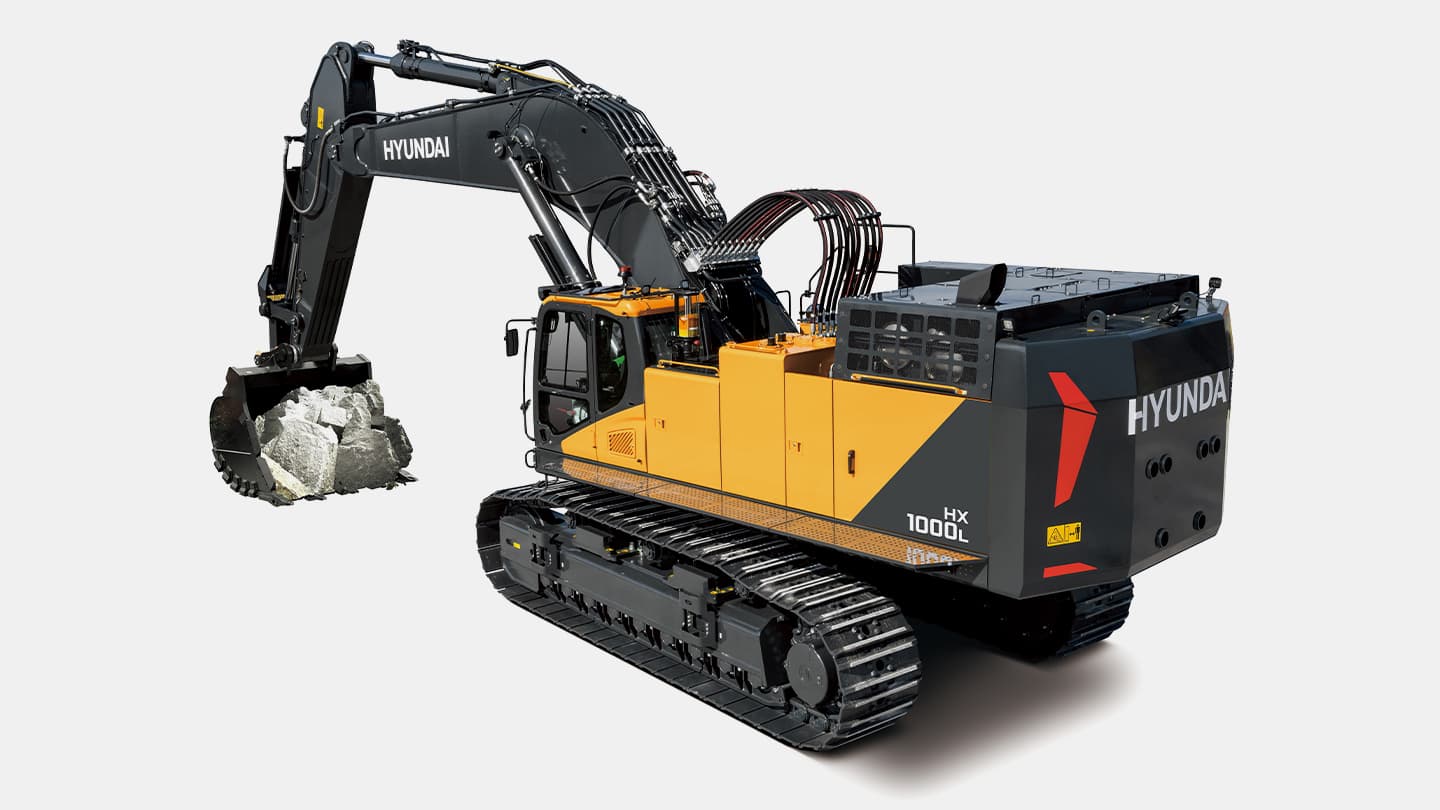

HX1000L
Type
Large Excavators
Operating Weight
100 ton
Emission
TIER 3
Rated Power
630 hp / 2,100 rpm
Specifications
General
Bucket Capacity
6.8 m³
Operating Weight
100 ton
Rated Power
630 hp / 2100 rpm
Engine
Emission
TIER 3
Max. Torque
282 kgf·m / 1,300 rpm
Engine Model
Perkins 2806D
Hydraulic System
Implement Circuit
367 kgf/cm²
Main Pumps Rated Flow
3x523 ℓ/min
Tank Capacity
Fuel Tank
1,100 ℓ
Hydraulic Tank
533 ℓ
Performance
Swing Speed
6.1 rpm
Travel Speed
4.3 km/h
Bucket Digging Force (ISO)
43,000 kgf
Arm Digging Force (ISO)
36,700 kgf
Max. Gradeability
35 deg
Max. Traction Force
60,600 kgf
Dimensions
Overall Width
3,440 mm
Overall Height
3,620 mm
Overall Length
14,600 mm
Ground Clearance
560 mm
Tail Swing Radius
4,620 mm
Tumbler Distance
3,550 mm
Operating Range
Arm Length
3,750 mm
Boom Length
8,400 mm
Min. Swing Radius
6,300 mm
Max. Digging Depth
8,800 mm
Max. Digging Reach
14,300 mm
Max. Digging Height
13,800 mm
Max. Dumping Height
9,440 mm
- -These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog.
- -The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
