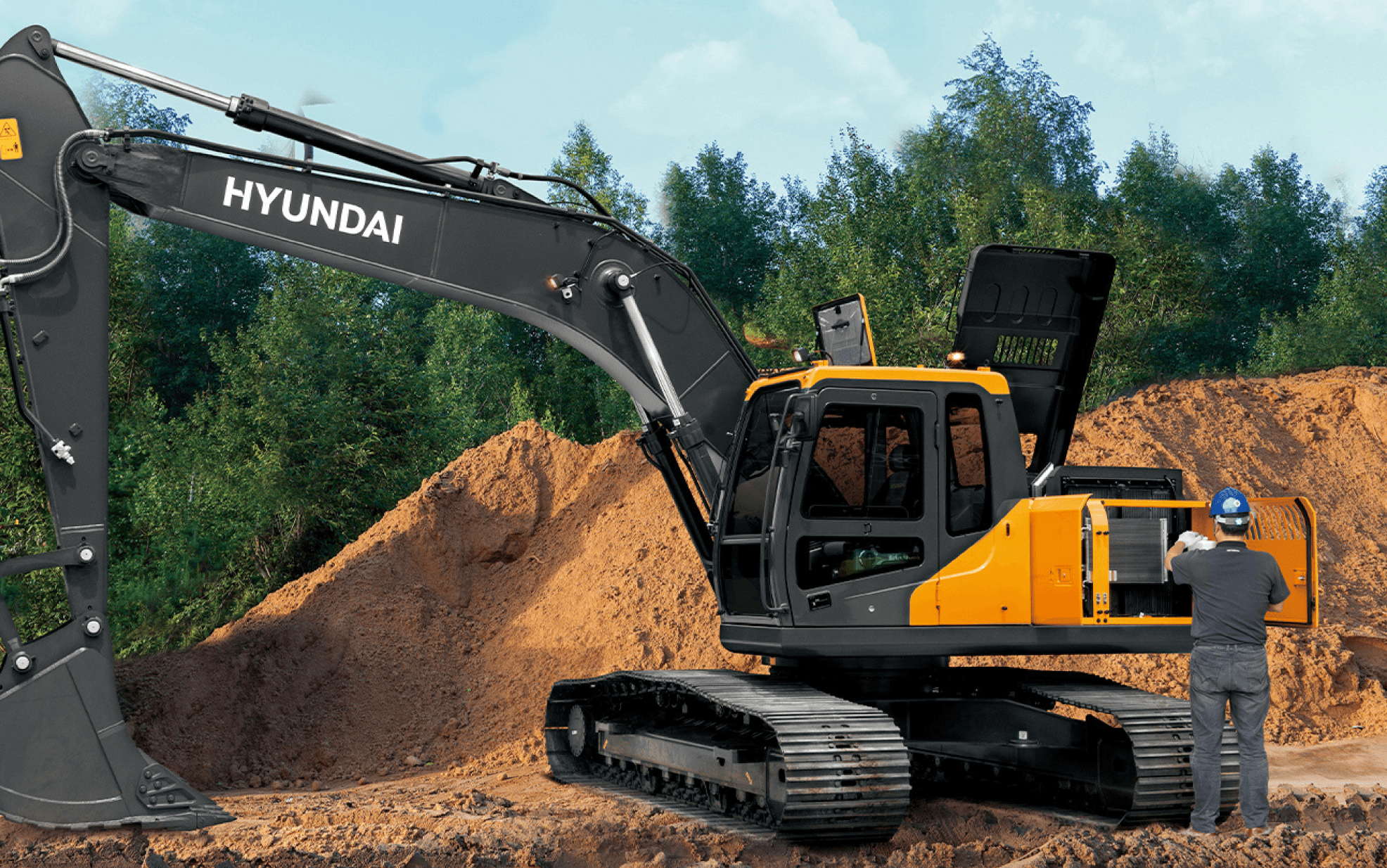

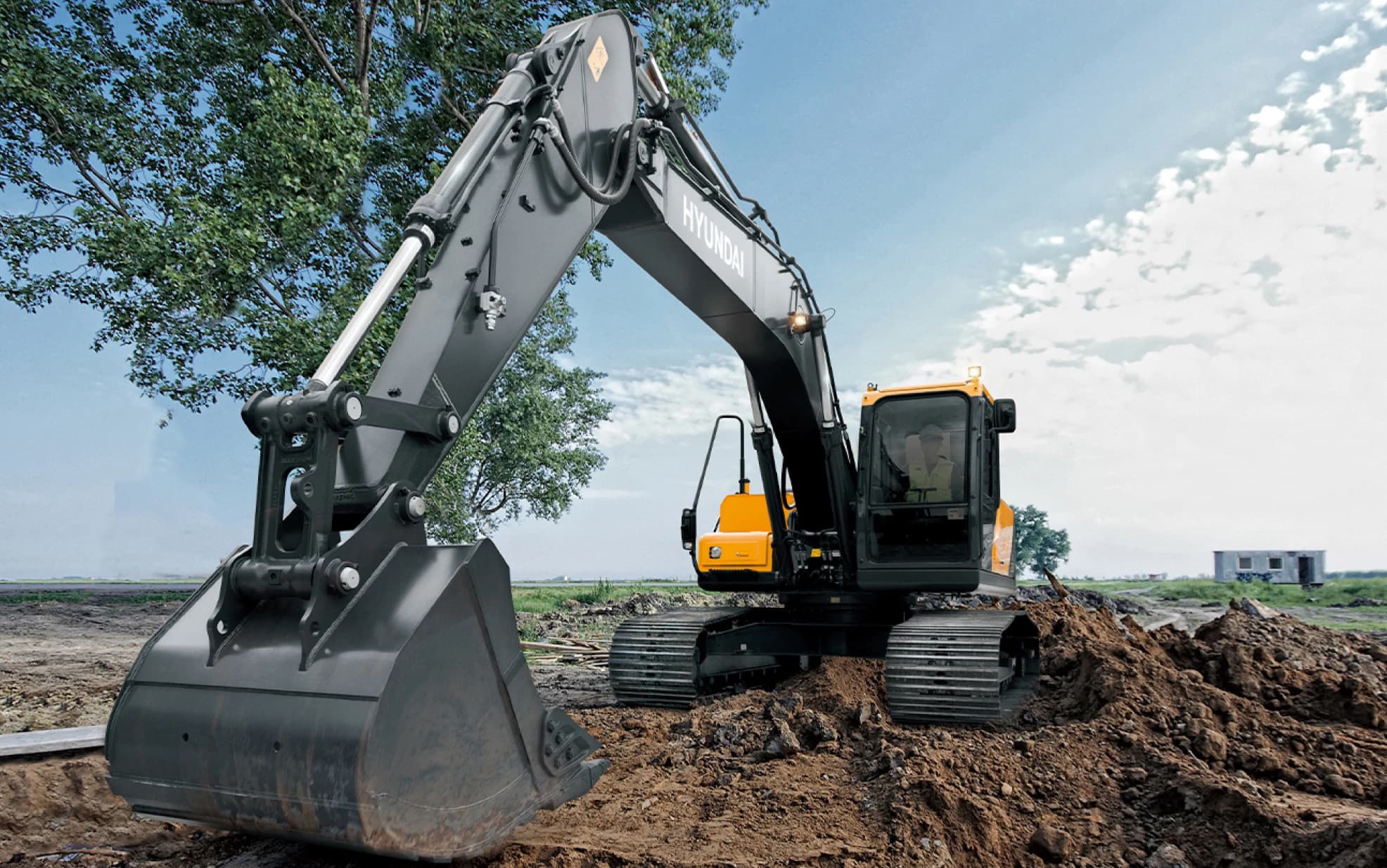

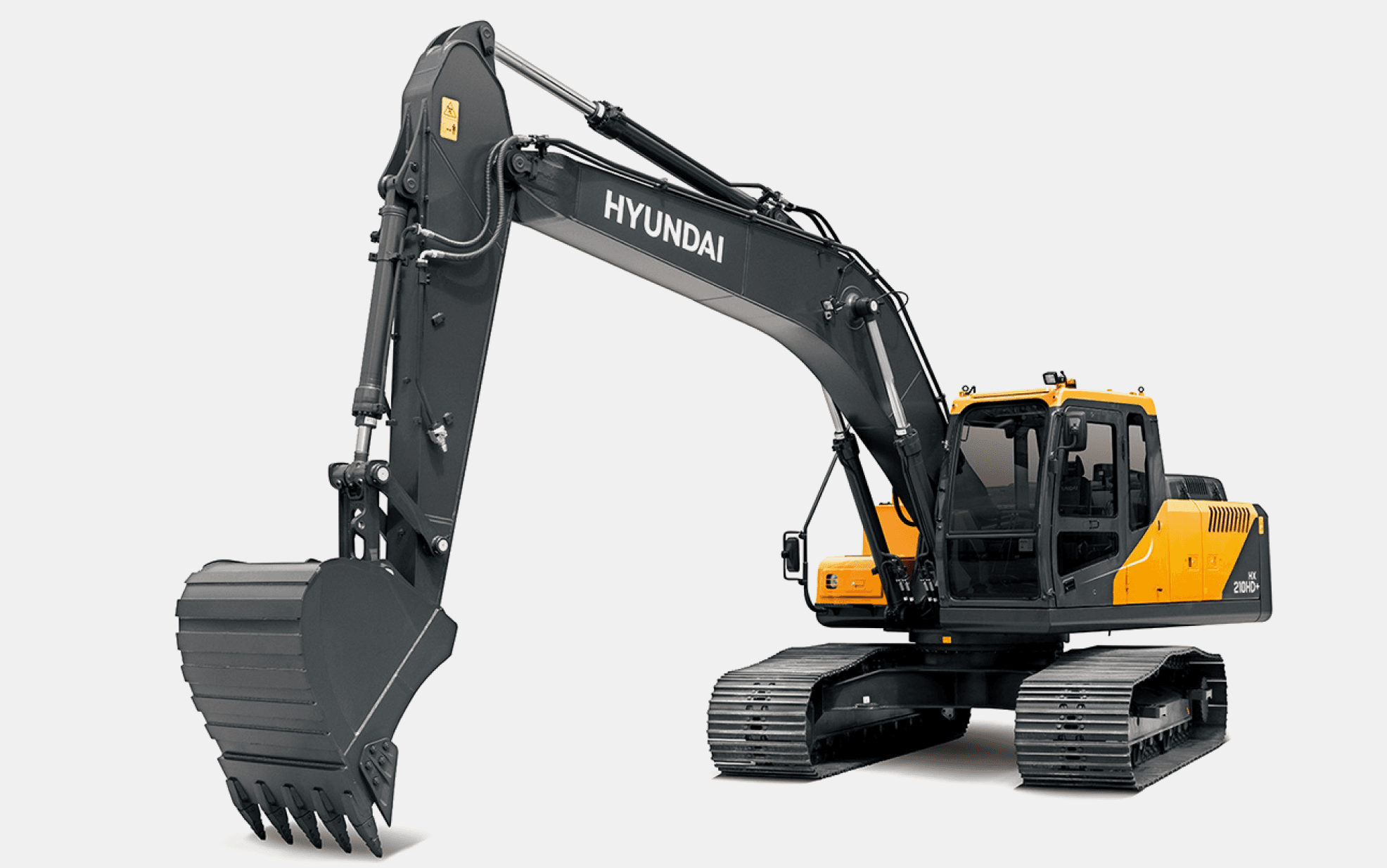

HX210HD
Type
Medium Excavators
Operating Weight
21.6 ton
Emission
~TIER 2
Rated Power
148 hp / 2,000 rpm
Specifications
General
Bucket Capacity
0.92 m³
Operating Weight
21.6 ton
Rated Power
148 hp / 2000 rpm
Engine
Emission
~TIER 2
Max. Torque
64 kgf·m / 1,300 rpm
Engine Model
Hyundai HM5.9
Hydraulic System
Implement Circuit
350 kgf/cm²
Main Pumps Rated Flow
2x234 ℓ/min
Tank Capacity
Fuel Tank
340 ℓ
Hydraulic Tank
160 ℓ
Performance
Swing Speed
12.2 rpm
Travel Speed
5.7 km/h
Bucket Digging Force (ISO)
15,500 kgf
Arm Digging Force (ISO)
10,900 kgf
Max. Gradeability
35 deg
Max. Traction Force
21,100 kgf
Dimensions
Overall Width
3,000 mm
Overall Height
3,000 mm
Overall Length
9,530 mm
Ground Clearance
470 mm
Tail Swing Radius
2,850 mm
Tumbler Distance
3,360 mm
Operating Range
Arm Length
2,920 mm
Boom Length
5,680 mm
Min. Swing Radius
3,670 mm
Max. Digging Depth
6,730 mm
Max. Digging Reach
9,980 mm
Max. Digging Height
9,600 mm
Max. Dumping Height
6,780 mm
- -These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog.
- -The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
