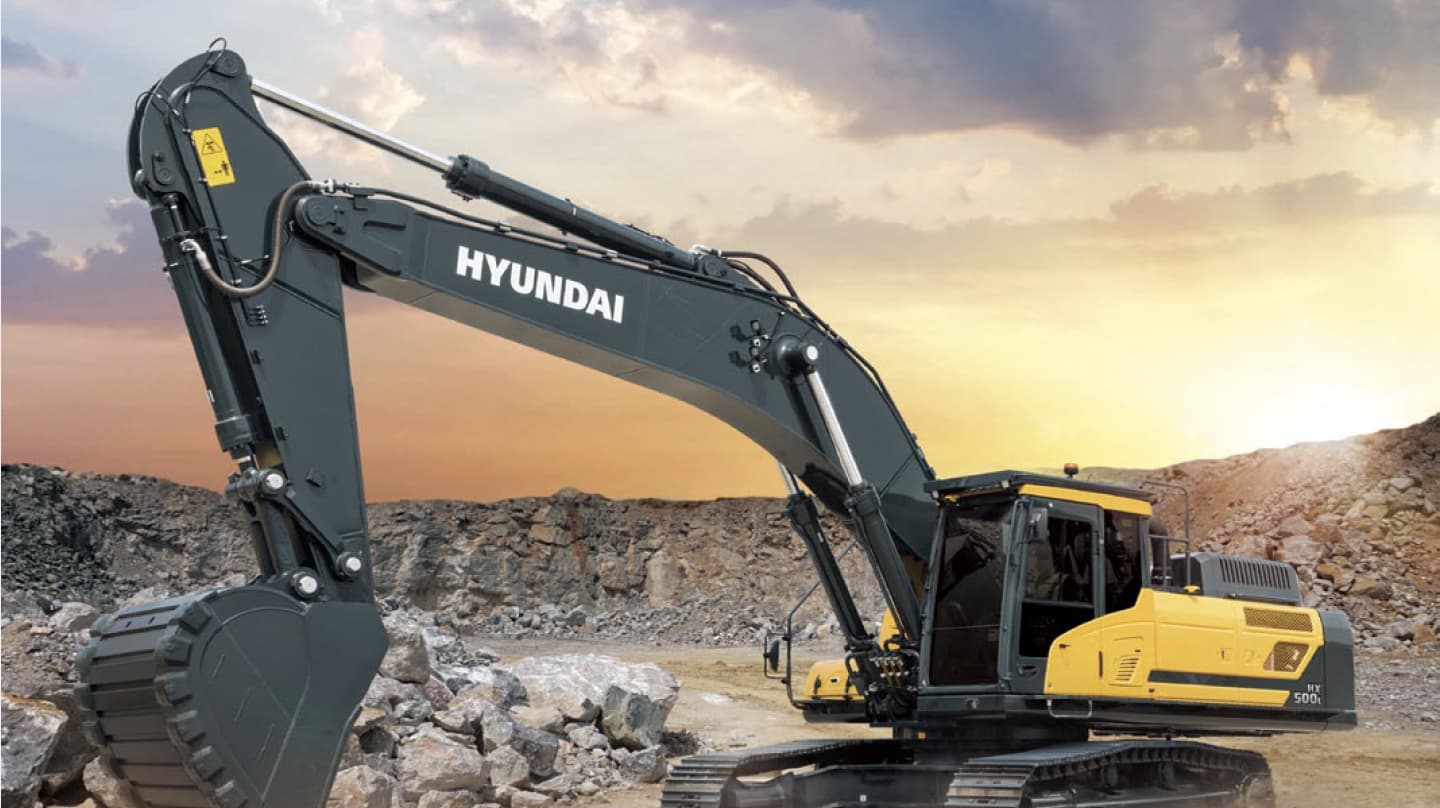

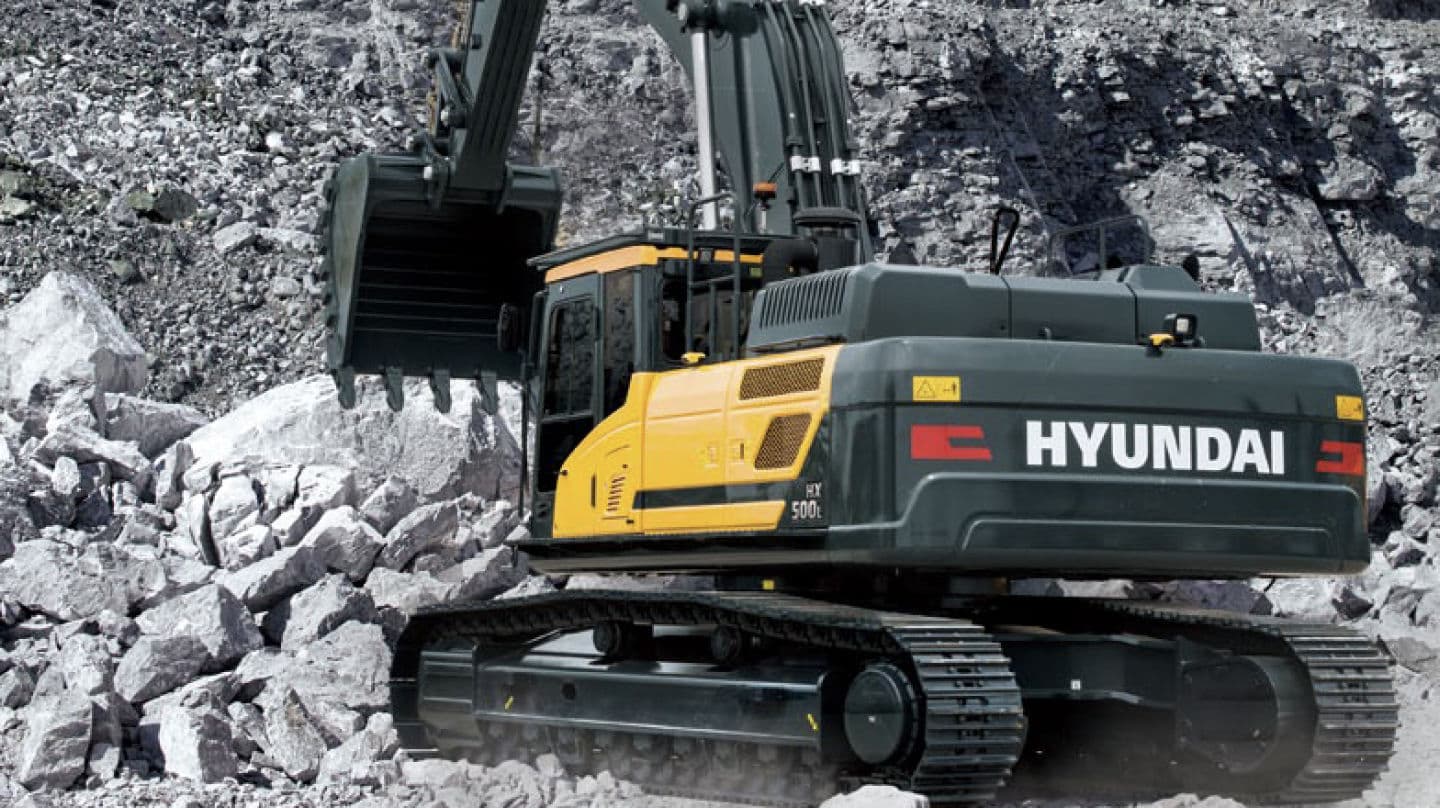

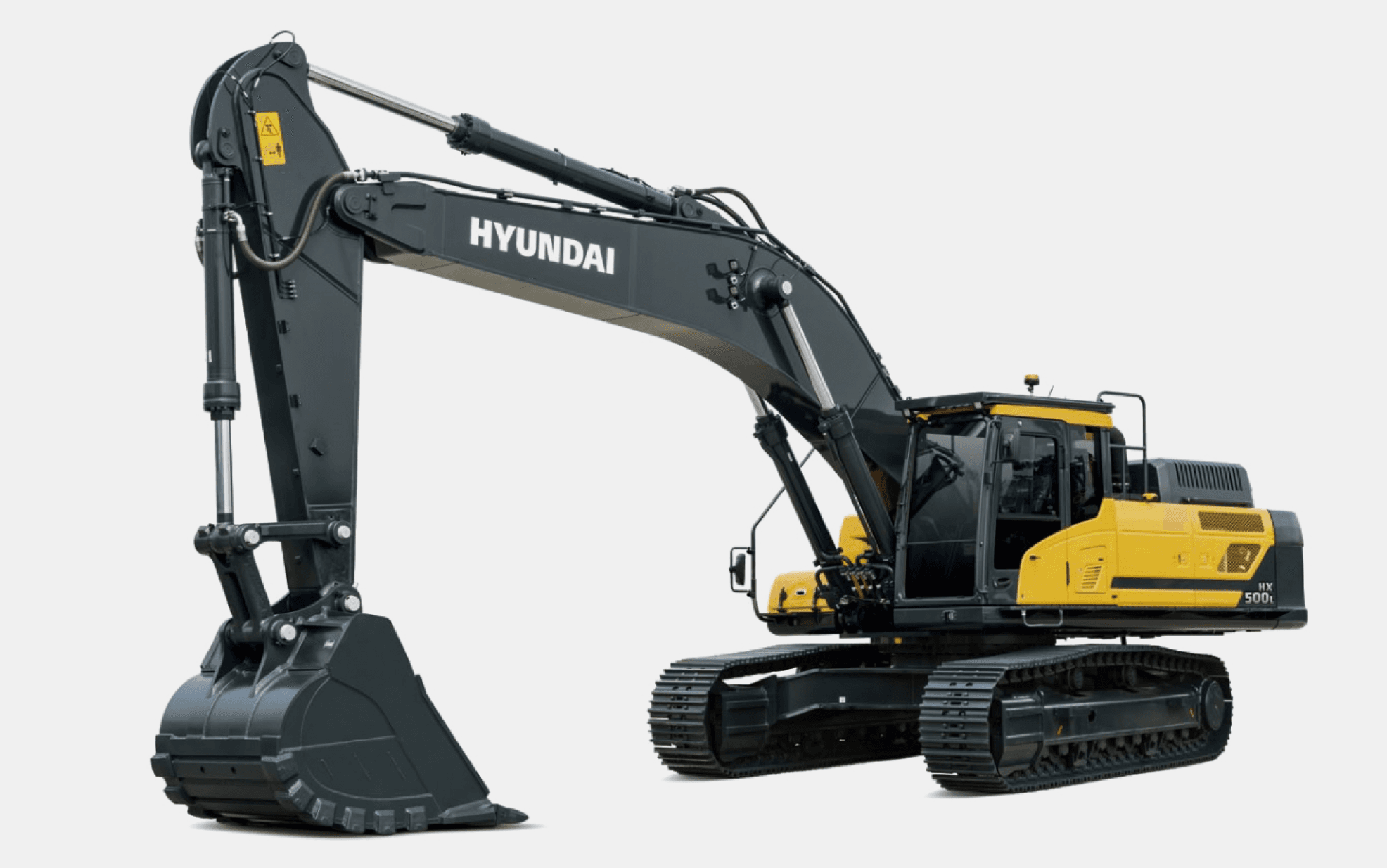

HX500L
Type
Large Excavators
Operating Weight
49.9 ton
Emission
TIER 3
Rated Power
335 hp / 2,100 rpm
Specifications
General
Bucket Capacity
3.58 m³
Operating Weight
49.9 ton
Rated Power
335 hp / 2100 rpm
Engine
Emission
TIER 3
Max. Torque
170 kgf·m / 1.400 rpm
Engine Model
CUMMINS / X12
Hydraulic System
Implement Circuit
330 kgf/cm²
Main Pumps Rated Flow
2×394 ℓ/min
Tank Capacity
Fuel Tank
660 ℓ
Hydraulic Tank
275 ℓ
Performance
Swing Speed
8.8 rpm
Travel Speed
5.5 km/h
Bucket Digging Force (ISO)
28,500 kgf
Arm Digging Force (ISO)
25,100 kgf
Max. Gradeability
35 deg
Max. Traction Force
39,700 kgf
Dimensions
Overall Width
3,340 mm
Overall Height
3,790 mm
Overall Length
11,700 mm
Ground Clearance
1,370 mm
Tail Swing Radius
3,800 mm
Tumbler Distance
4,470 mm
Operating Range
Arm Length
2,550 mm
Boom Length
6,550 mm
Min. Swing Radius
4,440 mm
Max. Digging Depth
7,730 mm
Max. Digging Reach
10,900 mm
Max. Digging Height
10,700 mm
Max. Dumping Height
7,210 mm
- -These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog.
- -The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
