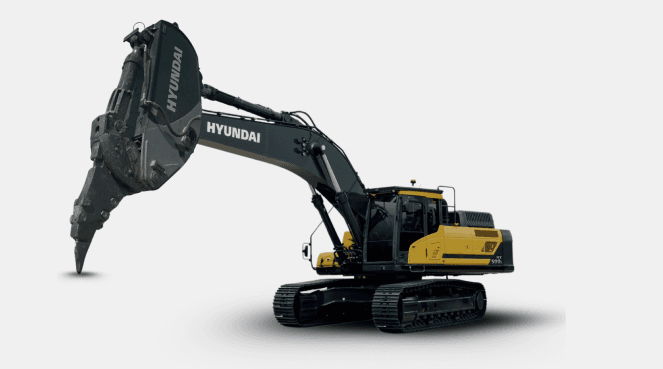

HX500L Rock Ripper
Type
Rock Ripper
Operating Weight
60.6 ton
Emission
TIER 3
Rated Power
335 hp / 2,100 rpm
Specifications
General
Operating Weight
60.6 ton
Rated Power
335 hp / 2100 rpm
Engine
Emission
TIER 3
Max. Torque
170 kgf·m / 1,400 rpm
Engine Model
CUMMINS / X12
Hydraulic System
Type
Others
Implement Circuit
330 kgf/cm2
Main Pumps Rated Flow
2x394 ℓ/min
Tank Capacity
Fuel Tank
660 ℓ
Hydraulic Tank
275 ℓ
Performance
Swing Speed
8.8 rpm
Travel Speed
5.5 km/h
Max. Gradeability
35 deg
Ripper Penetration Depth
1,800 mm
Dimensions
Overall Width
3,340 mm
Overall Height
3,790 mm
Overall Length
11,700 mm
Ground Clearance
1,370 mm
Tail Swing Radius
3,800 mm
Tumbler Distance
4,470 mm
- -These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog.
- -The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
