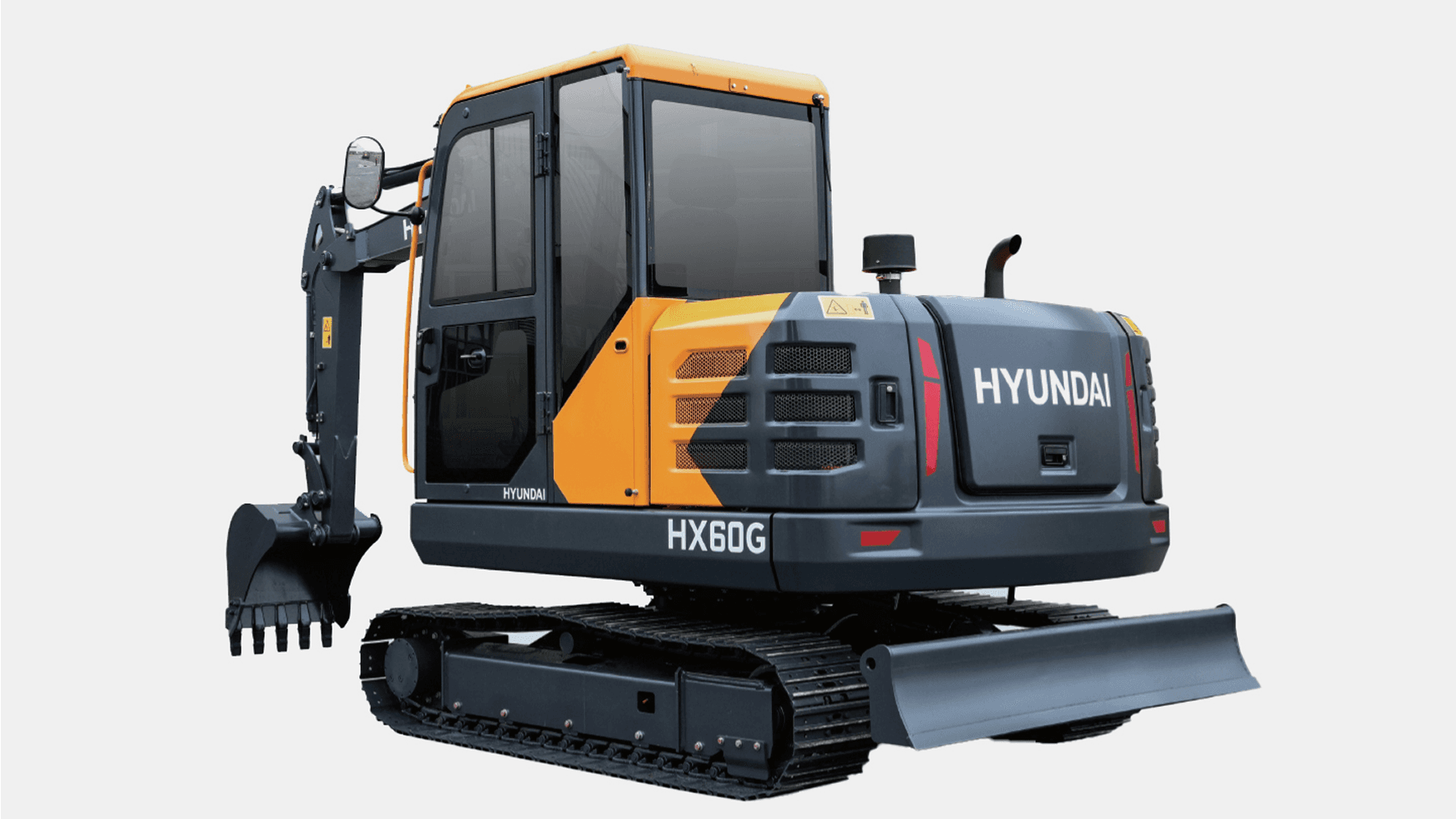

HX60G
Type
Compact Excavators
Operating Weight
5.85 ton
Emission
~TIER 2
Rated Power
48.5 hp / 2,100 rpm
Specifications
General
Bucket Capacity
0.25 m³
Operating Weight
5.85 ton
Rated Power
48.5 hp / 2100 rpm
Engine
Emission
~TIER 2
Engine Model
YANMAR 4TNV94L
Hydraulic System
Main Pumps Rated Flow
151 ℓ/min
Tank Capacity
Fuel Tank
130 ℓ
Hydraulic Tank
80 ℓ
Performance
Swing Speed
11 rpm
Travel Speed
4.2 km/h
Bucket Digging Force (ISO)
4,080 kgf
Arm Digging Force (ISO)
2,860 kgf
Max. Gradeability
30 deg
Max. Traction Force
5,300 kgf
Dimensions
Overall Width
2,000 mm
Overall Height
2,630 mm
Overall Length
5,670 mm
Ground Clearance
332 mm
Tail Swing Radius
1,700 mm
Operating Range
Arm Length
1,550 mm
Boom Length
3,000 mm
Min. Swing Radius
2,030 mm
Max. Digging Depth
3,810 mm
Max. Digging Reach
5,950 mm
Max. Digging Height
5,980 mm
Max. Dumping Height
4,190 mm
- -These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog.
- -The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
