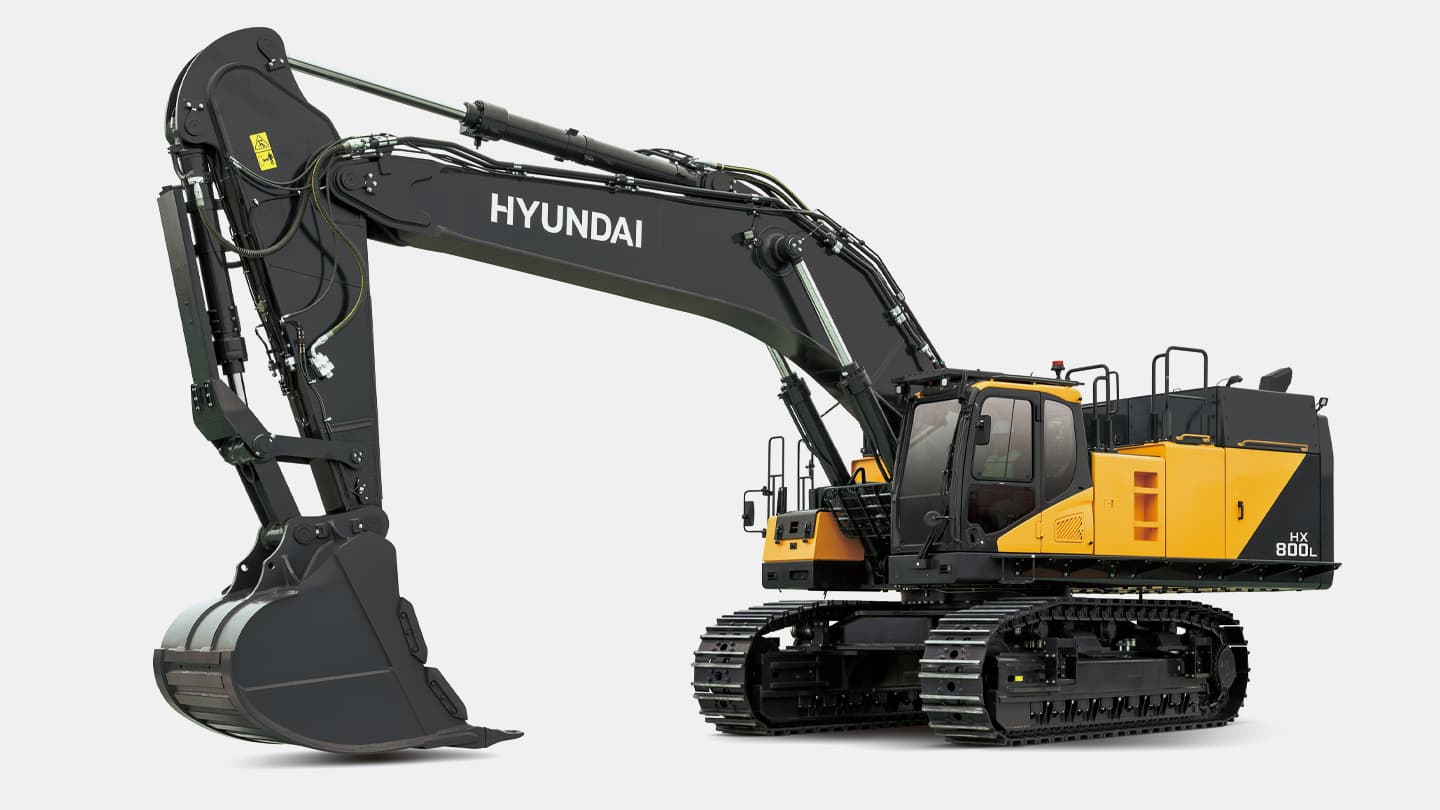

HX800L
Type
Large Excavators
Operating Weight
77.7 ton
Emission
TIER 3
Rated Power
354 hp / 1,800 rpm
Specifications
General
Bucket Capacity
5.58 m³
Operating Weight
77.7 ton
Rated Power
354 hp / 1800 rpm
Engine
Emission
TIER 3
Max. Torque
222 kgf·m / 1,400 rpm
Engine Model
Perkins 2506D
Hydraulic System
Main Pumps Rated Flow
2x504 ℓ/min
Tank Capacity
Fuel Tank
880 ℓ
Hydraulic Tank
435 ℓ
Performance
Swing Speed
7.5 rpm
Travel Speed
4.8 km/h
Bucket Digging Force (ISO)
34,800 kgf
Arm Digging Force (ISO)
29,300 kgf
Max. Gradeability
35 deg
Max. Traction Force
54,400 kgf
Dimensions
Overall Width
3,560 mm
Overall Height
3,530 mm
Overall Length
13,200 mm
Ground Clearance
850 mm
Tail Swing Radius
4,010 mm
Tumbler Distance
2,750 mm
Operating Range
Arm Length
3,550 mm
Boom Length
7,700 mm
Min. Swing Radius
5,730 mm
Max. Digging Depth
8,350 mm
Max. Digging Reach
13,200 mm
Max. Digging Height
12,100 mm
Max. Dumping Height
8,410 mm
- -These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog.
- -The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
