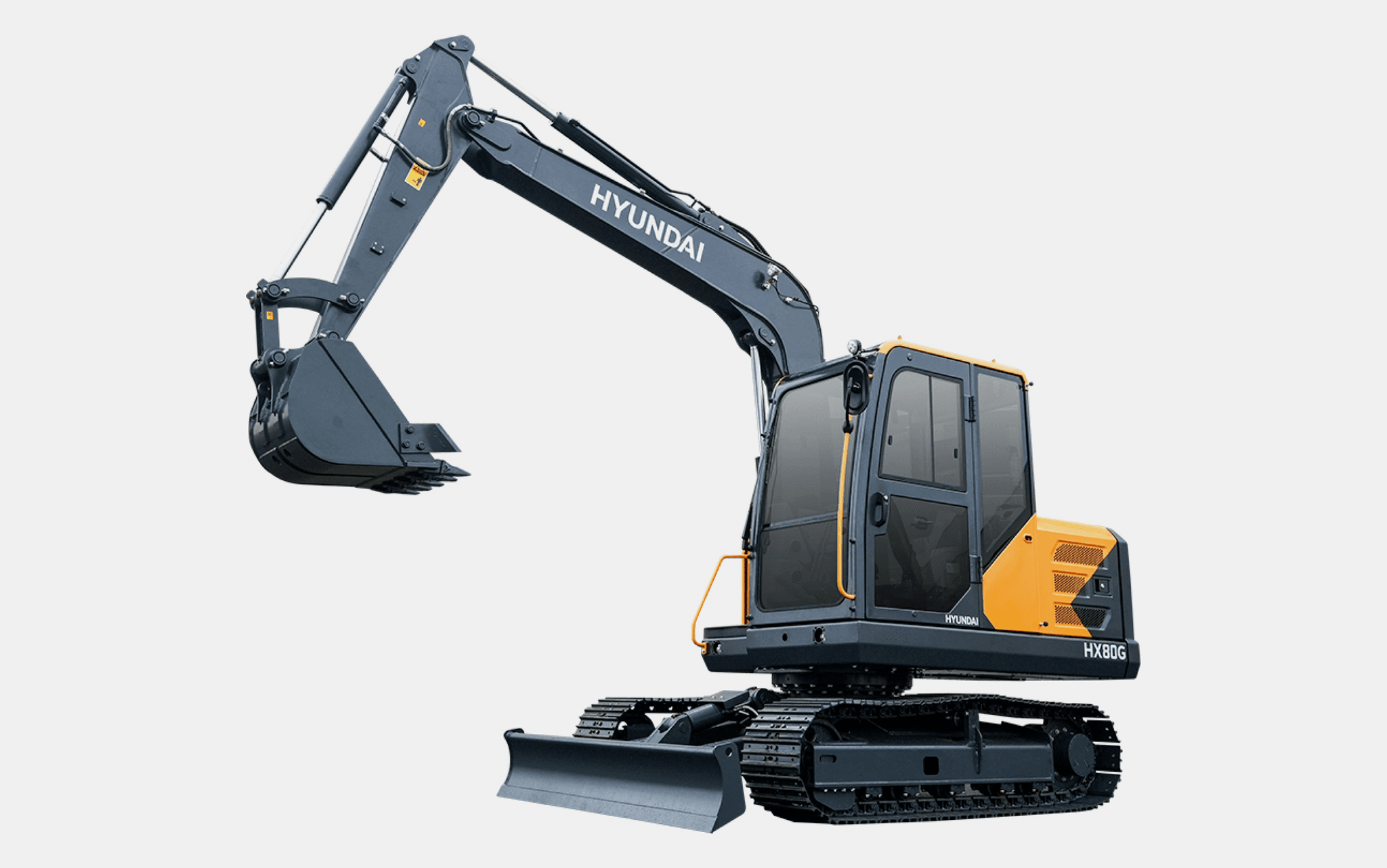

HX80G
Type
Compact Excavators
Operating Weight
7.54 ton
Emission
~TIER 2
Rated Power
62 hp / 2,200 rpm
Specifications
General
Bucket Capacity
0.28 m³
Operating Weight
7.54 ton
Rated Power
62 hp / 2200 rpm
Engine
Emission
~TIER 2
Engine Model
YANMAR 4TNV98
Hydraulic System
Main Pumps Rated Flow
156 ℓ/min
Tank Capacity
Fuel Tank
134 ℓ
Hydraulic Tank
90 ℓ
Performance
Swing Speed
10.5 rpm
Travel Speed
4 km/h
Bucket Digging Force (ISO)
5,710 kgf
Arm Digging Force (ISO)
3,880 kgf
Max. Gradeability
30 deg
Max. Traction Force
7,340 kgf
Dimensions
Overall Width
2,250 mm
Overall Height
2,780 mm
Overall Length
6,310 mm
Ground Clearance
367 mm
Tail Swing Radius
1,930 mm
Operating Range
Arm Length
1,620 mm
Boom Length
3,720 mm
Min. Swing Radius
1,930 mm
Max. Digging Depth
4,070 mm
Max. Digging Reach
6,290 mm
Max. Digging Height
7,050 mm
Max. Dumping Height
5,070 mm
- -These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog.
- -The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
