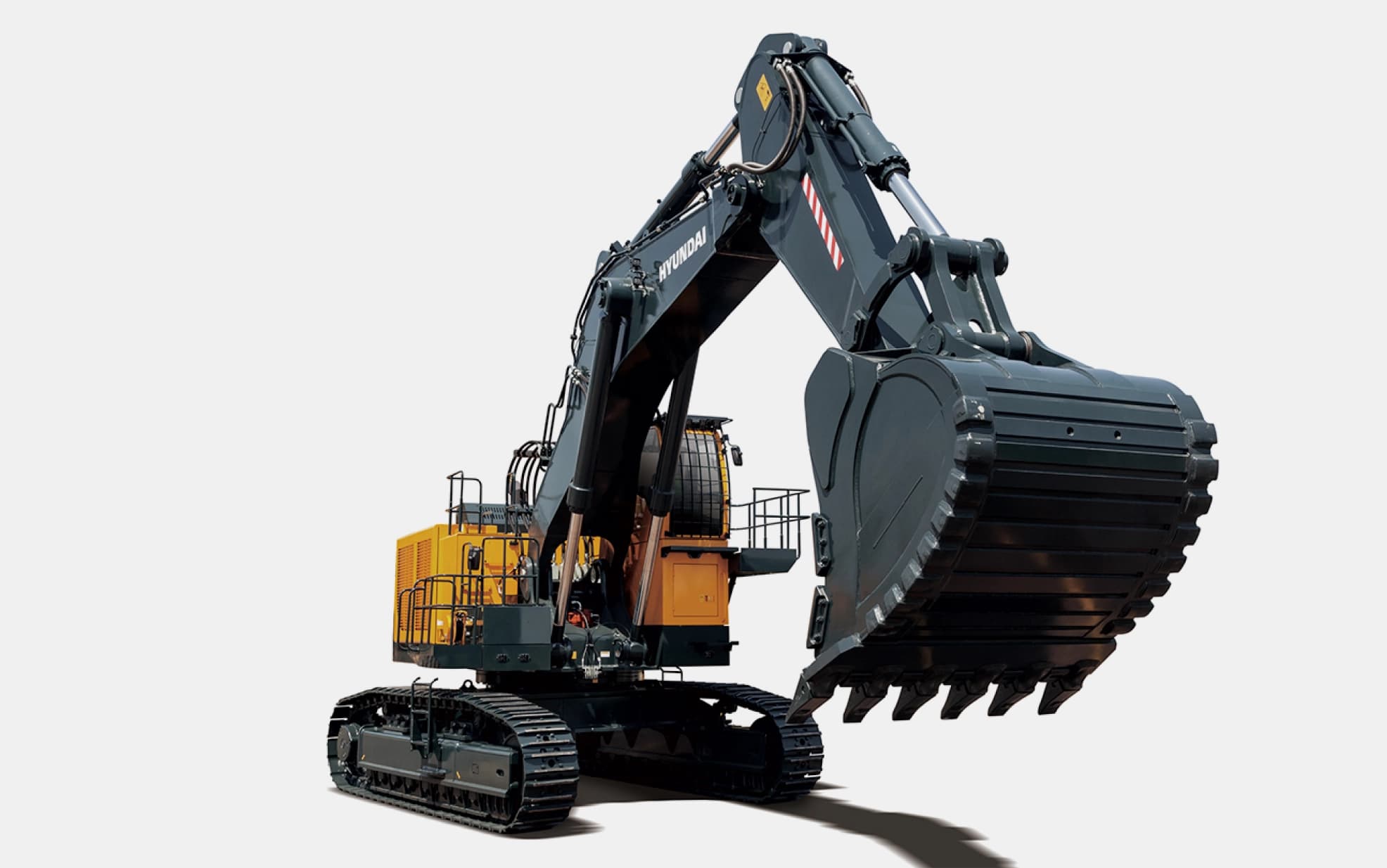

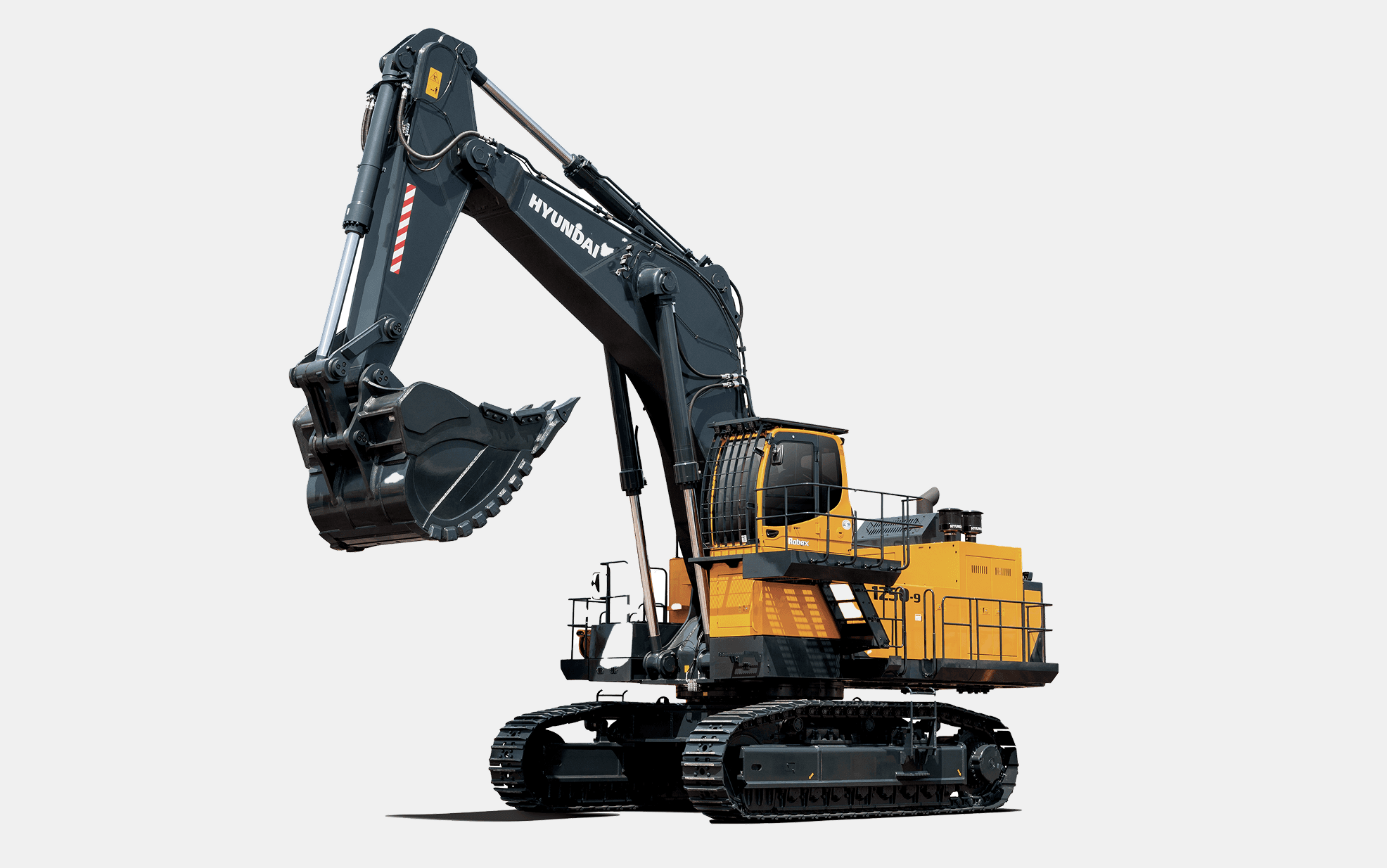

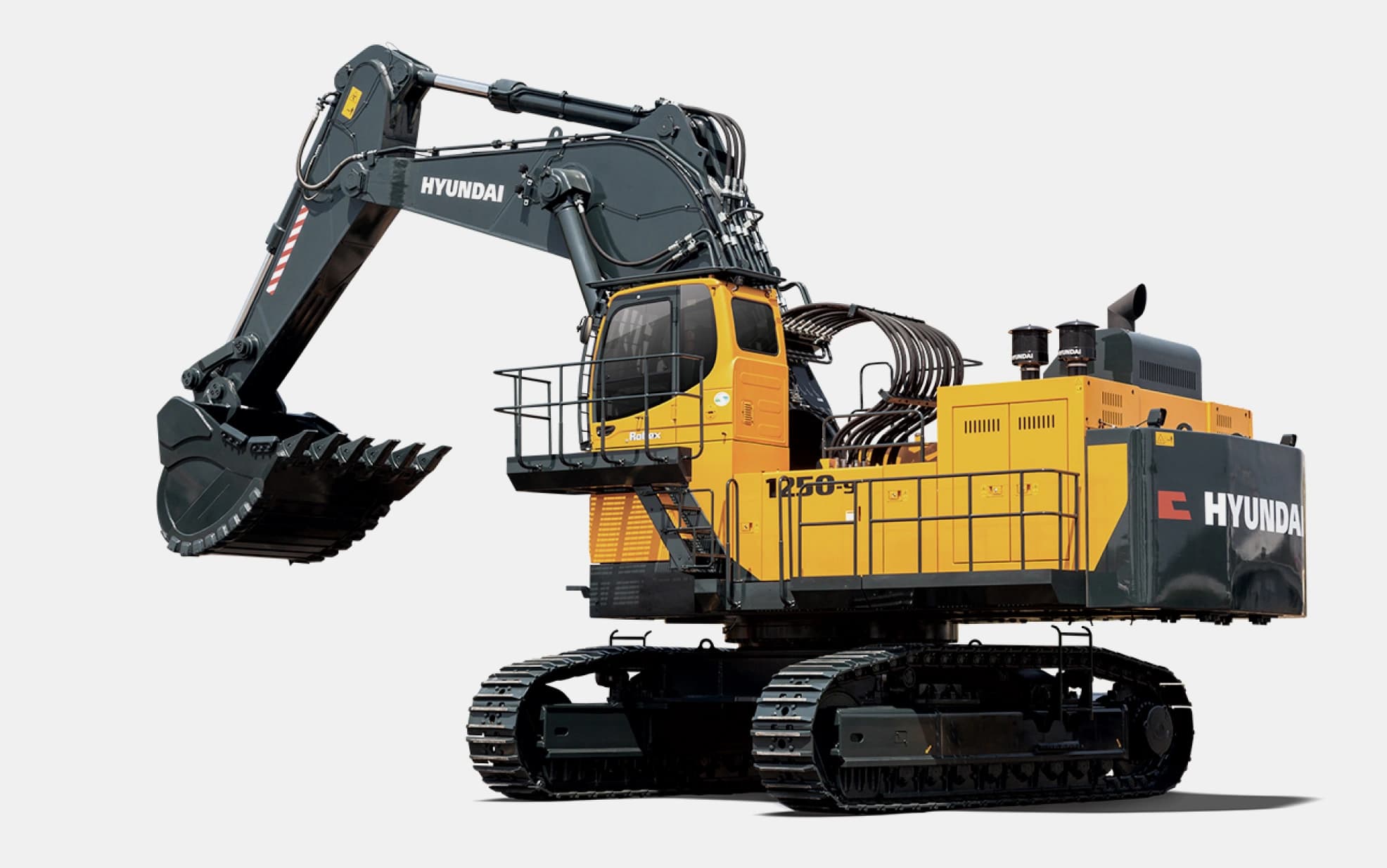

R1250-9
Type
Large Excavators
Operating Weight
121 ton
Emission
~TIER 2
Rated Power
760 hp / 1,800 rpm
Specifications
General
Bucket Capacity
8.57 m³
Operating Weight
121 ton
Rated Power
760 hp / 1800 rpm
Engine
Emission
~TIER 2
Max. Torque
354 kgf·m / 1,350 rpm
Engine Model
CUMMINS QSK23
Hydraulic System
Implement Circuit
320 kgf/cm²
Main Pumps Rated Flow
3x504 ℓ/min
Tank Capacity
Fuel Tank
1,480 ℓ
Hydraulic Tank
670 ℓ
Performance
Swing Speed
5.6 rpm
Travel Speed
3.2 km/h
Bucket Digging Force (ISO)
59,300 kgf
Arm Digging Force (ISO)
43,800 kgf
Max. Gradeability
35 deg
Max. Traction Force
70,200 kgf
Dimensions
Overall Width
5,560 mm
Overall Height
6,190 mm
Overall Length
14,500 mm
Ground Clearance
1,830 mm
Tail Swing Radius
4,870 mm
Tumbler Distance
5,010 mm
Operating Range
Arm Length
3,440 mm
Boom Length
7,550 mm
Min. Swing Radius
6,550 mm
Max. Digging Depth
8,010 mm
Max. Digging Reach
13,800 mm
Max. Digging Height
12,400 mm
Max. Dumping Height
7,790 mm
- -These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog.
- -The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
