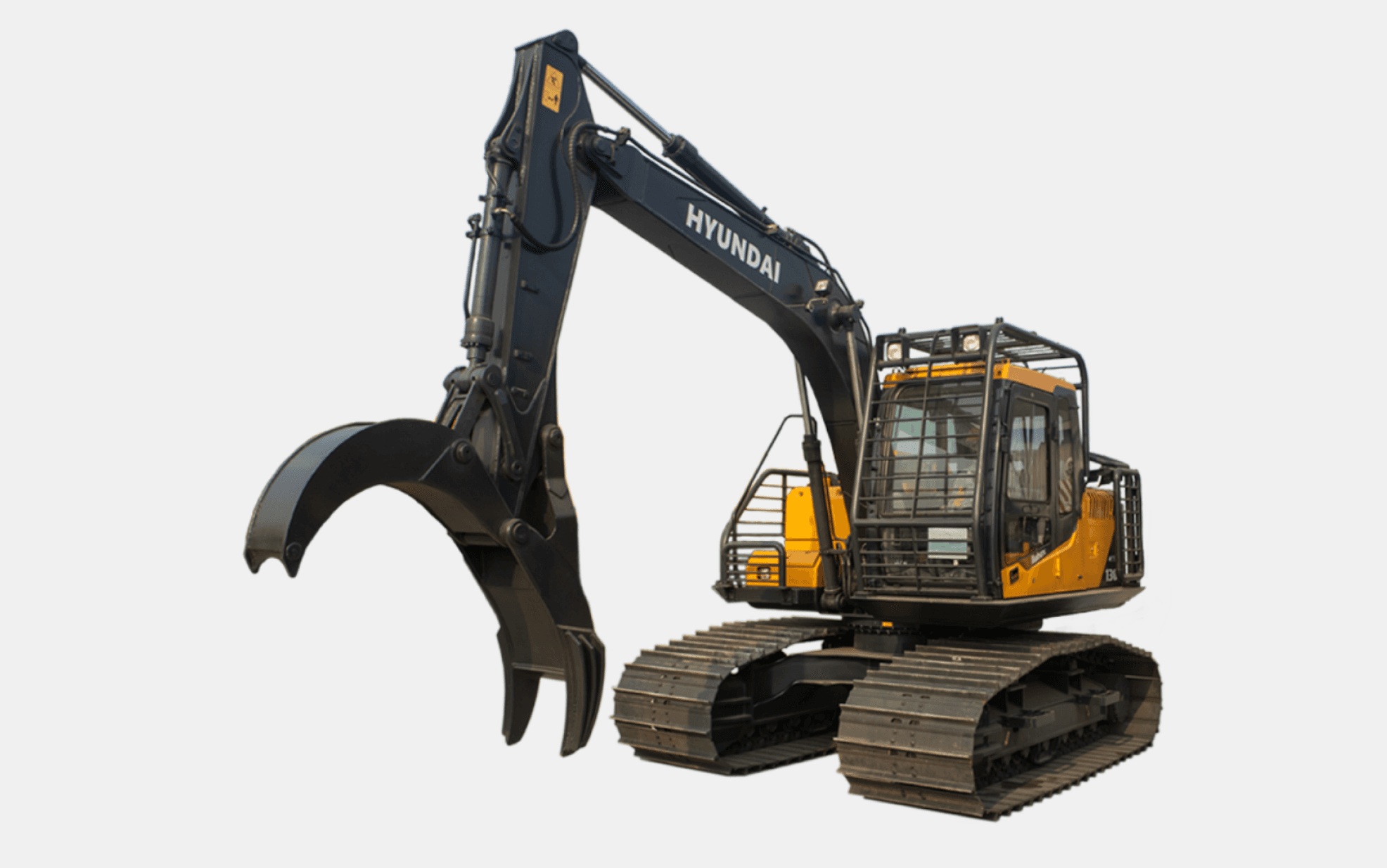

R130F FLG
Type
Fix Log Grapplers
Operating Weight
16.2 ton
Emission
~TIER 2
Rated Power
94 hp / 1,950 rpm
Specifications
General
Operating Weight
16.2 ton
Rated Power
94 hp / 1950 rpm
Engine
Emission
~TIER 2
Max. Torque
36.5 kgf·m / 1,400 rpm
Engine Model
Hyundai HM4.2
Hydraulic System
Implement Circuit
330 kgf/cm²
Main Pumps Rated Flow
2x127 ℓ/min
Tank Capacity
Fuel Tank
250 ℓ
Hydraulic Tank
100 ℓ
Performance
Swing Speed
13 rpm
Travel Speed
4.37 km/h
Max. Gradeability
35 deg
Max. Traction Force
15,200 kgf
Dimensions
Overall Width
3,000 mm
Overall Height
3,000 mm
Overall Length
7,240 mm
Ground Clearance
650 mm
Tail Swing Radius
2,130 mm
Tumbler Distance
3,010 mm
Operating Range
Arm Length
2,260 mm
Boom Length
4,300 mm
Min. Swing Radius
2,320 mm
Max. Digging Depth
4,820 mm
Max. Digging Reach
7,730 mm
Max. Dumping Height
5,990 mm
- -These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog.
- -The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
