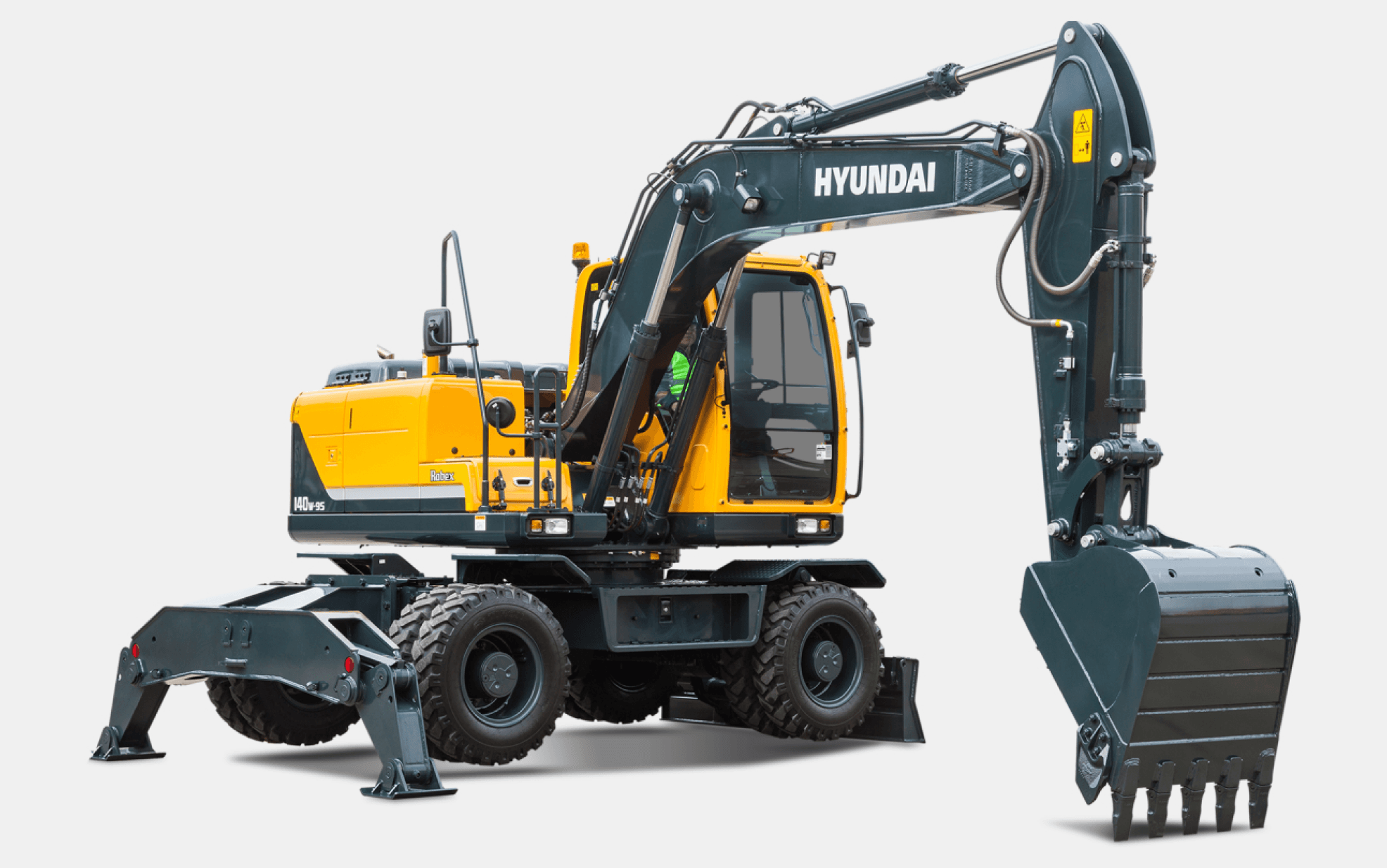

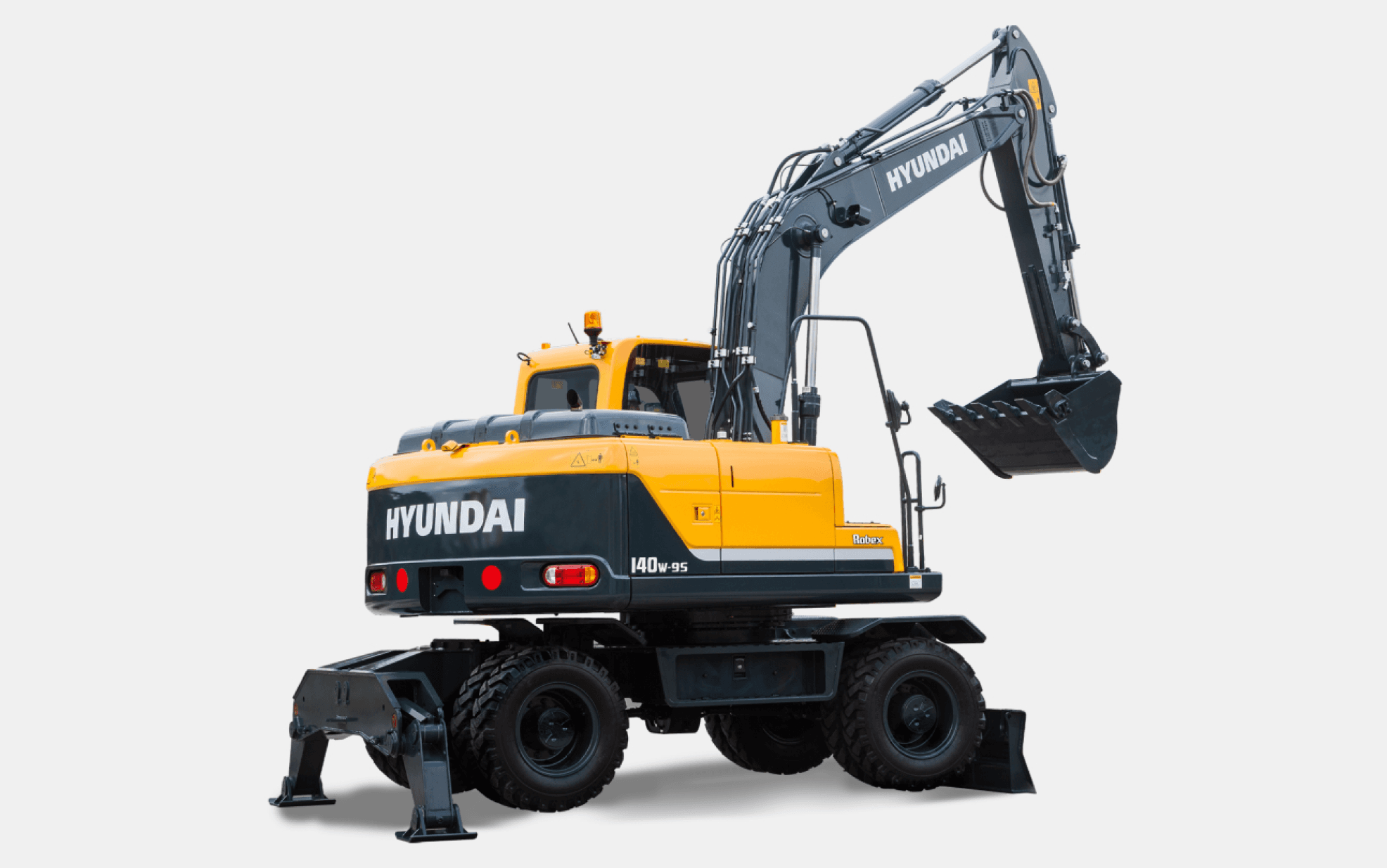

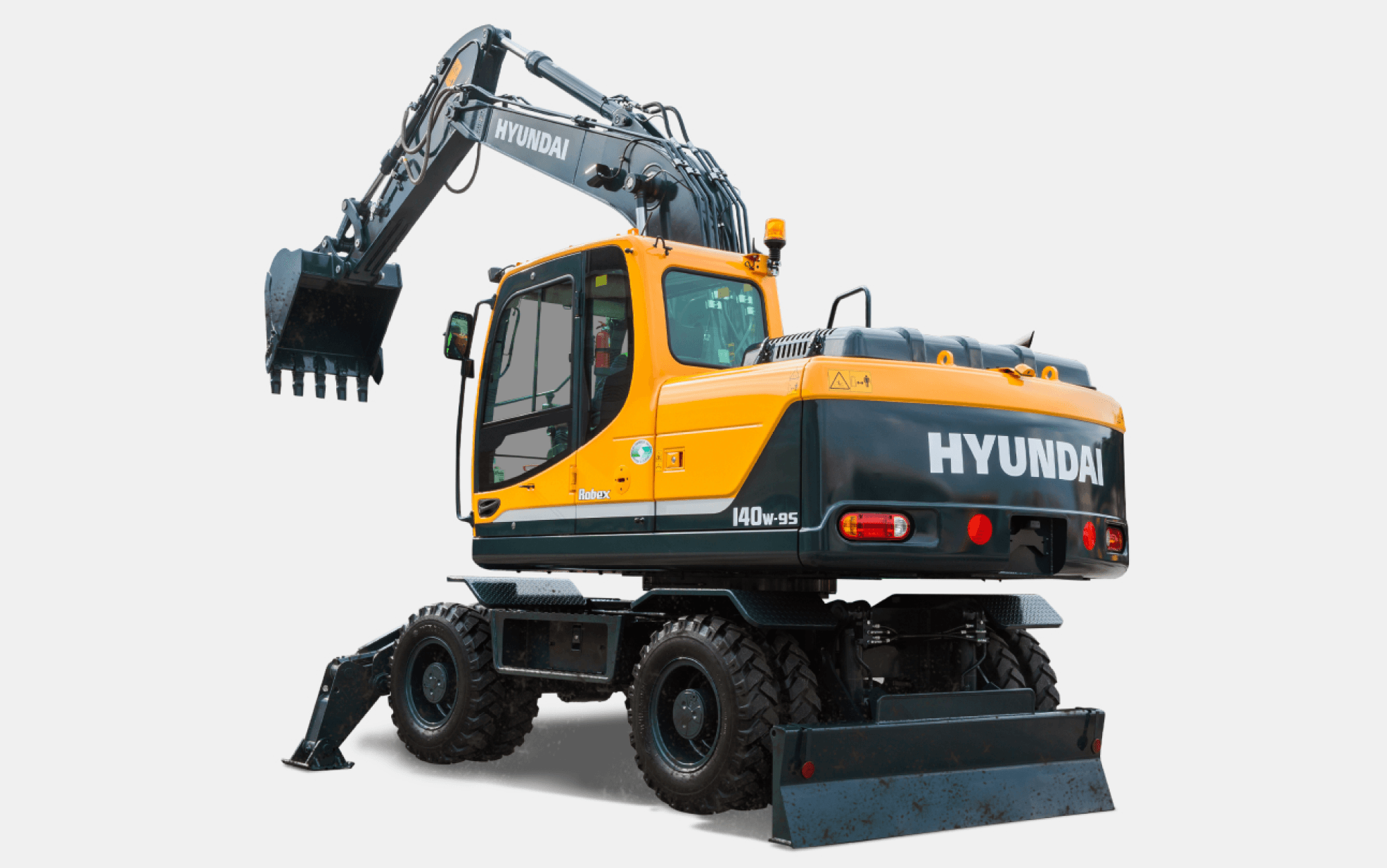

R140W-9S
Type
-
Operating Weight
13.7 ton
Emission
~TIER 2
Rated Power
113 hp / 2,100 rpm
Specifications
General
Bucket Capacity
0.58 m³
Operating Weight
13.7 ton
Rated Power
113 hp / 2100 rpm
Engine
Emission
~TIER 2
Max. Torque
45.6 kgf·m / 1,500 rpm
Engine Model
CUMMINS B3.9C
Hydraulic System
Implement Circuit
350 kgf/cm²
Main Pumps Rated Flow
2x130 ℓ/min
Tank Capacity
Fuel Tank
270 ℓ
Hydraulic Tank
124 ℓ
Performance
Swing Speed
12.9 rpm
Travel Speed
30 km/h
Bucket Digging Force (ISO)
10,400 kgf
Arm Digging Force (ISO)
7,900 kgf
Max. Gradeability
35 deg
Dimensions
Wheelbase
2,600 mm
Overall Width
2,500 mm
Overall Height
3,140 mm
Overall Length
7,820 mm
Ground Clearance
397 mm
Operating Range
Arm Length
2,100 mm
Boom Length
4,600 mm
Min. Swing Radius
2,670 mm
Max. Digging Depth
4,850 mm
Max. Digging Reach
7,920 mm
Max. Digging Height
5,470 mm
Max. Dumping Height
6,040 mm
Tire
Rear Tires STD
9.0/20-14
Front Tires STD
9.0/20-14
- -These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog.
- -The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
