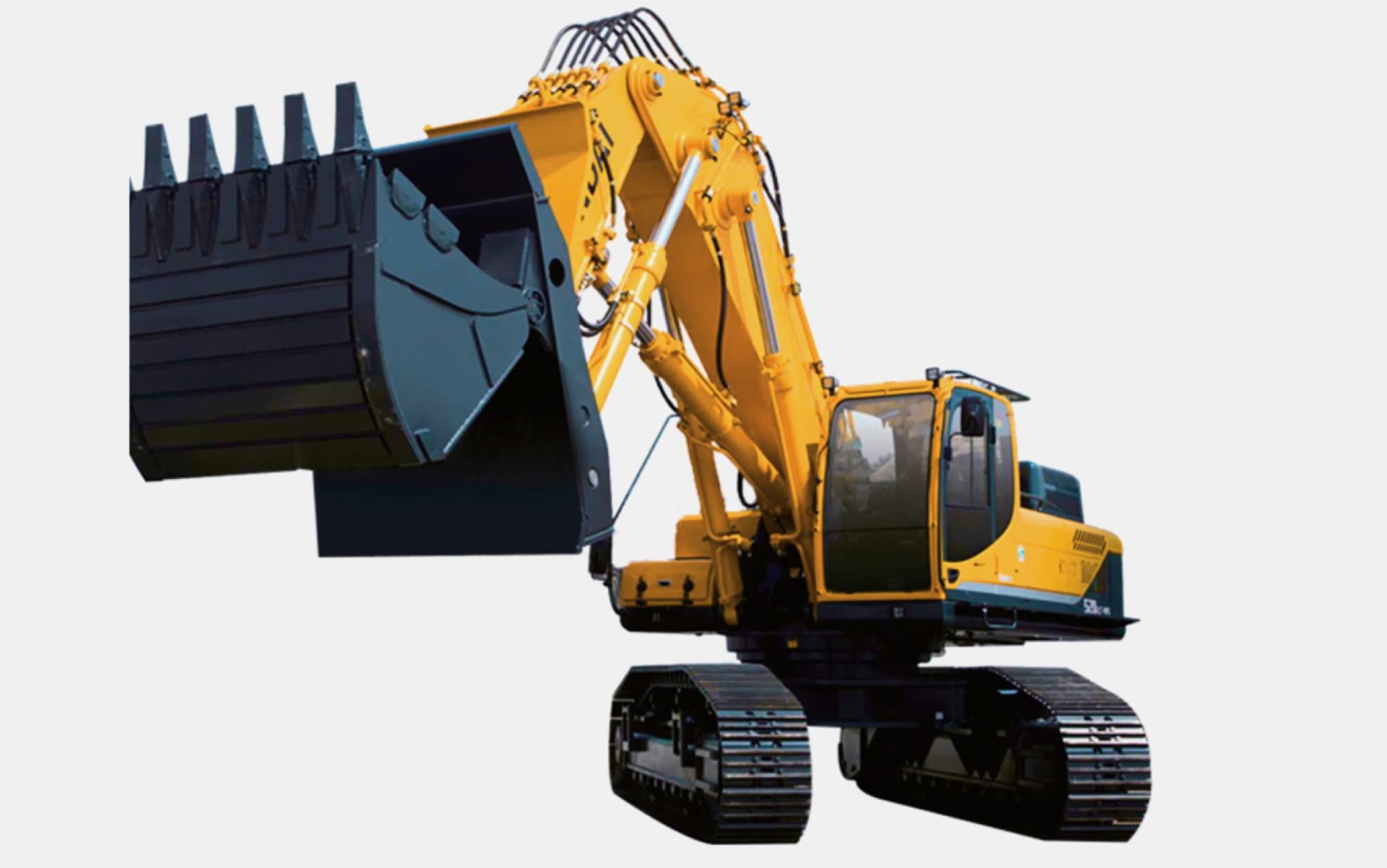

R520LC-9S FS
Type
Others
Operating Weight
55.5 ton
Emission
~TIER 2
Rated Power
342 hp / 1,900 rpm
Specifications
General
Operating Weight
55.5 ton
Rated Power
342 hp / 1900 rpm
Engine
Emission
~TIER 2
Max. Torque
183 kgf·m / 1,400 rpm
Engine Model
Cummins QSM11
Hydraulic System
Type
Others
Implement Circuit
330 kgf/cm²
Main Pumps Rated Flow
2x380 ℓ/min
Tank Capacity
Fuel Tank
621 ℓ
Hydraulic Tank
262 ℓ
Performance
Swing Speed
9 rpm
Travel Speed
5 km/h
Max. Gradeability
35 deg
Max. Traction Force
38,500 kgf
Dimensions
Overall Width
3,690 mm
Overall Height
3,540 mm
Overall Length
12,100 mm
Ground Clearance
770 mm
Tail Swing Radius
3,750 mm
Tumbler Distance
4,470 mm
Operating Range
Arm Length
2,800 mm
Boom Length
4,300 mm
Min. Swing Radius
4,910 mm
Max. Digging Depth
3,990 mm
Max. Digging Reach
8,920 mm
Max. Digging Height
10,100 mm
- -These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog.
- -The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
