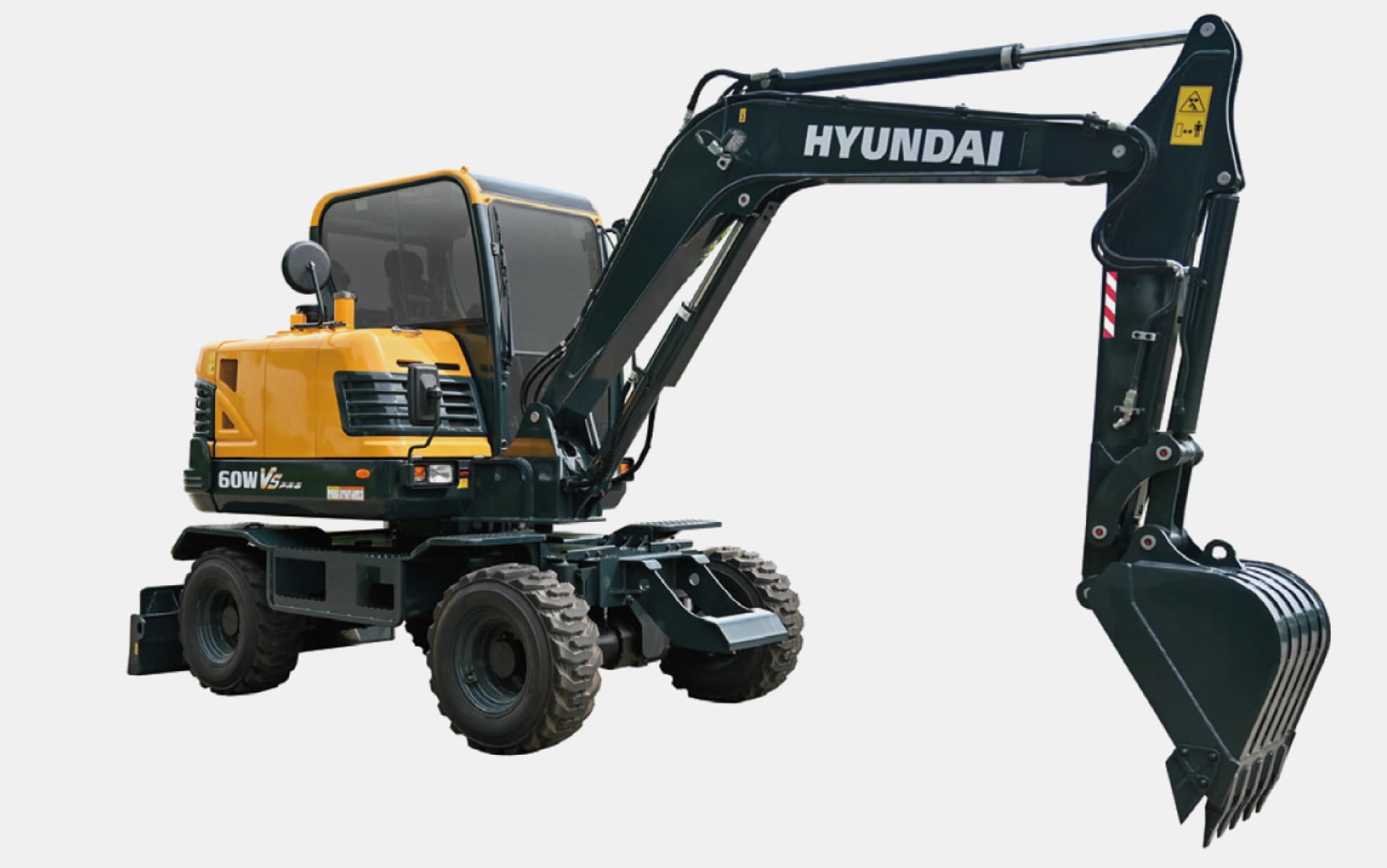

R60WVS PRO
Type
-
Operating Weight
5.75 ton
Emission
TIER 3
Rated Power
57 hp / 2,400 rpm
Specifications
General
Bucket Capacity
0.21 m³
Operating Weight
5.75 ton
Rated Power
57 hp / 2400 rpm
Engine
Emission
TIER 3
Max. Torque
20.6 kgf·m / 1,800 rpm
Engine Model
Yanmar 4TNV98-E
Hydraulic System
Implement Circuit
240 kgf/cm²
Main Pumps Rated Flow
170.4 ℓ/min
Tank Capacity
Fuel Tank
125 ℓ
Hydraulic Tank
70 ℓ
Performance
Swing Speed
10 rpm
Travel Speed
31 km/h
Bucket Digging Force (ISO)
4,330 kgf
Arm Digging Force (ISO)
3,260 kgf
Max. Gradeability
35 deg
Dimensions
Wheelbase
2,100 mm
Overall Width
1,930 mm
Overall Height
2,850 mm
Overall Length
6,100 mm
Ground Clearance
290 mm
Tail Swing Radius
1,650 mm
Operating Range
Arm Length
1,600 mm
Boom Length
3,000 mm
Min. Swing Radius
2,350 mm
Max. Digging Depth
3,500 mm
Max. Digging Reach
6,150 mm
Max. Digging Height
6,070 mm
Max. Dumping Height
4,340 mm
Tire
Rear Tires STD
12.0/16.5-12
Front Tires STD
12.0/16.5-12
- -These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog.
- -The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
