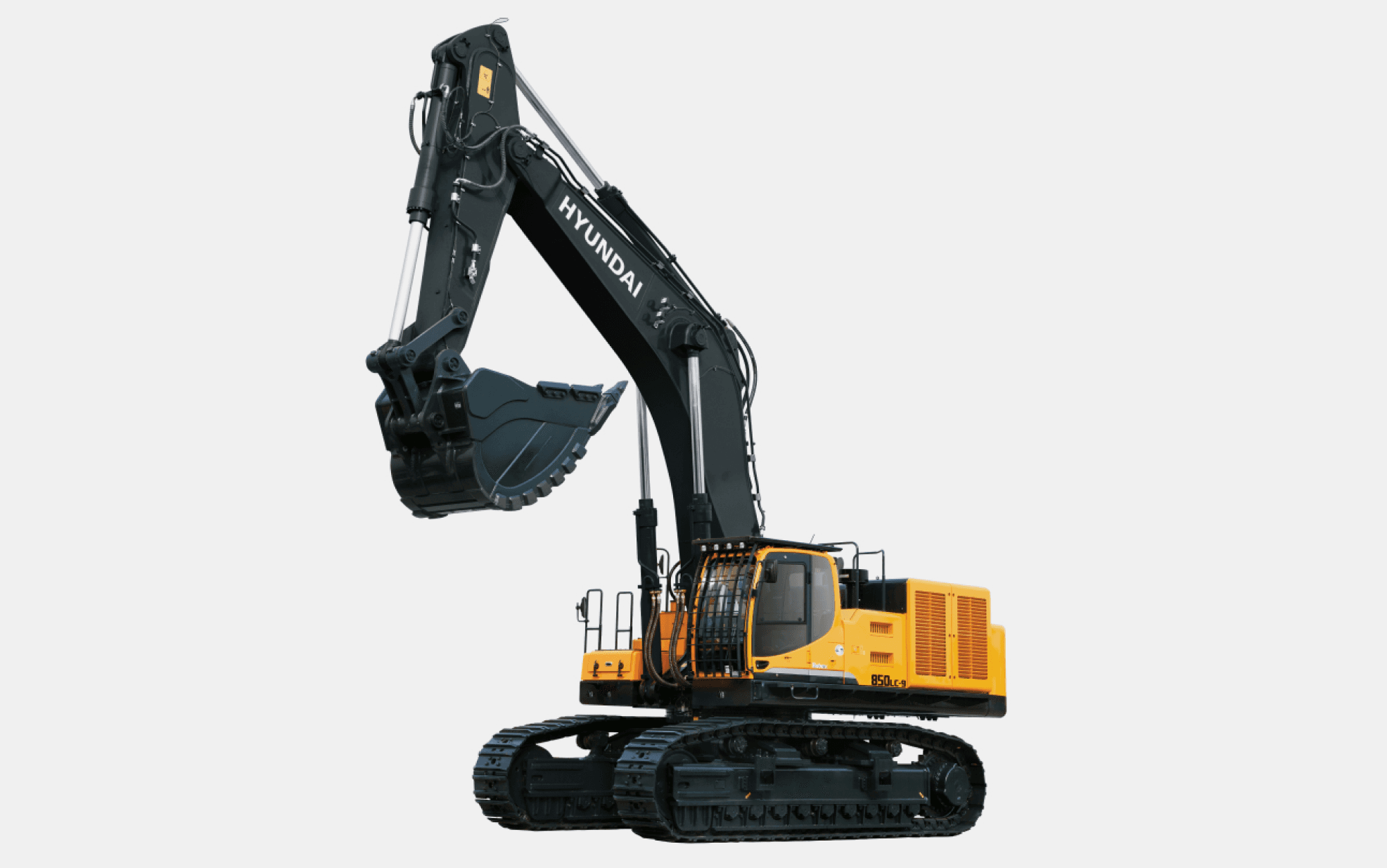

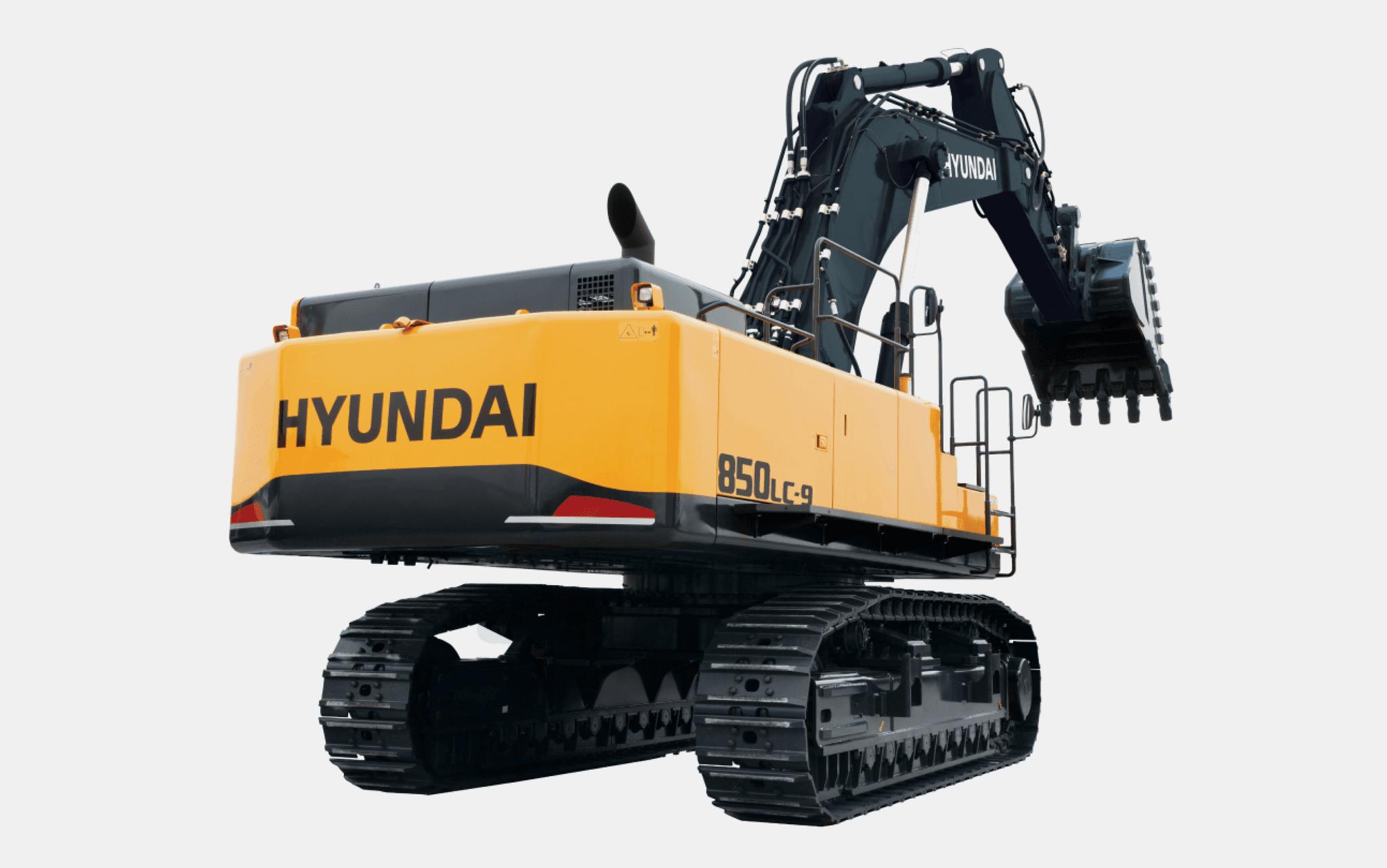

R850LC-9
Type
Large Excavators
Operating Weight
84 ton
Emission
TIER 3
Rated Power
510 hp / 1,800 rpm
Specifications
General
Bucket Capacity
5.2 m³
Operating Weight
84 ton
Rated Power
510 hp / 1800 rpm
Engine
Emission
TIER 3
Max. Torque
241 kgf·m / 1,400 rpm
Engine Model
CUMMINS QSX15
Hydraulic System
Implement Circuit
330 kgf/cm²
Main Pumps Rated Flow
2x504 ℓ/min
Tank Capacity
Fuel Tank
940 ℓ
Hydraulic Tank
450 ℓ
Performance
Swing Speed
6.2 rpm
Travel Speed
3.8 km/h
Bucket Digging Force (ISO)
49,300 kgf
Arm Digging Force (ISO)
37,100 kgf
Max. Gradeability
35 deg
Max. Traction Force
59,300 kgf
Dimensions
Overall Width
4,500 mm
Overall Height
5,040 mm
Overall Length
13,100 mm
Ground Clearance
880 mm
Tail Swing Radius
4,320 mm
Tumbler Distance
5,030 mm
Operating Range
Arm Length
2,950 mm
Boom Length
7,200 mm
Min. Swing Radius
5,120 mm
Max. Digging Depth
7,240 mm
Max. Digging Reach
12,300 mm
Max. Digging Height
11,800 mm
Max. Dumping Height
7,500 mm
- -These specifications are based on the "standard specifications" or "with certain optional equipment." For more detailed information, please refer to the product catalog.
- -The above specifications are subject to change without notice for quality improvement, and the illustrations and photos on this page may differ slightly from the actual product in terms of color.
